Wibe
Assembly tray W4 FZS White
ASSEMBLY TRAY W4-50 WHITE LENGTH 1,96M FZS
Article number: Suppl. article no:
1125123
736633
to see price and stock

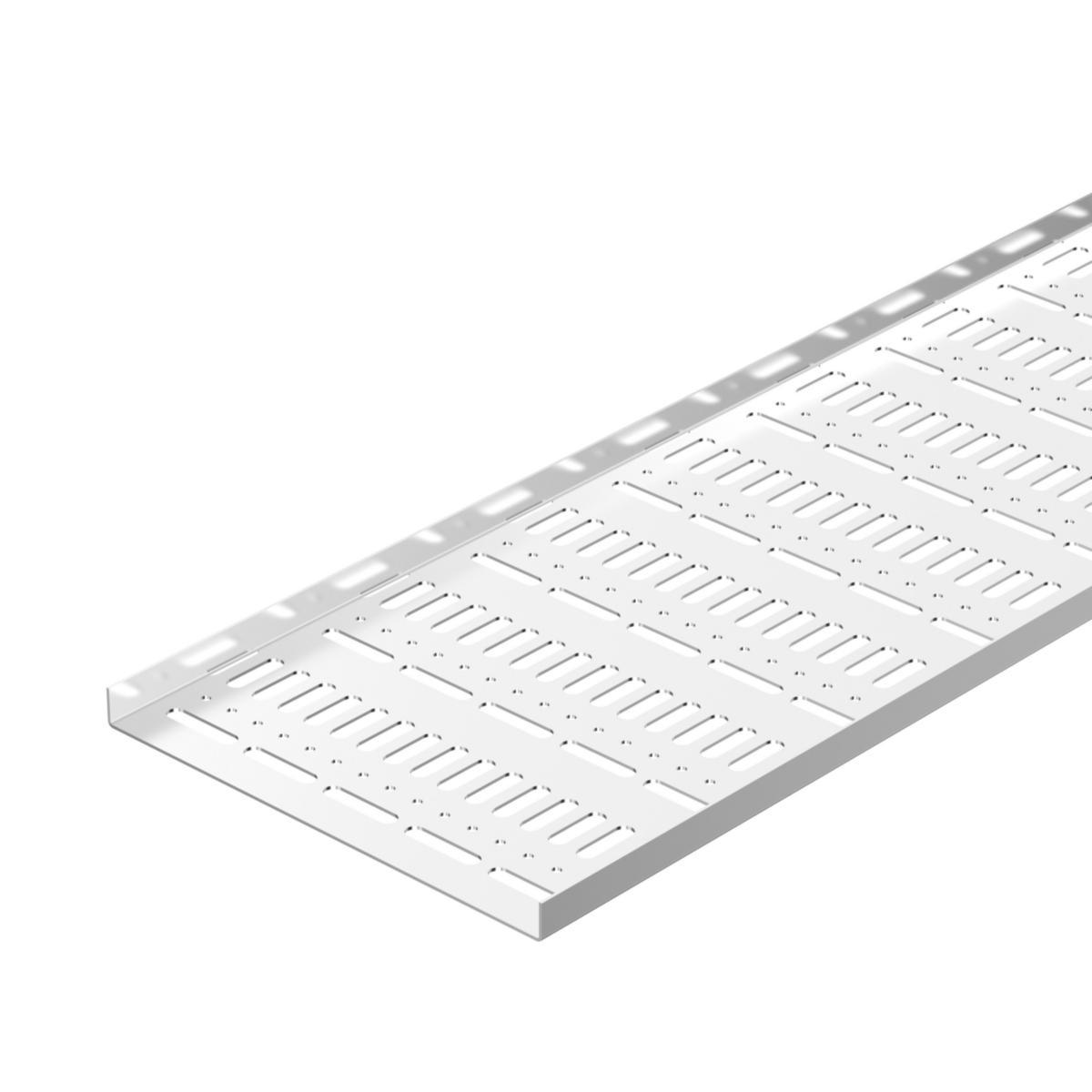

Perforated white mounting channel intended for indoor installations in dry environments, suitable for vertical wall mounting in industry, in elevator and fan rooms. The channel can also be used for horizontal mounting on a bracket. Holes Ø 3.5 mm in the bottom of the channel allow clamping of cables with sheet metal screws.
- Article number: 1125123
- Suppl. article no: 736633
- Ean no: 7321677366330
- Material class QC380A
Technical data
- Packagin Size: 1 ST/300 ST
- Type: WBE736633
- Corrosiveness class: C2
- Model: Without connector
- Bottom perforation: Yes
- Width: 50 mm
- Height: 15 mm
- Length: 1960 mm
- Surface protection: Continuously galvanised and coated
- Material: Steel
- Material quality: Other
- Colour: White
- With cover: No
- Material thickness: 1 mm
- RAL-number: 9010
- Stainless steel, pickled: No
- Side perforation: No
- Suitable for circuit integrity: No
- NATO-mounting holes: Yes
- Product series: Wibe
- Usable cross section: 750 mm²
- REACH Date: 2020-06-25
- REACH Information obligation: No
