Mounting profile MP-MK Z4 - MOUNTING PROFILE MP-MK Z4 2M 100MM
/external-assets/JPEGlarge800_800/66/61/ProductImage35426661.jpg
/external-assets/JPEGlarge800_800/66/62/ProductImage35426662.jpg
/external-assets/JPEGlarge800_800/04/98/ProductImage35420498.jpg
MP bolagen

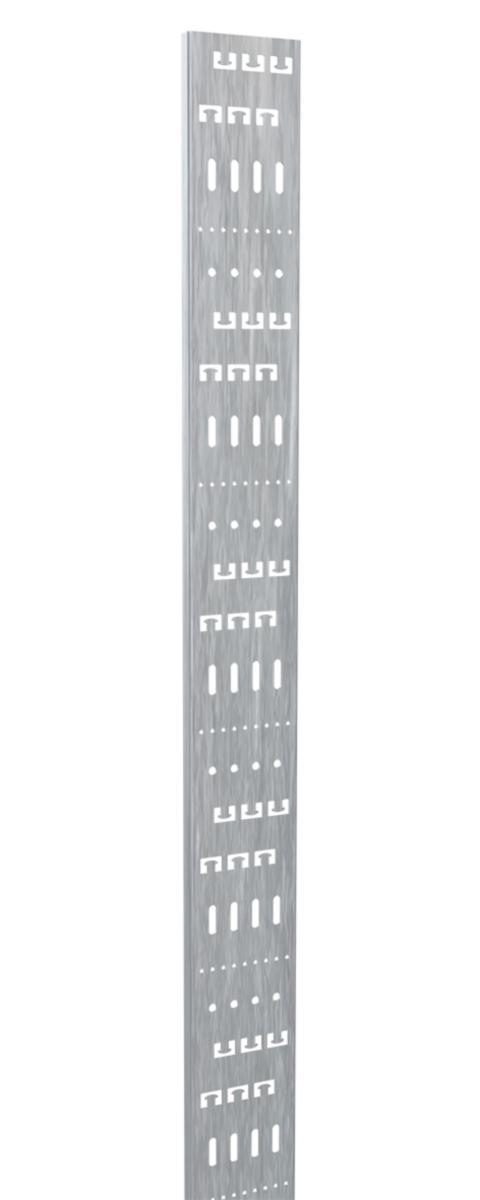

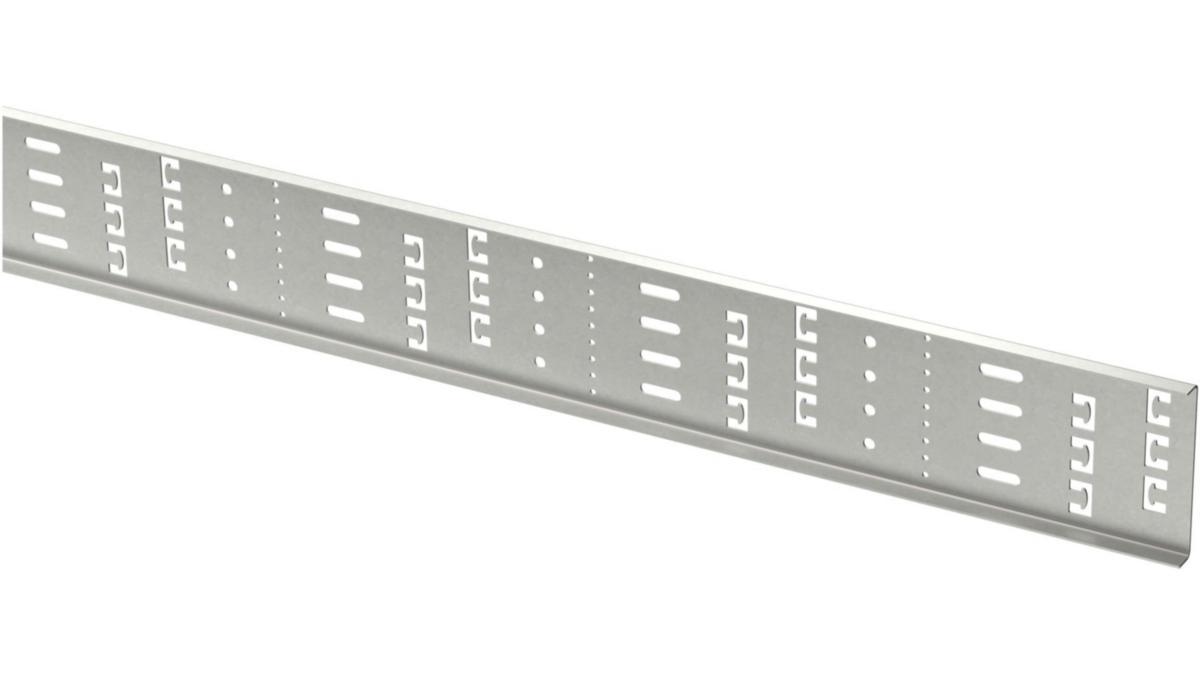

Mounting profile MP-MK Z4

MOUNTING PROFILE MP-MK Z4 2M 100MM
Article number:
1116033
Suppl. article no:
823AZ
‌
‌
‌
‌
‌
 to see price and stock
Environmental Management CouncilEnvironmental product declarationByggvarubedomning: Rekommenderas
Mounting profile equipped with "mushrooms" that you can quickly hook cable ties or tie wire around. The holes are 25 mm c/c laterally, because the second row is offset, cables 12.5 mm c/c can be clamped. It is common knowledge that hot-dip galvanized products can sit outdoors, but with respect to the environment, the manufacturing process is not gentle. This entails transport to and from the facility for hot-dip galvanizing after manufacturing. MP-Bolagen has developed a new material called Z4. The plate is finished from the steel mill and self-heals, for example, after drilling. The surface treatment corresponds to a minimum of 85 μm, compared to a traditional hot-dip galvanized product which is normally a maximum of 60 μm. Some accessories cannot be manufactured in Z4 depending on material thickness, so you have to choose hot-dip galvanized.
  • Article number:
    1116033
  • Suppl. article no:
    823AZ
  • Ean no:
    7394333042893
  • Material class
    QC190B
Technical data
  • Packagin Size: 1 PCS/6 PCS/90 PCS
  • Type: MP-823AZ
  • Corrosiveness class: C4
  • Model: Without connector
  • Bottom perforation: Yes
  • Width: 100 mm
  • Height: 14 mm
  • Length: 2000 mm
  • Surface protection: Continuously galvanised zinc-magnesium
  • Material: Steel
  • Material quality: Other
  • With cover: No
  • Material thickness: 1.25 mm
  • Side perforation: No
  • Suitable for circuit integrity: No
  • NATO-mounting holes: Yes
  • Working length: 2000 mm
  • Weight: 1.08 kg/m
  • Usable cross section: 1194 mm²
  • REACH Date: 2021-06-17
  • REACH Information obligation: No
