Elko
Display thermostat Plus
PLUS DISPL THERMOSTAT 3200 BLA 14A, 230VAC, 50HZ
Article number: Suppl. article no:
8581882
EKO04996
to see price and stock

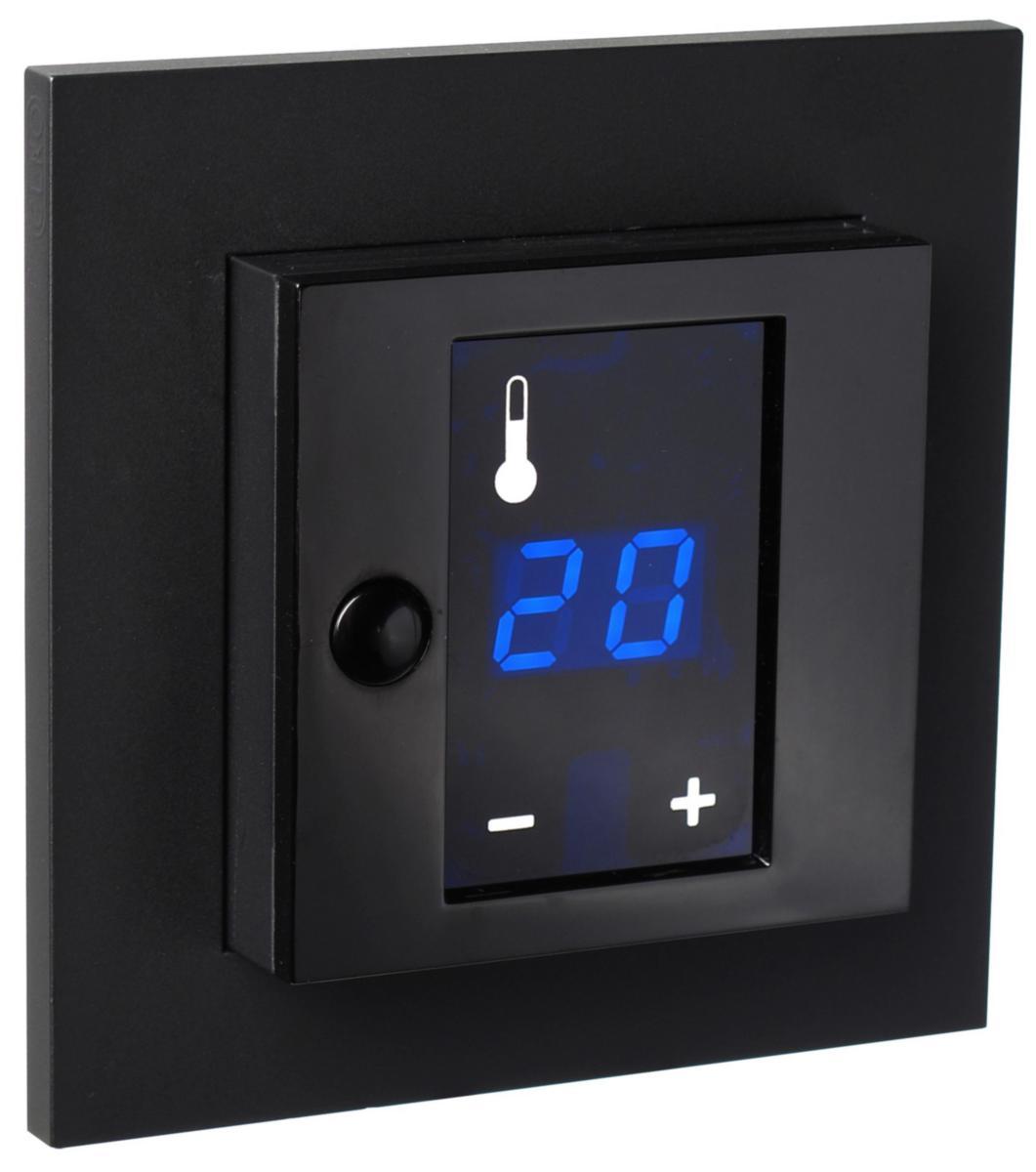

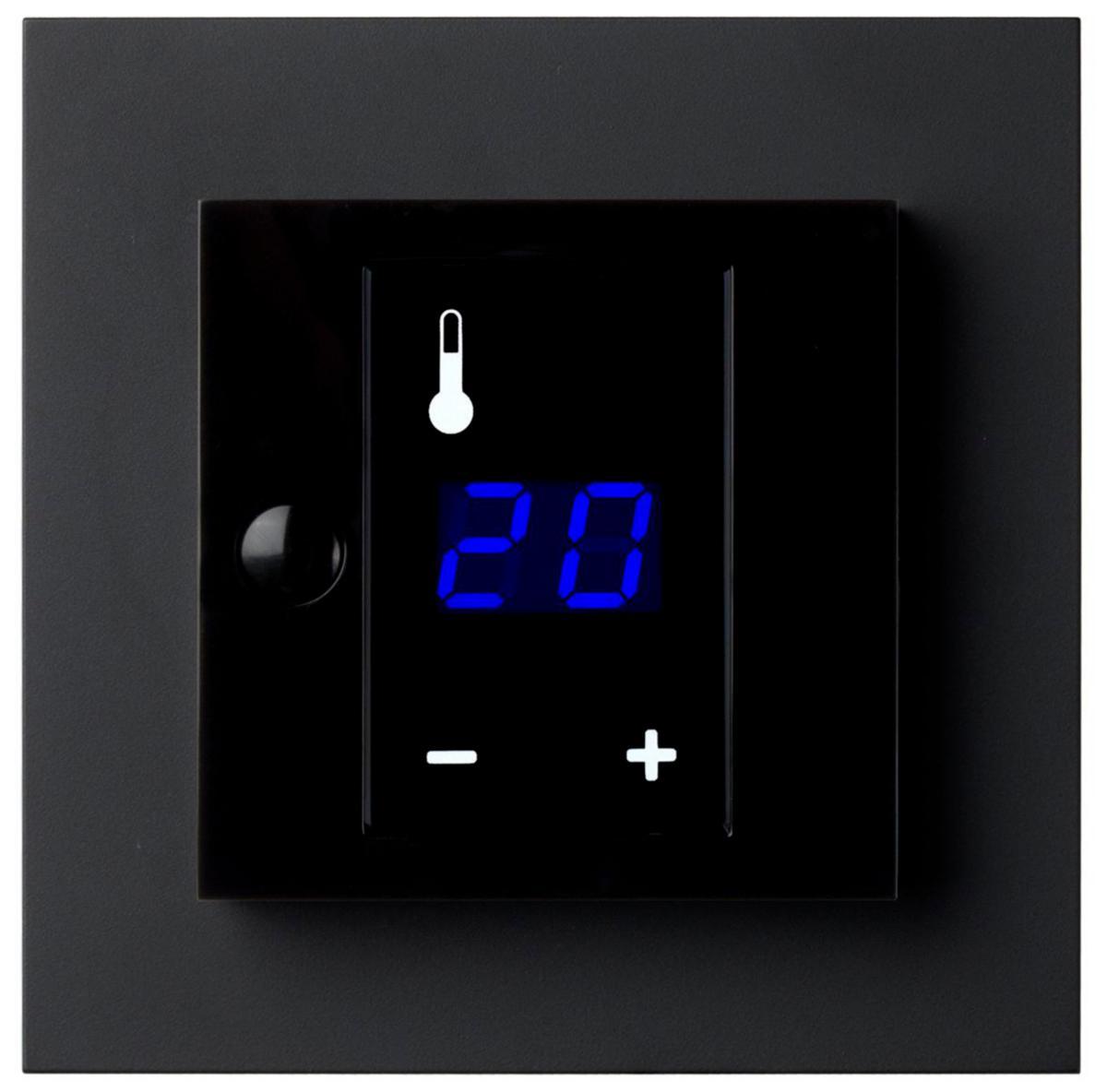

Display thermostat PLUS, 3600W with touch display. Choose between control with floor sensor or room sensor. Built-in frost protection or limitation of floor sensor (max. 27 degrees). The mounting depth is 25mm and fits in a standard device box and together with all Elko combination frames. Also for surface mounting with extension frame. Simple connection with separate input for control of night setback (4 ° C) and frost protection. The thermostat requires connection of both zero and phase.
- Article number: 8581882
- Suppl. article no: EKO04996
- Ean no: 7020160499608
- Material class QX262B
Technical data
- Packagin Size: 1 ST/5 ST/480 ST
- Measuring range: 5-35 °C
- Operation: Button
- Concealed operation: No
- Mounting method: Flush-mounted
- Colour: Black
- RAL-number: 9005
- Connection: 2-wire
- Number of heater outputs: 1
- Number of cooler outputs: 0
- Degree of protection (IP): IP20
- Model: On/Off
- Sensor/feeler type: Resistance sensor
- Type of power supply: 230 V AC
- Differential value: 0-5 K
- Temperature readable: Yes
- Adjustable differential: No
- With display: Yes
- With receiver: No
- External sensor: No
- Thermal feedback: Series
- Control characteristic: Other
- Suitable for heating: Yes
- Width: 86 mm
- Height: 86 mm
- Depth: 48 mm
- Explosion-proof: No
- Max. contact load: 16 A
- Max. contact voltage: 230 V
- With sound indicator: No
- With tap water circuit: No
- Degree of protection (NEMA): Other
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Suitable for cooling: No
- IFTTT support available: No
- Number of modules (module system): 1
- Suitable for heating: Yes
- Product series: Plus
- REACH Date: 2023-12-31
- REACH Information obligation: No
