Raychem
Thermostat, Digital, R-NRG-DM/W
R-NRG-DM/W
Article number: Suppl. article no:
8581508
2000006193
to see price and stock

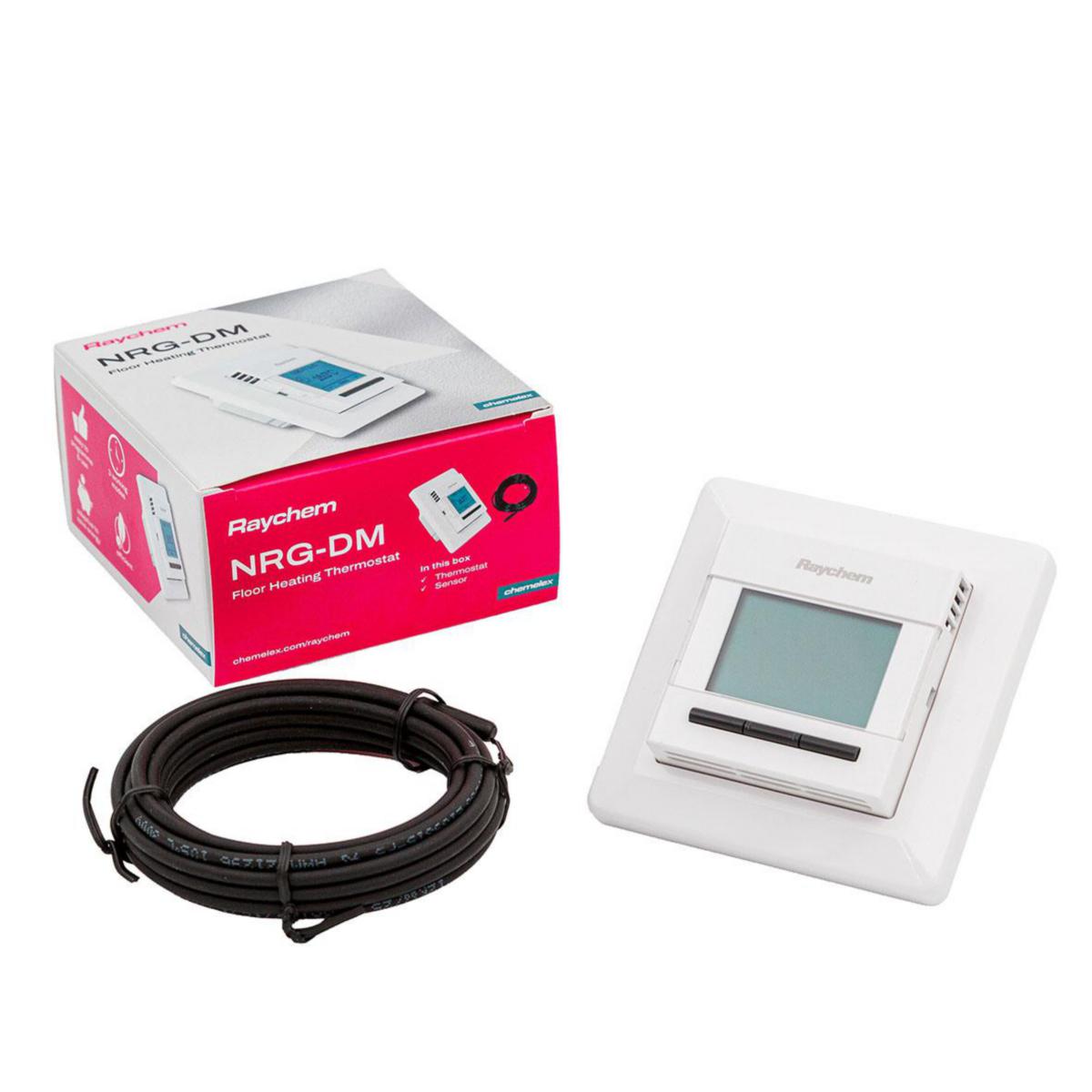

NRG-DM is an electronic clock thermostat for electric floor heating. Large, clear 1.8" display. Easy navigation and guided setup. Preprogrammed time and date. Installation depth 20 mm. Adaptive function. Compatible with Exxact, Elko, Eljo, and B&J. Flexible selection of floor sensors: 2–30 kOhm. 2-pole power switch. Control modes: floor sensor, room sensor, or a combination of room and floor sensors acting as a limiter or controller. 3 m sensor cable.
Supplied with Exxact-type front panel and frame, as well as extra white center plates adapted for Elko and Eljo/BJ types. Meets Ecodesign requirements.
Supplied with Exxact-type front panel and frame, as well as extra white center plates adapted for Elko and Eljo/BJ types. Meets Ecodesign requirements.
- Article number: 8581508
- Suppl. article no: 2000006193
- Ean no: 5414506026177
- Material class QX2400
Technical data
- Type: R-NRG-DM/W
- Colour: White
- RAL-number: 9010
- Adaptive (self-learning): Yes
- Suitable for cooling: No
- External sensor: Yes
- Height: 84 mm
- Suitable for district heating control: No
- Depth: 40 mm
- Remote operation possible: No
- Width: 84 mm
- Suitable for floor heating control: Yes
- With presence perception: No
- Measuring range: 5-40 °C
- Number of switching programmes: 2
- Connection: 2-wire
- Temperature readable: Yes
- Suitable for heating: Yes
- Control characteristic: PI
- Adjustable differential: No
- Ventilation: No
- Max. contact load: 13 A
- Sensor/feeler type: Resistance sensor
- Operation: Button
- Weather-dependent control system: No
- Degree of protection (IP): IP21
- Max. contact voltage: 230 V
- Type of clock: Week clock
- With tap water circuit: No
- With display: Yes
- Clock model: Digital
- Standby power consumption (solstandby): 0.4 W
- Number of heater outputs: 1
- With receiver: No
- With thermal feedback: Yes
- Differential value: 0.2 K
- Type of power supply: 230 V
- Optimisation: No
- Overtime switch: No
- Regulation type modulating: No
- Regulation type on/off: Yes
- REACH Date: 2026-03-30
- REACH Information obligation: No
