Schneider Electric

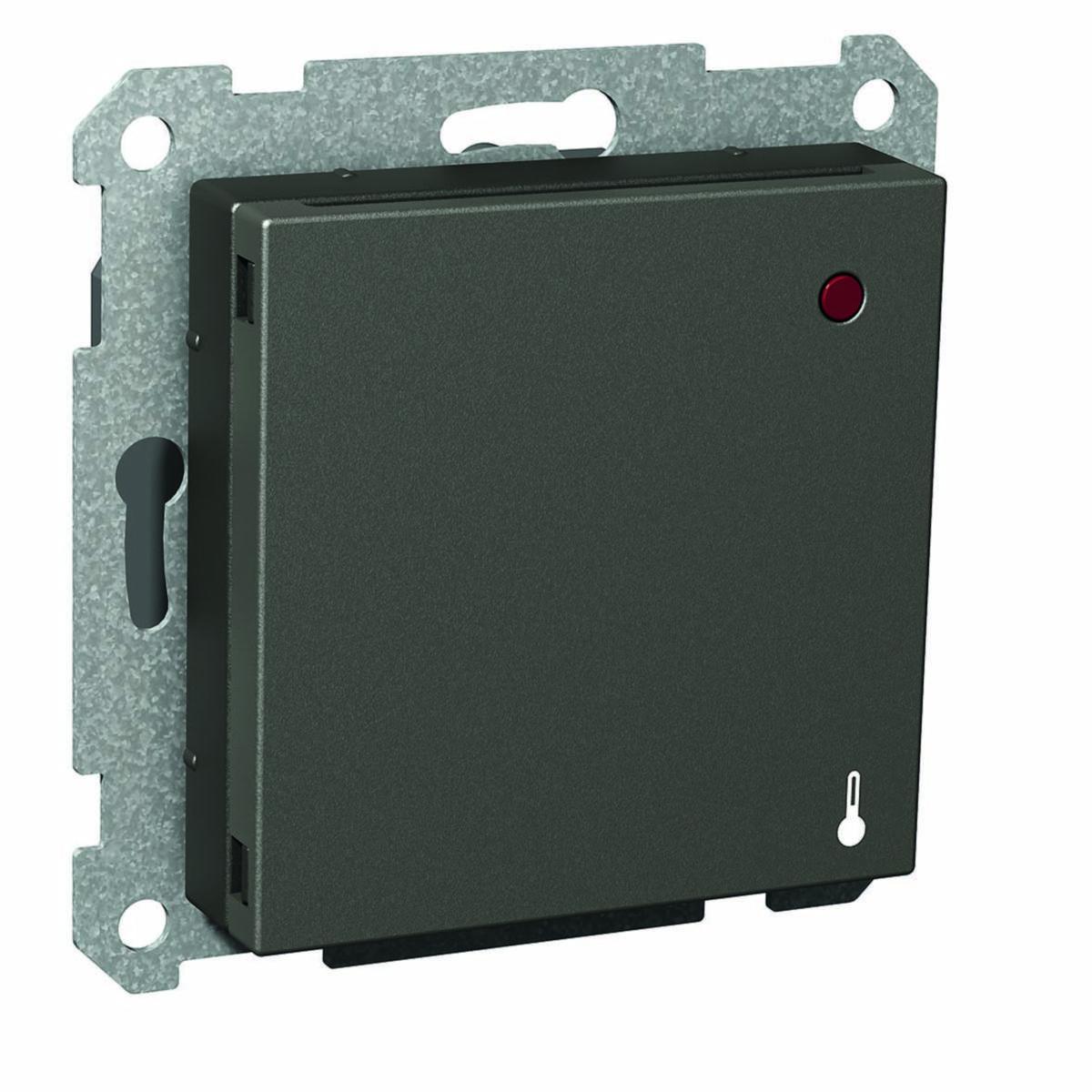

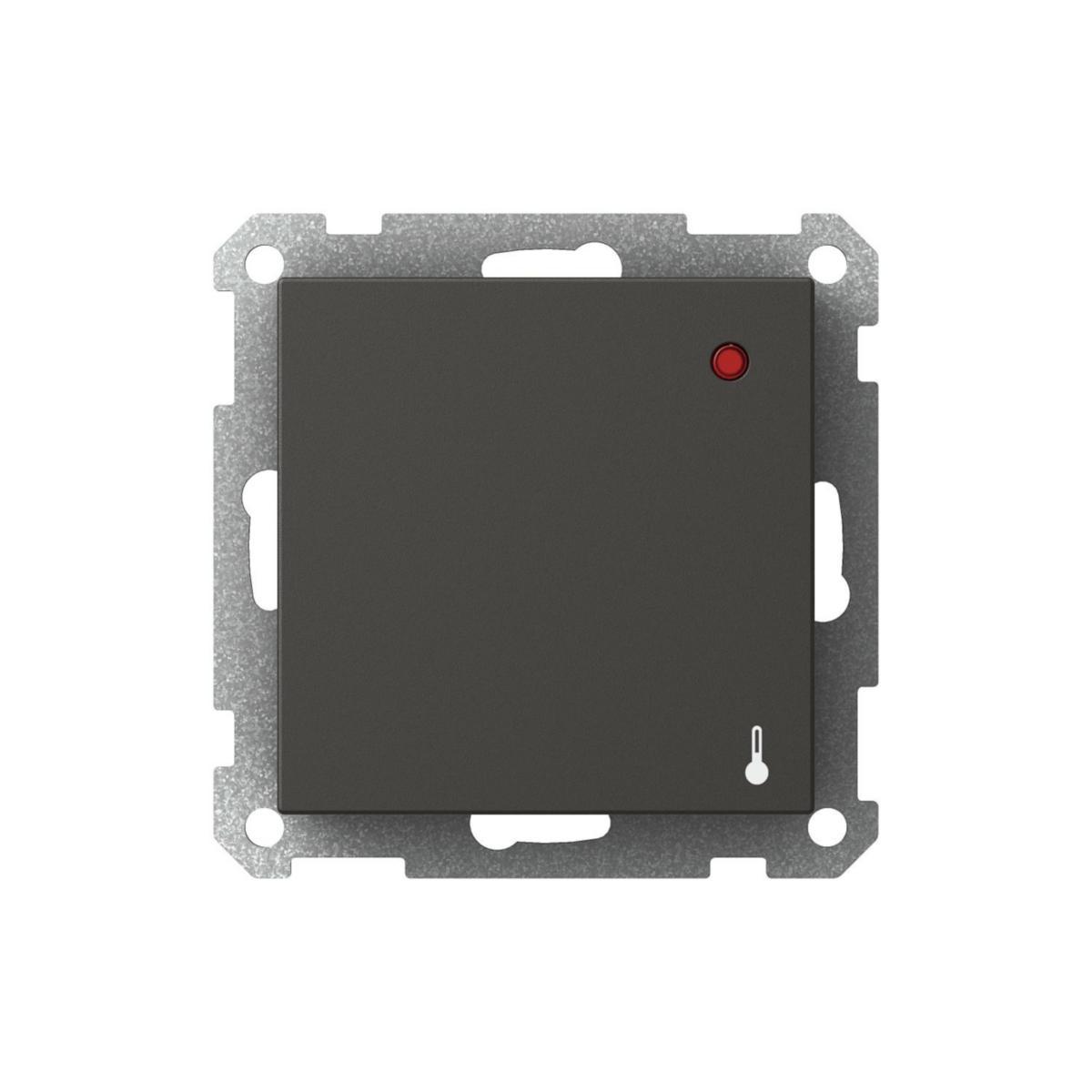

Electronic floor thermostat 2-pole. Anthracite
THERMOST FLOOR HEAT ANT EXXACT
Article number: Suppl. article no:
8580391
WDE003481
to see price and stock
Exxact Electronic floor thermostat 2-pole. LED indicating green = operation, red = active, 1 ° C sensitivity including four meter sensor. For inf mounting in device box c / c 60mm. For external mounting, a 35mm box is used. Supplemented with optional Exxact frame.
- Article number: 8580391
- Suppl. article no: WDE003481
- Ean no: 3606480205095
- Material class QX260B
Technical data
- Packagin Size: 1 PCS/10 PCS/1200 PCS
- Type: WDE003481
- Operation: Button
- Mounting method: Flush-mounted
- Colour: Grey
- RAL-number: 7021
- Number of heater outputs: 1
- Number of cooler outputs: 0
- Degree of protection (IP): IP20
- Model: On/Off
- Sensor/feeler type: Resistance sensor
- Type of power supply: 230 V AC
- Differential value: 1 K
- Temperature readable: No
- Adjustable differential: No
- With display: No
- With receiver: No
- External sensor: Yes
- Thermal feedback: None
- Control characteristic: PI
- Suitable for heating: Yes
- Width: 71 mm
- Height: 71 mm
- Depth: 17 mm
- Diameter: 71 mm
- Standby power consumption (solstandby): 0 W
- Explosion-proof: No
- Class of the temperature control: I
- Max. contact load: 16 A
- Max. contact voltage: 230 V
- With sound indicator: No
- With tap water circuit: No
- Degree of protection (NEMA): 1
- Suitable for cooling: No
- Number of modules (module system): 2
- Suitable for heating: Yes
- Product series: Exxact
- REACH Date: 2025-07-18
- REACH contains candidate substances: Bly | Boroxid, Diboron trioxide | Lead oxide, Blyoxid, Blymonoxid, C.I. Pigment Yellow 46 , C.I. 77577, Litharge, Lead(II) oxide | Titanat, bly
- REACH Information obligation: Yes
