Frico
Carboninfra, IHC-series

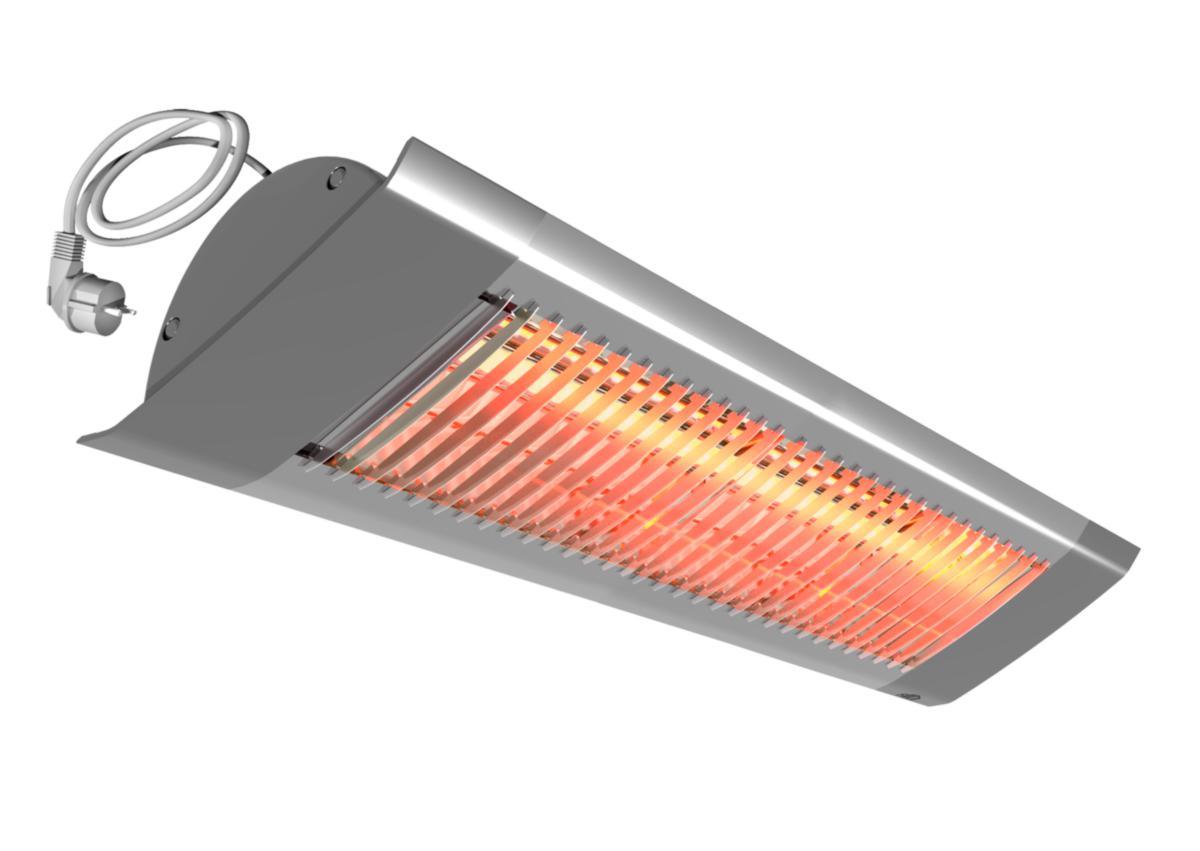

INFRARED HEATER IHC 0
Article number: Suppl. article no:
8570008E
19604
to see price and stock
For soft and efficient heat. Carboninfra IHC provides a soft and direct heat that, together with the pleasant glow, fits well in outdoor environments where design is important. IHC has a heat spread that makes it suitable for close and slightly higher installation heights.
• Max. filament temperature 1200°C
• Intense carbon lamp, yellow-orange glow, and polished reflector for optimal heat distribution.
• Recommended installation height 1.8 - 3 m
• IP44
• Max. filament temperature 1200°C
• Intense carbon lamp, yellow-orange glow, and polished reflector for optimal heat distribution.
• Recommended installation height 1.8 - 3 m
• IP44
- Article number: 8570008E
- Suppl. article no: 19604
- Ean no: 7393410005837
- Material class QX1600
Technical data
- Type: IHC18
- Max. heating power: 1800 W
- Min. heating power: 1800 W
- Voltage: 220-230 V
- Height: 77 mm
- Width: 676 mm
- Depth: 169 mm
- Degree of protection (IP): IPX4
- Model: Ceiling-/wall emitter
- Power step OFF: No
- Number of heating levels: 1
- Mounting over cradle: No
- Length: 676 mm
- Weight: 2.5 kg
- Height: 169 mm
- Output: 1.75 kW
- REACH Date: 2021-07-20
- Deep: 77 mm
- GWP-tot (A1-A3): 22,1528 kgCO2e/ST
- Design: Max. elementtemperatur 1200 °C
- REACH Information obligation: No
- Protection class: IPX4
- Voltage: 230 V
