Pax
Outer wall grille
EXTER. WALL GRATING Ø100 WHITE 0
Article number: Suppl. article no:
9302304
8156-1
to see price and stock

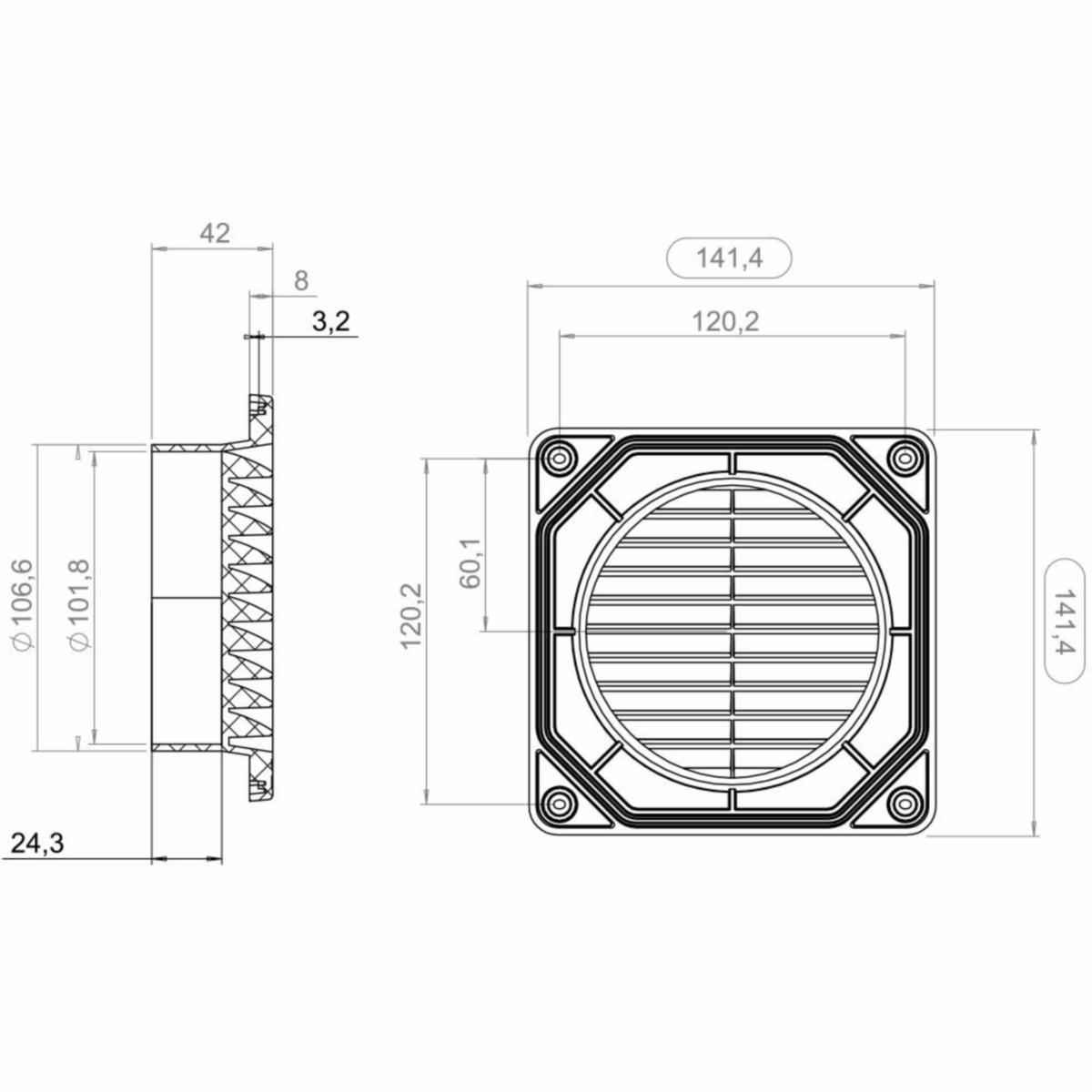

The outer wall grille is fitted on the house facade and fits PAX fans, vents and wall pipes/spiro with Ø 100 mm connection. Recommended wall hole-cutting measurement is Ø 110 mm. To be completed with PAX wind breaker hood when the grille is installed in windy environments.
- Article number: 9302304
- Suppl. article no: 8156-1
- Ean no: 7391477815611
- Material class QX7600
Technical data
- Packagin Size: 1 ST/20 ST
- Nominal duct diameter: 100 mm
- Front height: 141 mm
- Colour: White
- Motor-controlled: No
- Material: Plastic
- Lockable: No
- With bird wire: No
- With built-in window: Yes
- With insect netting: No
- With synchronised rotating valve section: No
- With contrarotating valve section: No
- With pressure relief suction valve: No
- With pressure relief blow-out valve: No
- REACH Date: 2021-09-10
- Built-in depth: 32 mm
- Type: Pax 100
- Surface protection: Untreated
- REACH Information obligation: No
- Shape: Square
