Eurolan

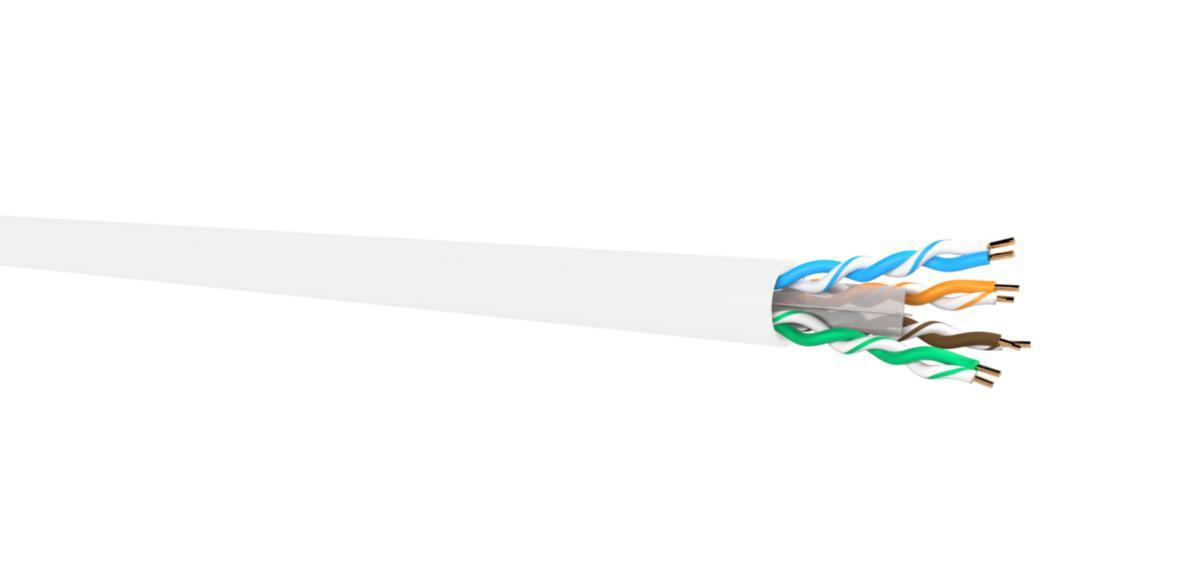

Data cable C6A UTP White Slim LSZH DCA
C6A UTP WT LSZH SLIM DCA
Article number: Suppl. article no:
4902240
19D-UA-25WT-0
to see price and stock
Eurolan Slimline C6A unshielded U/UTP Dca is a halogen-free distribution network cable designed for broadband installations. With its thin diameter of 6.0mm, it is possible to lay two cables in a 16-core pipe. The cable is verified for high-speed applications up to 500 MHz (10Gbit Ethernet). Meets the requirements of EN 50173-1 Class EA, ISO/IEC 11801 2nd ed, IEC 61156-5 and 50288-11-1.
- Article number: 4902240
- Suppl. article no: 19D-UA-25WT-0
- Ean no: 7333089018967
- Material class QR2600
Technical data
- Number of cores: 8
- Nominal cross section conductor: 0.258 mm²
- Number of stranding elements: 4
- Diameter conductor: 0.55 mm
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Cable type: U/UTP
- Category: 6A (TIA)
- Screen over stranding: None
- Stranding element: Pairs
- Screen over stranding element: None
- Cable geometry: Round
- Colour outer sheath: White
- Conductor category: Class 1 = solid
- Suitable for underground installation: No
- Radial water blocking cable: No
- Longitudinal water blocking cable: No
- Outer diameter approximate: 6 mm
- Armouring/reinforcement: None
- AWG size: 23
- Segregation class according to EN 50174-2: B
- Protective sheath: Other
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Permitted cable outer temperature after assembling without vibration: -20-60 °C
- Permitted cable outer temperature during assembling/handling: -20-60 °C
- Halogen free according to EN IEC 60754-2: Yes
- Low smoke according to EN IEC 61034-2: Yes
- Core identification according to HD 308 S2: No
- Core identification: Colour + rings
- Conductor surface: Bare
- Conductor material: Copper
- Material core insulation: Other
- Material outer sheath: Other
- Min. permitted bending radius, moving application/free movement: 48 mm
- Min. permitted bending radius, moving application with forced guidance: 48 mm
- Min. permitted bending radius, stationary application/permanent installation: 48 mm
- NVP value: 67 %
- Oil resistant according to EN IEC 60811-404: No
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Specification core insulation: Polyethylene (PE)
- Specification material outer sheath: Other
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- Stranding: Other
- Suitable as computer data cable: Yes
- Suitable as signalling cable: Yes
- Suitable as telephone cable: Yes
- Certified for shipboard application: No
- Weight: 43 kg/km
- Compatible with Grade2TV according to XP-C 90-483: No
- Compatible with Grade3TV according to XP-C 90-483: No
- Number of sheath layers: 1
- Drain wire: No
- Cable width approximate: 6 mm
- Duplex: No
- Circuit integrity according to DIN 4102-12: E30
- Circuit integrity according to IEC 60331-23: No
- Flame retardant according to IEC 60332-1-2: Yes
- Flame retardant according to IEC 60332-3-21 (Cat A F/R): No
- Flame retardant according to IEC 60332-3-22 (Cat A): No
- Flame retardant according to IEC 60332-3-23 (Cat B): No
- Flame retardant according to IEC 60332-3-24 (Cat C): No
- Flame retardant according to IEC 60332-3-25 (Cat D): No
- Halogen free according to EN IEC 60754-1: Yes
- Halogen free according to EN IEC 60754-3: No
- Cable height approximate: 6 mm
- Characteristic impedance: 100 Ohm
- Suitable for use as security alarm cable: Yes
- With rodent protection: No
- With rip cord: No
- Nominal voltage U: 72 V
- REACH Date: 2025-11-11
- REACH Information obligation: No
