Schneider Electric

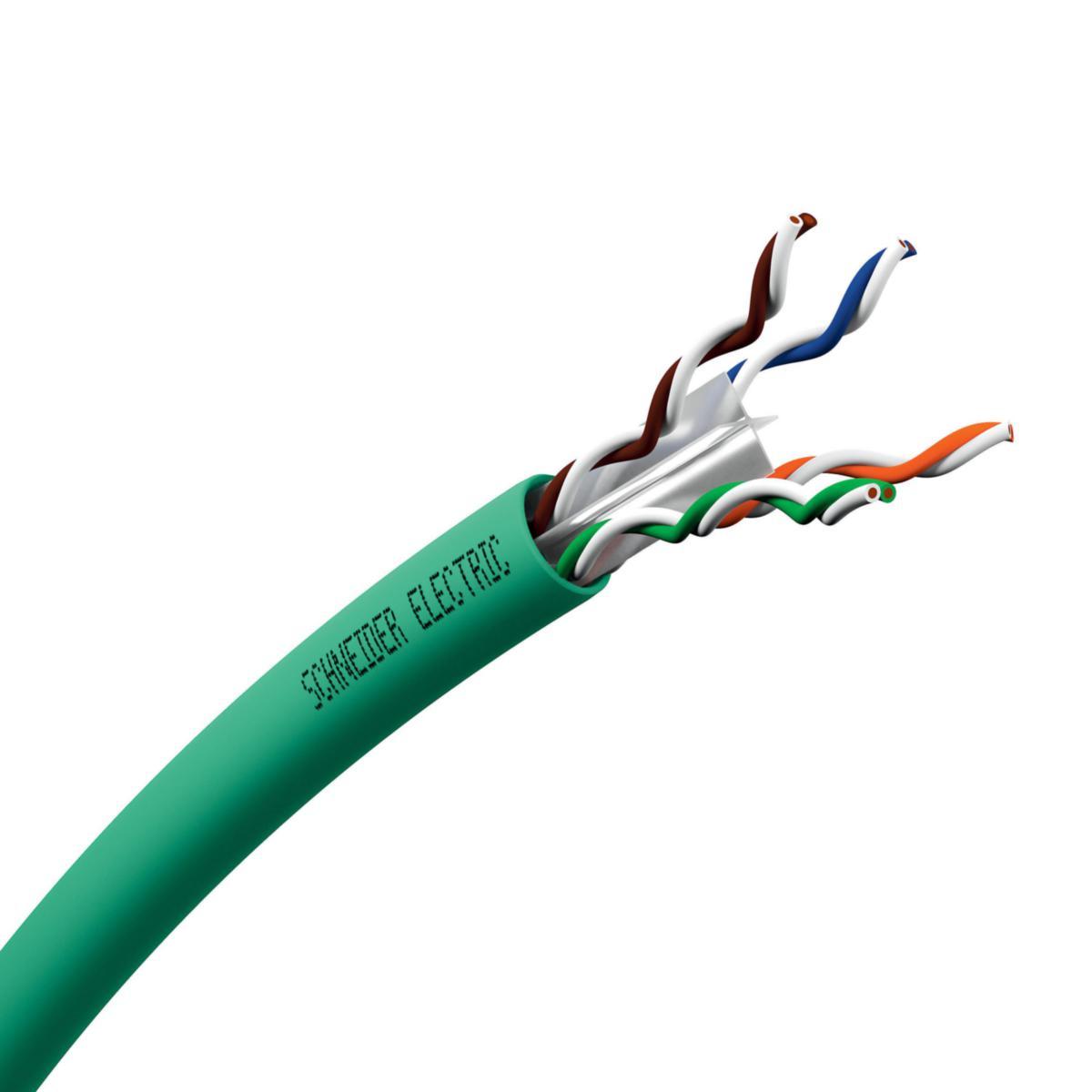

Data cable Actassi C6 U / UTP Slim
CAT6 U/UTP 4P DCA GREEN D500 (*0)
Article number: Suppl. article no:
4933475
VDICD116218GHD
to see price and stock
Unshielded Kat6 U-UTP data cable 4xAWG24 slim for indoor use in distribution networks. The cable is delivered with a green halogen-free outer sheath Dca and a meter mark printed on the cable
- Article number: 4933475
- Suppl. article no: VDICD116218GHD
- Ean no: 3606482004511
- Material class QR2451
Technical data
- Packagin Size: 500 M
- Cable type: U/UTP
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Category: 6
- Outer diameter approximate: 5.5 mm
- Screen over stranding element: None
- Screen over stranding: None
- Colour outer sheath: Green
- Segregation class according to EN 50174-2: B
- Low smoke according to EN IEC 61034-2: Yes
- AWG size: 24
- Halogen free according to EN IEC 60754-1: Yes
- Halogen free according to EN IEC 60754-2: Yes
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- Conductor category: Class 1 = solid
- Conductor material: Copper
- Core identification: Colour + rings
- Specification core insulation: Polyethylene (PE)
- Diameter conductor: 0.54 mm
- Nominal cross section conductor: 0.23 mm²
- Conductor surface: Bare
- Number of cores: 8
- Circuit integrity: None
- Cable geometry: Round
- Number of stranding elements: 4
- Permitted cable outer temperature after assembling without vibration: -20-60 °C
- Suitable for underground installation: No
- Max. tensile strength during installation: 0.1 kN
- Characteristic impedance: 100 Ohm
- NVP value: 68 %
- Weight: 37 kg/km
- Flame retardant according to IEC 60332-1-2: Yes
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Stranding element: Pairs
- Min. permitted bending radius, stationary application/permanent installation: 22 mm
- Longitudinal water blocking cable: No
- Radial water blocking cable: No
- Permitted cable outer temperature during assembling/handling: 0-50 °C
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Certified for shipboard application: No
- Suitable as computer data cable: Yes
- Product series: Actassi
- Material outer sheath: Other
- Specification material outer sheath: Other
- Oil resistant according to EN IEC 60811-404: No
- REACH Date: 2025-07-18
- REACH Information obligation: No
