Elko
Data cable TCS U/UTP with X C6 Dcas2d2a2, Elko
CABEL U/UTP C6 MED X 500 EKO01742
Article number: Suppl. article no:
4932015
EKO01742
to see price and stock

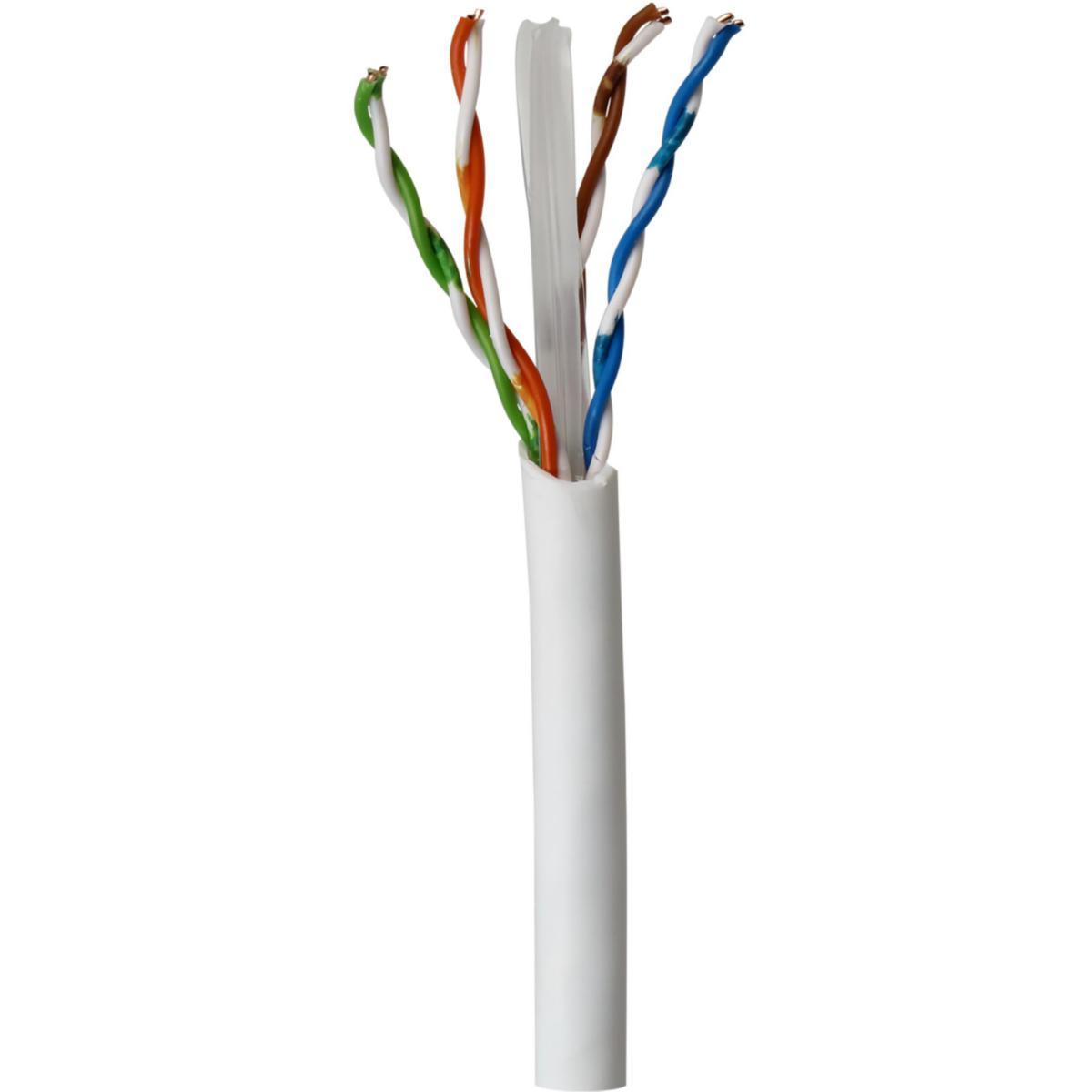

Cable U / UTP C6 with cross. Unshielded 4-pair cable with plastic cross, bandwidth up to 250 MHz designed according to SS-EN 50 173 series. The cable is halogen-free and intended for structured cabling indoors. Included in TCS warranty system. Color white with meter marking. Bending radius during installation 8 times the diameter of the cable, permanently installed 4 times the diameter of the cable.
- Article number: 4932015
- Suppl. article no: EKO01742
- Ean no: 7020160174208
- Material class QR2251
Technical data
- Packagin Size: 500 M/6000 M
- Number of cores: 8
- Diameter conductor: 0.57 mm
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Category: 6
- Screen over stranding: None
- Stranding element: No
- Screen over stranding element: None
- Colour outer sheath: White
- Conductor category: Class 1 = solid
- Suitable for underground installation: No
- Radial water blocking cable: No
- Longitudinal water blocking cable: No
- Outer diameter approximate: 6 mm
- Armouring/reinforcement: None
- AWG size: 23
- Protective sheath: None
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Halogen free according to EN IEC 60754-2: Yes
- Low smoke according to EN IEC 61034-2: Yes
- Core identification: Colour
- Conductor surface: Bare
- Min. permitted bending radius, moving application/free movement: 24 mm
- Min. permitted bending radius, stationary application/permanent installation: 48 mm
- NVP value: 68 %
- Oil resistant according to EN IEC 60811-404: No
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Specification core insulation: Polyethylene (PE)
- Specification material outer sheath: Polyethylene (PE)
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- UV resistant: No
- Flame retardant according to IEC 60332-1-2: Yes
- REACH Date: 2022-08-09
- Product series: TCS
- REACH Information obligation: No
- Oil resistant (according to IEC 60811-404): No
