Eurolan
Data cable 2xC7 S/FTP white LSZH B2ca
C7 2XS/FTP WT LSZH B2CA
Article number: Suppl. article no:
4902270
19SB2-F7-23WT-0
to see price and stock

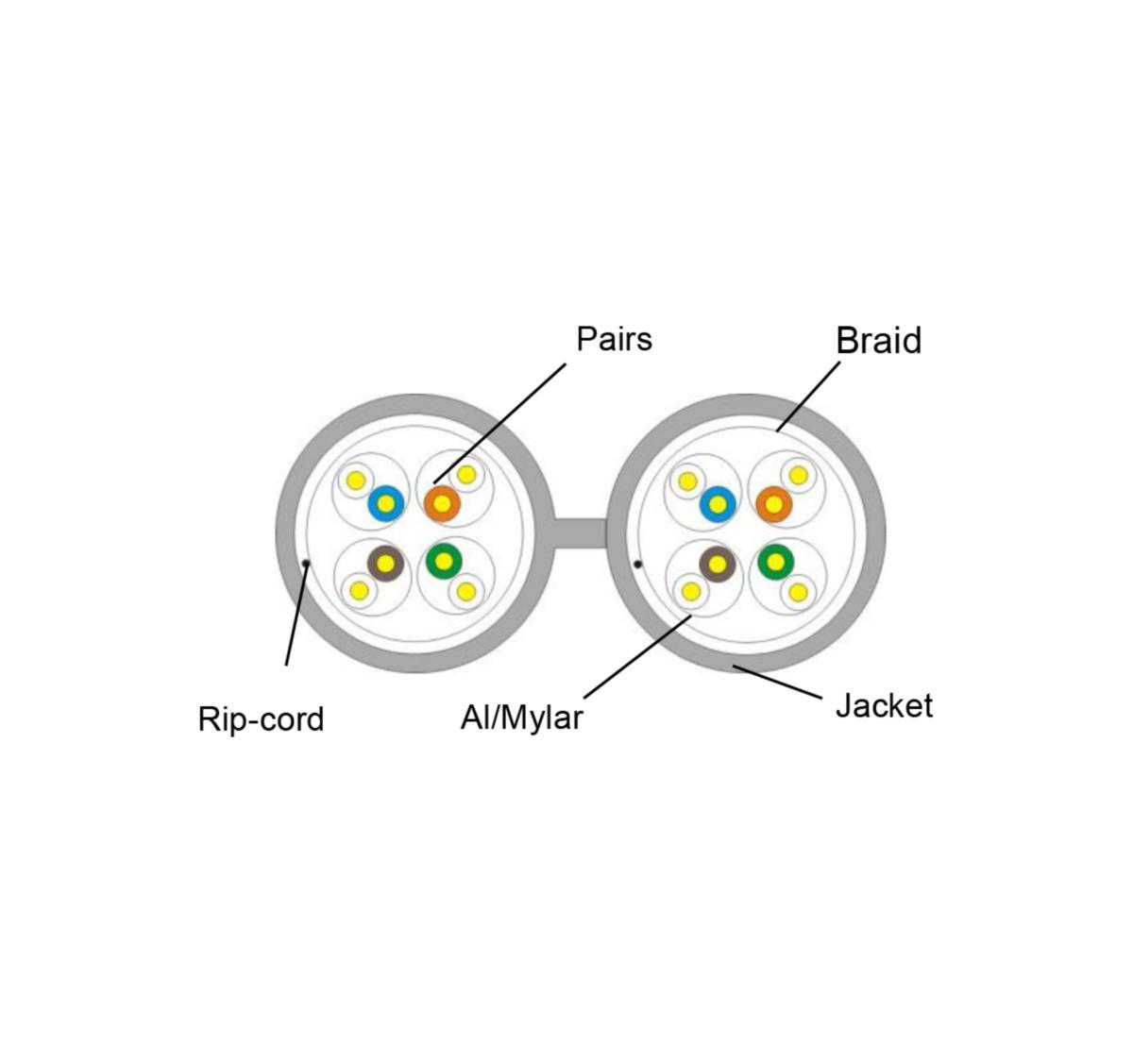

Eurolan C7 siamese shielded S/FTP B2ca is a halogen-free distribution network cable. The cable is verified for high-speed applications up to 600 MHz (10Gbit Ethernet). Meets the requirements of EN 50173-1 Class EA, ISO/IEC 11801 and IEC 332-1.
- Article number: 4902270
- Suppl. article no: 19SB2-F7-23WT-0
- Ean no: 7333089018943
- Material class QR2700
Technical data
- Type: 19SB2-F7-23WT-0
- Number of cores: 16
- Nominal cross section conductor: 0.246 mm²
- Number of stranding elements: 8
- Diameter conductor: 0.56 mm
- Reaction-to-fire according to EN 13501-6: Class: B2ca
- Cable type: S/FTP
- Category: 7
- Screen over stranding: Braiding
- Stranding element: Pairs
- Screen over stranding element: Foil
- Cable geometry: Other
- Colour outer sheath: White
- Conductor category: Class 1 = solid
- Suitable for underground installation: No
- Radial water blocking cable: No
- Longitudinal water blocking cable: No
- Armouring/reinforcement: None
- AWG size: 23
- Segregation class according to EN 50174-2: C
- Protective sheath: None
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d1
- Permitted cable outer temperature after assembling without vibration: -40-75 °C
- Permitted cable outer temperature during assembling/handling: -20-60 °C
- Halogen free according to EN IEC 60754-2: Yes
- Low smoke according to EN IEC 61034-2: Yes
- Core identification according to HD 308 S2: No
- Core identification: Colour
- Conductor surface: Bare
- Conductor material: Copper
- Material core insulation: Polyolefin
- Material outer sheath: Polyolefin
- Min. permitted bending radius, moving application/free movement: 61.6 mm
- Min. permitted bending radius, moving application with forced guidance: 30.8 mm
- Min. permitted bending radius, stationary application/permanent installation: 30.8 mm
- NVP value: 74 %
- Oil resistant according to EN IEC 60811-404: No
- Reaction-to-fire according to EN 13501-6: Smoke production: s1
- Specification core insulation: Polyethylene (PE)
- Specification material outer sheath: Other
- Reaction-to-fire according to EN 13501-6: Acidity: a1
- Stranding: Other
- Suitable as computer data cable: Yes
- Suitable as signalling cable: No
- Suitable as telephone cable: No
- Certified for shipboard application: No
- Weight: 112 kg/km
- Number of sheath layers: 1
- Drain wire: No
- Cable width approximate: 16.4 mm
- Duplex: Yes
- Circuit integrity according to IEC 60331-23: No
- Flame retardant according to IEC 60332-1-2: Yes
- Flame retardant according to IEC 60332-3-21 (Cat A F/R): No
- Flame retardant according to IEC 60332-3-22 (Cat A): Yes
- Flame retardant according to IEC 60332-3-23 (Cat B): No
- Flame retardant according to IEC 60332-3-24 (Cat C): No
- Flame retardant according to IEC 60332-3-25 (Cat D): No
- Halogen free according to EN IEC 60754-1: Yes
- Halogen free according to EN IEC 60754-3: Yes
- Cable height approximate: 7.7 mm
- Characteristic impedance: 100 Ohm
- Suitable for use as security alarm cable: No
- Max. tensile strength during installation: 0.11 kN
- With rodent protection: No
- With rip cord: Yes
- Nominal voltage U: 80 V
- REACH Date: 2025-11-03
- REACH Information obligation: No
