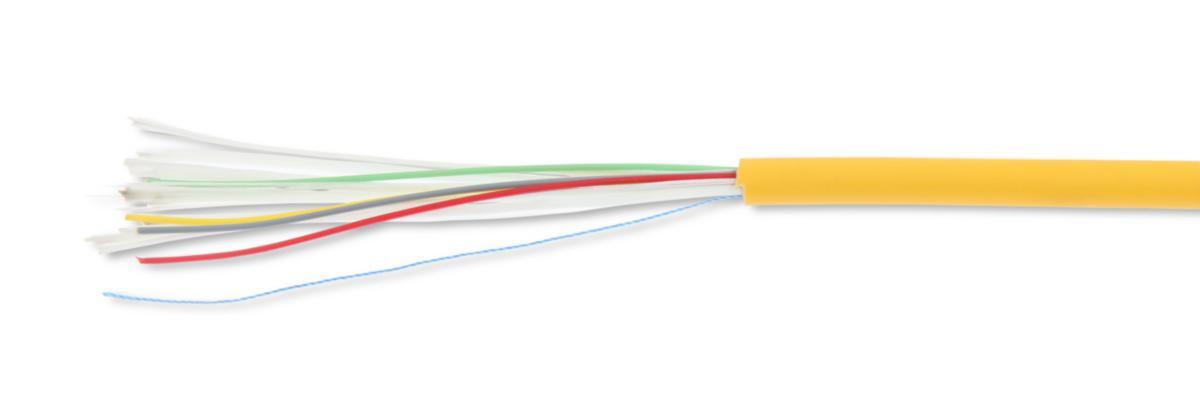

Distribution fibre 9/125 Dca, Eurolan
DIST 4X9/125 DCA 39TD-S1-04-01YL-0
Article number: Suppl. article no:
4988970
39TD-S1-04-01YL-0
to see price and stock
Eurolan Tightbuffered fiber cables are used in backbone, distribution networks or in FTTH solutions. Can be laid indoors as it is or outdoors in pipes. The cable has fixed secondary protection.
Temp operation: -20 ° C— + 70 ° C
Temp operation: -20 ° C— + 70 ° C
- Article number: 4988970
- Suppl. article no: 39TD-S1-04-01YL-0
- Ean no: 7333089015270
- Replaces art.nbr: 4988977
- Material class QR1610
Technical data
- Packagin Size: 1 M/2000 M
- Number of fibres: 4
- Fibre type: Single mode 9/125
- Outer diameter approximate: 6.3 mm
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Material outer sheath: Other
- Colour outer sheath: Yellow
- Blow in: No
- Low smoke according to EN IEC 61034-2: Yes
- Armouring/reinforcement: None
- Halogen free according to EN IEC 60754-1: Yes
- Halogen free according to EN IEC 60754-2: Yes
- With rodent protection: Yes
- Circuit integrity: None
- Resistant to chemicals: No
- Number of fibres per tube: 0
- Cable metal free: Yes
- Flame retardant according to IEC 60332-3-24 (Cat C): Yes
- Type of tube: Tight
- With strain relief: Yes
