Eurolan

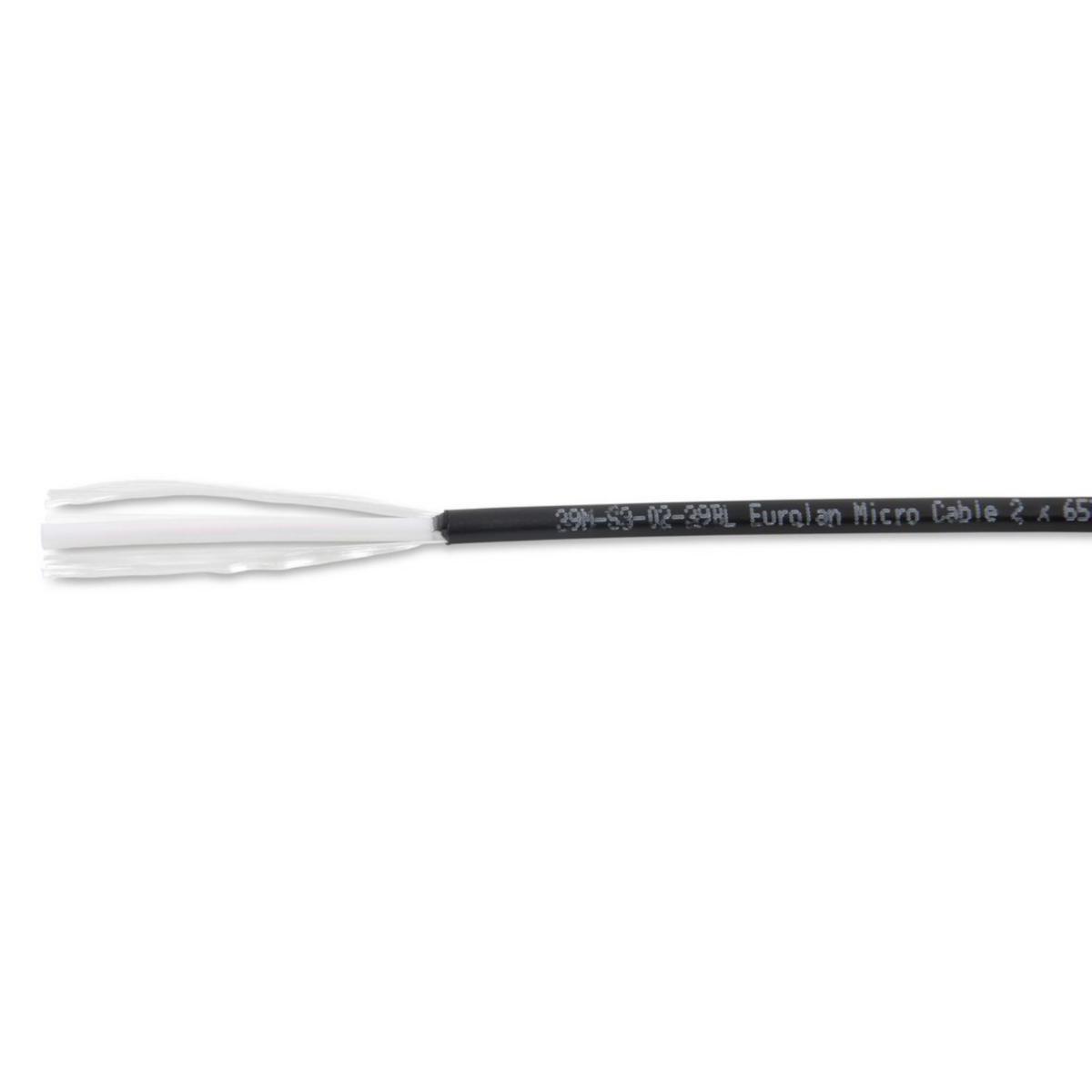

Microfiber cable Eurolan 12-288F 250um
MICROCABLE 192X9/125 G657A1 (*0) 39M-S250-192BL
Article number:
4988927
to see price and stock
Eurolan Microfiber cable color code S12, 250um, glass G657A1. Intended for blowing into microducts. Outer dimensions 4.5-10mm. The cable is delivered on a drum of 6000m or cut length.
- Article number: 4988927
- Material class QR1961
Technical data
- Packagin Size: 6000 M
- Category: OS2
- Number of fibres: 192
- Fibre type: Single mode 9/125
- Outer diameter approximate: 7.9 mm
- Reaction-to-fire according to EN 13501-6: Class: None
- Material outer sheath: Other
- Colour outer sheath: Black
- Suitable for underground installation: No
- Blow in: Yes
- Armouring/reinforcement: Lap-screen
- Material armouring: Other
- Halogen free according to EN IEC 60754-1: No
- Halogen free according to EN IEC 60754-2: No
- Halogen free according to EN IEC 60754-3: No
- Reaction-to-fire according to EN 13501-6: Acidity: None
- With rodent protection: No
- Circuit integrity: None
- Cable height approximate: 7.9 mm
- Cable width approximate: 7.9 mm
- Cable geometry: Round
- Resistant to chemicals: No
- Number of fibres per tube: 24
- Max. tensile strength during installation: 2.5 kN
- Cable metal free: Yes
- Weight: 51 kg/km
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: None
- Min. permitted bending radius, stationary application/permanent installation: 80 mm
- Longitudinal water blocking cable: Yes
- Radial water blocking cable: No
- Reaction-to-fire according to EN 13501-6: Smoke production: None
- Specification material outer sheath: Polyethylene (PE)
- UV resistant: Yes
- Fibre optic cable colour coding according to S-12 Skanova standard: Yes
- Type of tube: Stranded loose tube
- With strain relief: No
- Colour single fibre: Several
- Oil resistant according to EN IEC 60811-404: No
- REACH Date: 2025-04-25
- Type: 39M-S250-192BL
- REACH Information obligation: No
