Hexatronic
Nanocable Raptor GAHL / GAL / GPL S12 G657A
GAHL 2 G657A1 T4000 TOLA10408AB/U/02 NANO
Article number: Suppl. article no:
4988608
H4019050/2AH-4
to see price and stock

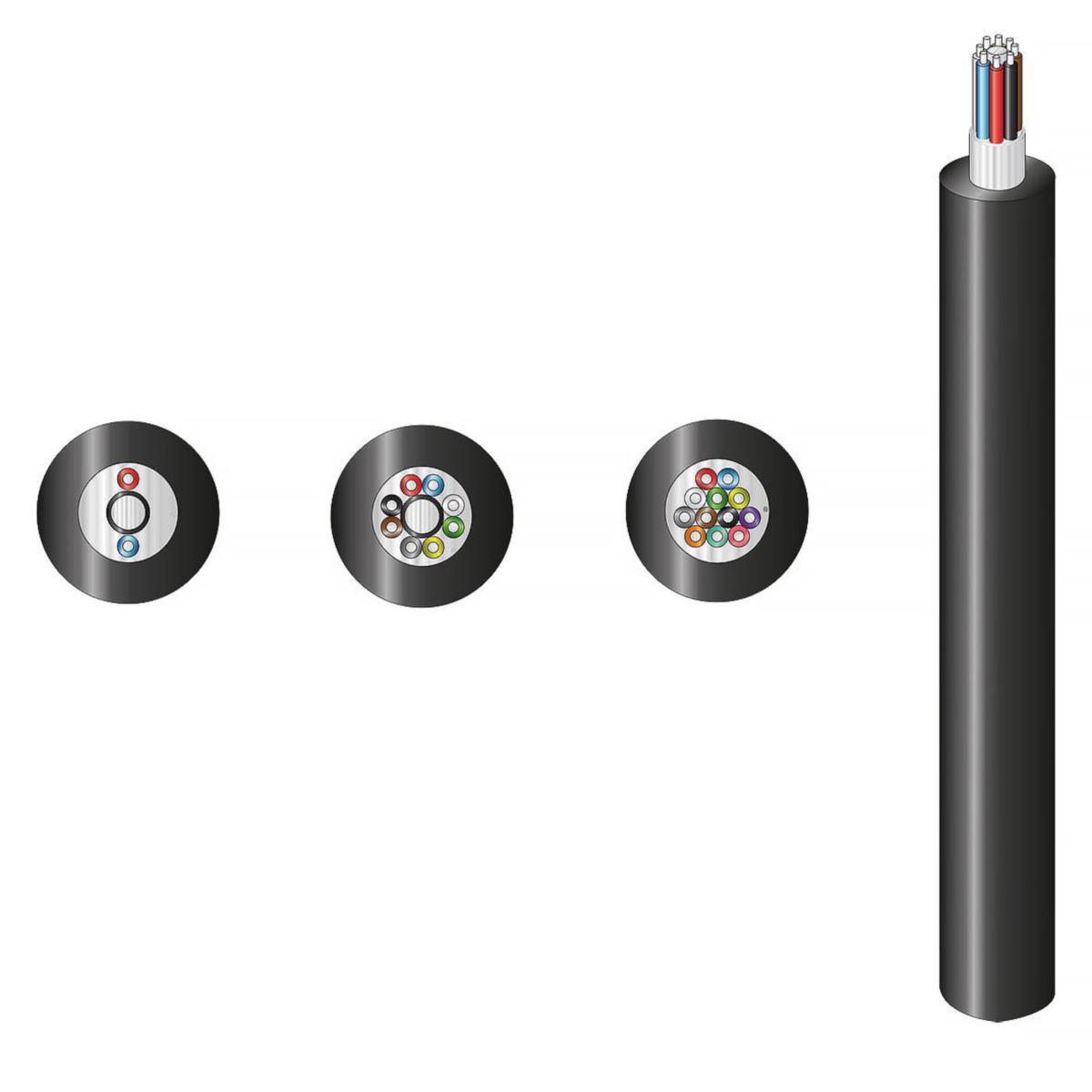

Nano cable for micro products with flexible G657A. The cable is installed with blowing technology or by pressing into ducts with an inner diameter down to 3.5 mm. Dielectric Capacity: 2-24 fiber.
- Article number: 4988608
- Suppl. article no: H4019050/2AH-4
- Ean no: 7333106004287
- Material class QR5741
Technical data
- Packagin Size: 4000 M/48000 M
- Category: OS2
- Number of fibres: 2
- Fibre type: Single mode 9/125
- Outer diameter approximate: 2 mm
- Reaction-to-fire according to EN 13501-6: Class: None
- Material outer sheath: Polyolefin
- Colour outer sheath: Black
- Suitable for underground installation: No
- Blow in: Yes
- Armouring/reinforcement: None
- Halogen free according to EN IEC 60754-1: Yes
- Halogen free according to EN IEC 60754-2: Yes
- Reaction-to-fire according to EN 13501-6: Acidity: None
- With rodent protection: No
- Circuit integrity: None
- Resistant to chemicals: No
- Cable metal free: Yes
- Flame retardant according to IEC 60332-1-2: No
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: None
- Flame retardant according to IEC 60332-3-21 (Cat A F/R): No
- Flame retardant according to IEC 60332-3-22 (Cat A): No
- Flame retardant according to IEC 60332-3-23 (Cat B): No
- Flame retardant according to IEC 60332-3-24 (Cat C): No
- Flame retardant according to IEC 60332-3-25 (Cat D): No
- Longitudinal water blocking cable: Yes
- Radial water blocking cable: Yes
- Reaction-to-fire according to EN 13501-6: Smoke production: None
- Specification material outer sheath: Polyethylene (PE)
- UV resistant: Yes
- Type of tube: Other
- With strain relief: Yes
- Oil resistant according to EN IEC 60811-404: No
- REACH Date: 2021-09-03
- Skanova article number: TOLA10408AB/U/02
- REACH Information obligation: No
