GAHSL-U-DFNRV G652D S12 outdoor strip central track, Nexans
GASLDV 24SM G652D (*7) SVART G652D
Article number: Suppl. article no:
4970330
29315620198
to see price and stock

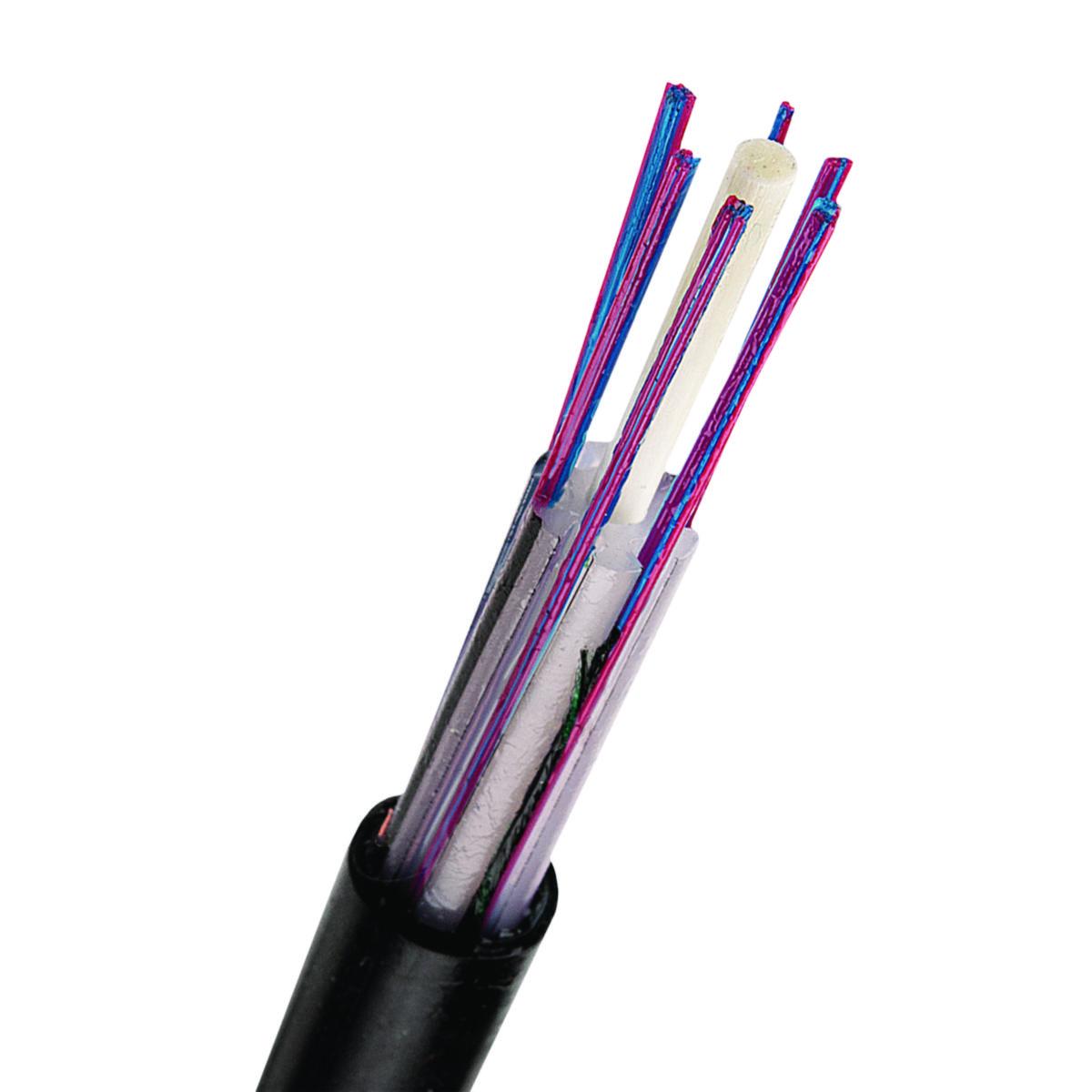

Fibre optic cable for outdoor installation in ducting. The cable contains 4-480 strands of fibre optic. The fibres are joined in 4 to 8 fibre strips (8 fibre strips are found in cables from 192 to 480 fibres). 4 or 8 fibre ribbons are laid in a Polyethylene channel core with a central tension reliever of glass fibre armoured plastic (FRP). GASLDV is waterproof due to vaseline filling material and sheathed in black halogen-free Polyethylene, and is designed for laying by pulling, blowing or reeling in ducting.
- Article number: 4970330
- Suppl. article no: 29315620198
- Ean no: 7330000052840
- Material class QR1520
Technical data
- Packagin Size: 1 M/2000 M
- Number of fibres: 24
- Number of fibres per tube: 0
- Outer diameter approximate: 7.9 mm
- Colour outer sheath: Black
- Fibre type: Single mode 9/125
- Category: OS2
- Blow in: Yes
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: None
- Reaction-to-fire according to EN 13501-6: Smoke production: None
- Reaction-to-fire according to EN 13501-6: Class: None
- Specification material outer sheath: Polyethylene (PE)
- Type of tube: Loose tube
- Material outer sheath: Polyolefin
- Suitable for underground installation: Yes
- Armouring/reinforcement: None
- Min. permitted bending radius, stationary application/permanent installation: 79 mm
- With strain relief: Yes
- Cable metal free: Yes
- Longitudinal water blocking cable: Yes
- Radial water blocking cable: No
- With rodent protection: No
- Oil resistant according to EN IEC 60811-404: Yes
- Reaction-to-fire according to EN 13501-6: Acidity: None
- UV resistant: Yes
- Resistant to chemicals: Yes
- Cable geometry: Round
- Max. tensile strength during installation: 1 kN
- Weight: 52 kg/km
- Fibre standard: G652D
- Flame retardant according to IEC 60332-1-2: No
- Flame retardant according to IEC 60332-3-21 (Cat A F/R): No
- Flame retardant according to IEC 60332-3-22 (Cat A): No
- Flame retardant according to IEC 60332-3-23 (Cat B): No
- Flame retardant according to IEC 60332-3-24 (Cat C): No
- Flame retardant according to IEC 60332-3-25 (Cat D): No
- Halogen free according to EN IEC 60754-1: Yes
- Halogen free according to EN IEC 60754-2: Yes
- Low smoke according to EN IEC 61034-2: No
- REACH Date: 2022-10-19
- REACH contains candidate substances: 1-Propanone, 2-methyl-1-[(4-methylthio)phenyl]-2-(4-morpholinyl)-
- Type: GASLDV
- Skanova article number: A9525450/24
- REACH Information obligation: Yes
