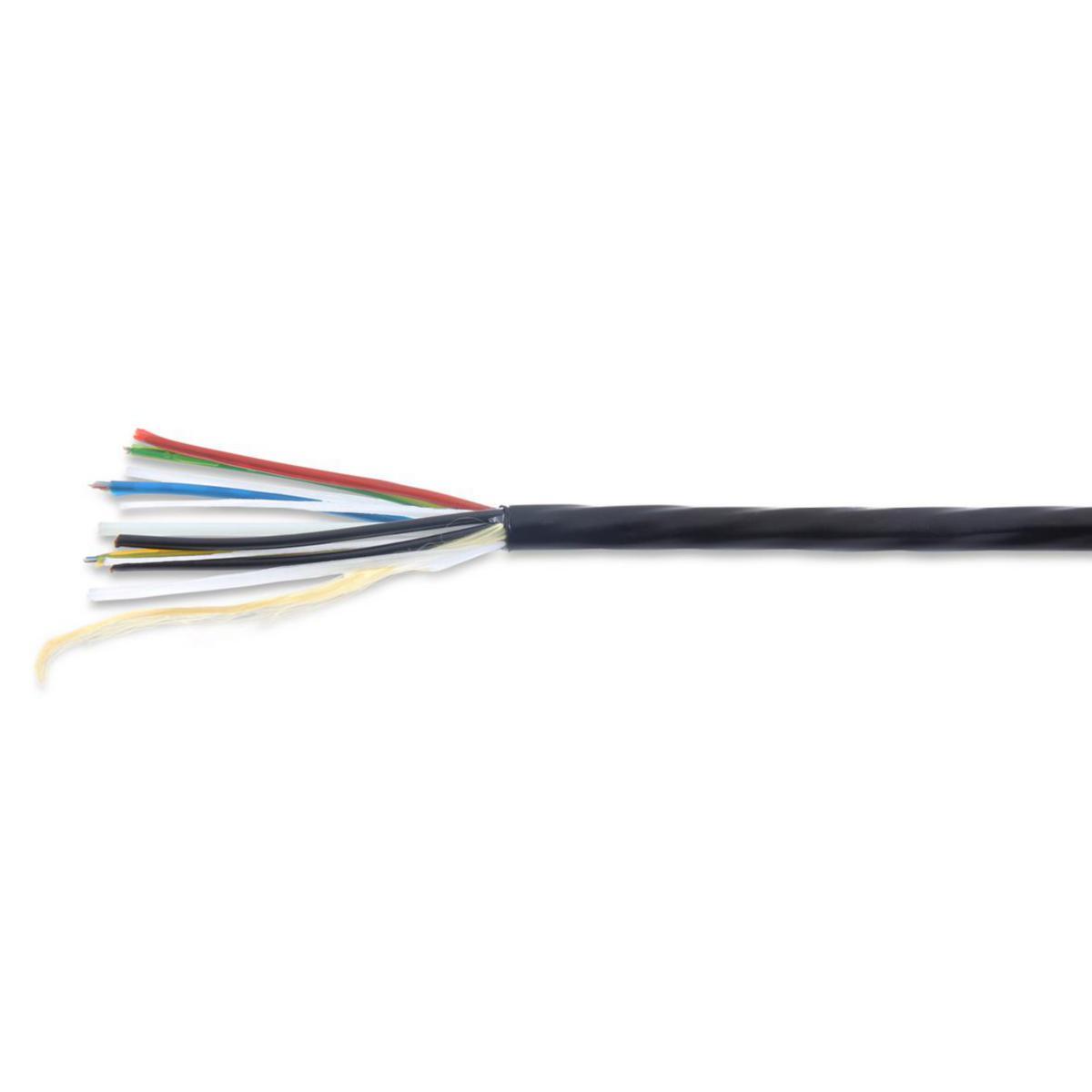

Microfiber cable Eurolan 12-288F 250um
MICROCABLE 48X9/125 5.7 39M-S3-48-60BL-0
Article number:
4963970
to see price and stock
Eurolan Microfiber cable color code S12, 250um, glass G657A1. Intended for blowing into microducts. Outer dimensions 4.5-10mm. The cable is delivered on a drum of 6000m or cut length.
- Article number: 4963970
- Ean no: 7333089010312
- Material class QR1910
Technical data
- Type: 39M-S3-48-60BL-0
- Number of fibres: 48
- Number of fibres per tube: 12
- Outer diameter approximate: 5.7 mm
- Colour outer sheath: Black
- Colour single fibre: Several
- Fibre type: Single mode 9/125
- Category: OS2
- Blow in: Yes
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: None
- Reaction-to-fire according to EN 13501-6: Smoke production: None
- Reaction-to-fire according to EN 13501-6: Class: None
- Specification material outer sheath: Polyethylene (PE)
- Type of tube: Stranded loose tube
- Material outer sheath: Other
- Suitable for underground installation: No
- Armouring/reinforcement: Lap-screen
- Material armouring: Other
- Min. permitted bending radius, stationary application/permanent installation: 60 mm
- With strain relief: No
- Cable metal free: Yes
- Longitudinal water blocking cable: Yes
- Radial water blocking cable: No
- With rodent protection: No
- Oil resistant according to EN IEC 60811-404: No
- Reaction-to-fire according to EN 13501-6: Acidity: None
- UV resistant: Yes
- Resistant to chemicals: No
- Cable geometry: Round
- Max. tensile strength during installation: 1.2 kN
- Weight: 27 kg/km
- Fibre optic cable colour coding according to S-12 Skanova standard: Yes
- Cable width approximate: 5.7 mm
- Cable height approximate: 5.7 mm
- Circuit integrity: None
- Circuit integrity according to EN 50200: None
- Circuit integrity according to IEC 60331-23: No
- Circuit integrity according to IEC 60331-25: None
- Flame retardant according to IEC 60332-1-2: No
- Flame retardant according to IEC 60332-3-21 (Cat A F/R): No
- Flame retardant according to IEC 60332-3-22 (Cat A): No
- Flame retardant according to IEC 60332-3-23 (Cat B): No
- Flame retardant according to IEC 60332-3-24 (Cat C): No
- Flame retardant according to IEC 60332-3-25 (Cat D): No
- Halogen free according to EN IEC 60754-1: No
- Halogen free according to EN IEC 60754-2: No
- Halogen free according to EN IEC 60754-3: No
- Low smoke according to EN IEC 61034-2: Yes
- REACH Date: 2024-01-09
- REACH Information obligation: No
