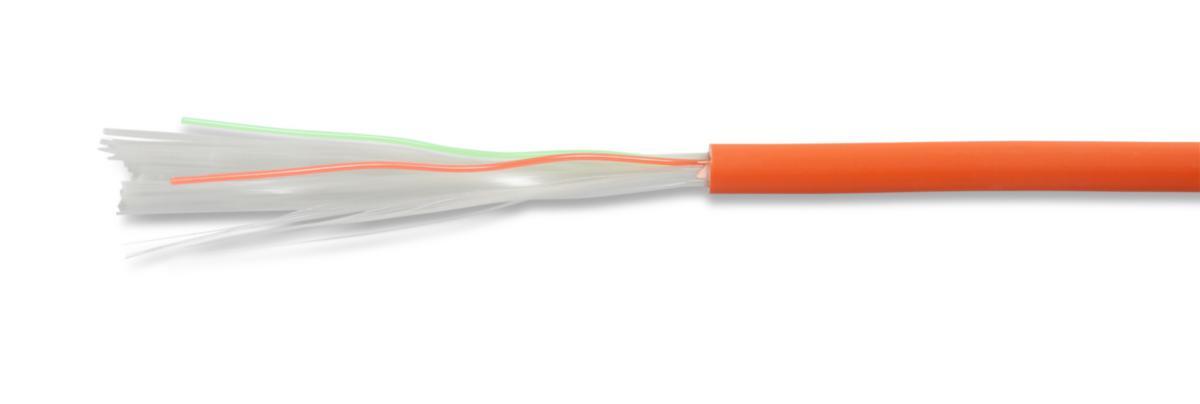

Uni Loose Tube OM2 50/125 Dca, Eurolan
UNILT OM2 4X50/125 DCA 39UD-20-04-02OR-0
Article number: Suppl. article no:
4965040
39UD-20-04-02OR-0
to see price and stock
Eurolan Uni LT fiber cables are used in backbone, distribution networks or in FTTH solutions. Can be laid indoors as it is or outdoors in pipes. Loosetube: ø 2.8 mm gel filled loose tube with 2 - 12 fibers; ø 3.5 mm loose tube with 24 fibers.
Temp operation: -30 ° C— +60 ° C
Sheath: 1 mm LSZH
Temp operation: -30 ° C— +60 ° C
Sheath: 1 mm LSZH
- Article number: 4965040
- Suppl. article no: 39UD-20-04-02OR-0
- Ean no: 7333089015591
- Replaces art.nbr: 4965047
- Material class QR1760
- This is an alternative to item 4978630 4963990
Technical data
- Packagin Size: 1 M/2000 M
- Category: OM2
- Number of fibres: 4
- Fibre type: Multi mode 50/125
- Outer diameter approximate: 7 mm
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Material outer sheath: Other
- Colour outer sheath: Orange
- Blow in: No
- Low smoke according to EN IEC 61034-2: Yes
- Armouring/reinforcement: None
- Halogen free according to EN IEC 60754-1: Yes
- Halogen free according to EN IEC 60754-2: Yes
- With rodent protection: Yes
- Resistant to chemicals: No
- Number of fibres per tube: 4
- Cable metal free: Yes
- Flame retardant according to IEC 60332-3-24 (Cat C): Yes
- Type of tube: Central tube
- With strain relief: Yes
