Nexans
LED cable RQUB red/blackt Dca, Nexans
RQUB 2X0,75 RD/BK X400 (*3) 11170284-245-28
Article number: Suppl. article no:
4892343
11170284-245-28
to see price and stock
RQUB is a flat cable with two parallel conductors. The cable is HFFR-insulated with a round multi-wire conductor of copper for a maximum conductor temperature of 70 ° C. Cable color combination: Black with a red color stripe on one of the conductors. The conductor has resistance according to EN 60228 class 5. RQUB complies with fire spread class according to CPR class Dcas2d2a2. The cables meet the voltage requirement according to EN 50525-2-81: 2011. Suitable as a connection cable for, for example, speakers or LED lighting. Rated voltage max 90 V, operating temperature max 70 ° C.
- Article number: 4892343
- Suppl. article no: 11170284-245-28
- Ean no: 7330000115293
- Material class QR0650
Technical data
- Packagin Size: 400 M/12800 M
- Cable type: RQUB
- Dimension conductor x area: 2x0.75 mm²
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Outer diameter approximate: 4.2 mm
- Nominal voltage U0: 50 V
- Nominal voltage U: 50 V
- Colour outer sheath: Multi-coloured
- Conductor category: Class 2 = stranded
- Conductor material: Copper
- Halogen free according to EN IEC 60754-2: Yes
- Halogen free according to EN IEC 60754-1: Yes
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- Material core insulation: Polyolefin
- Core identification: Colour
- Specification core insulation: Other
- Nominal cross section conductor: 0.75 mm²
- Number of cores: 2
- Cable height approximate: 1.9 mm
- Cable width approximate: 4.2 mm
- Shape: Flat
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Material outer sheath: None

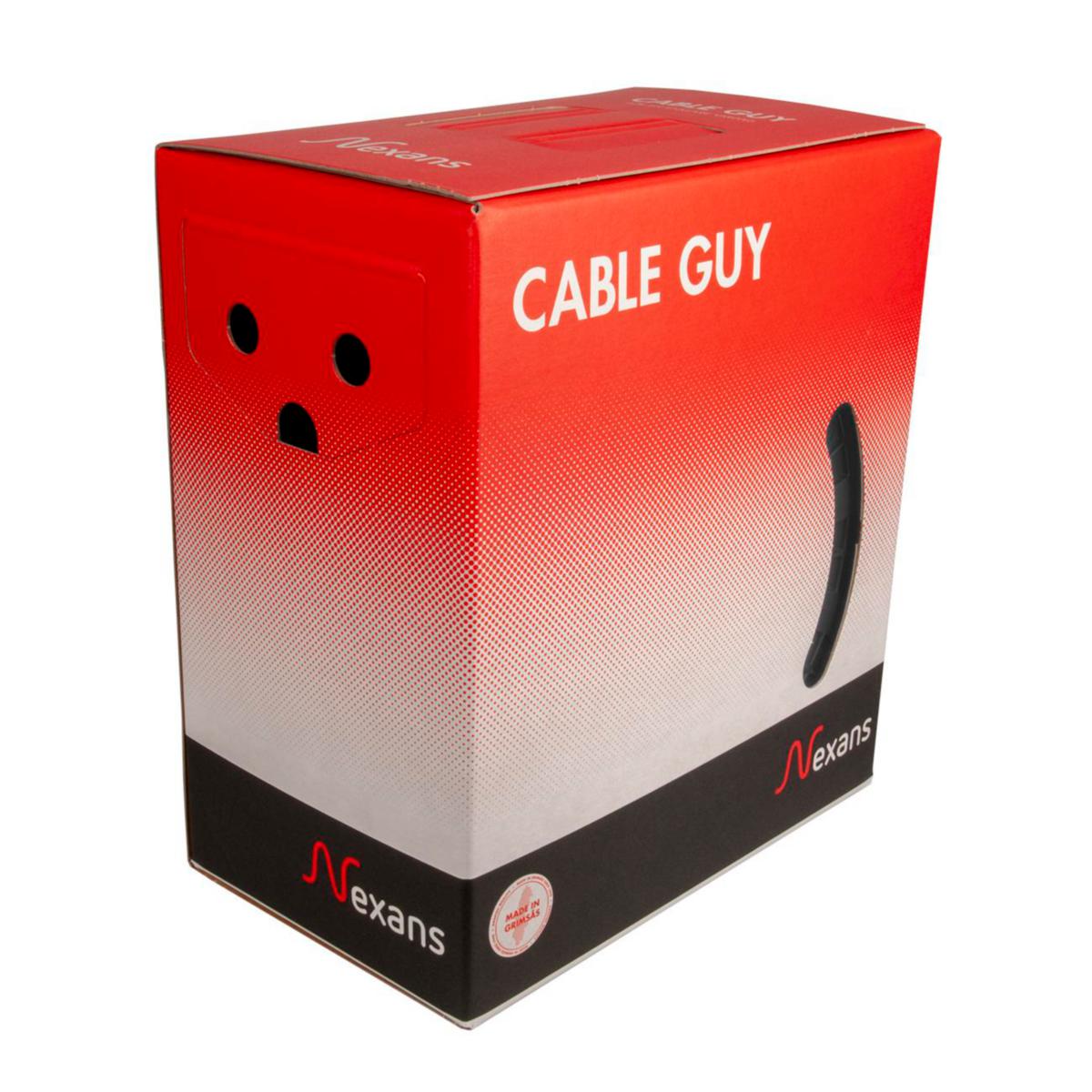

- Packaging type (cable): Cable guy
- REACH Date: 2021-06-14
- Core colour: Red/black
- REACH Information obligation: No
