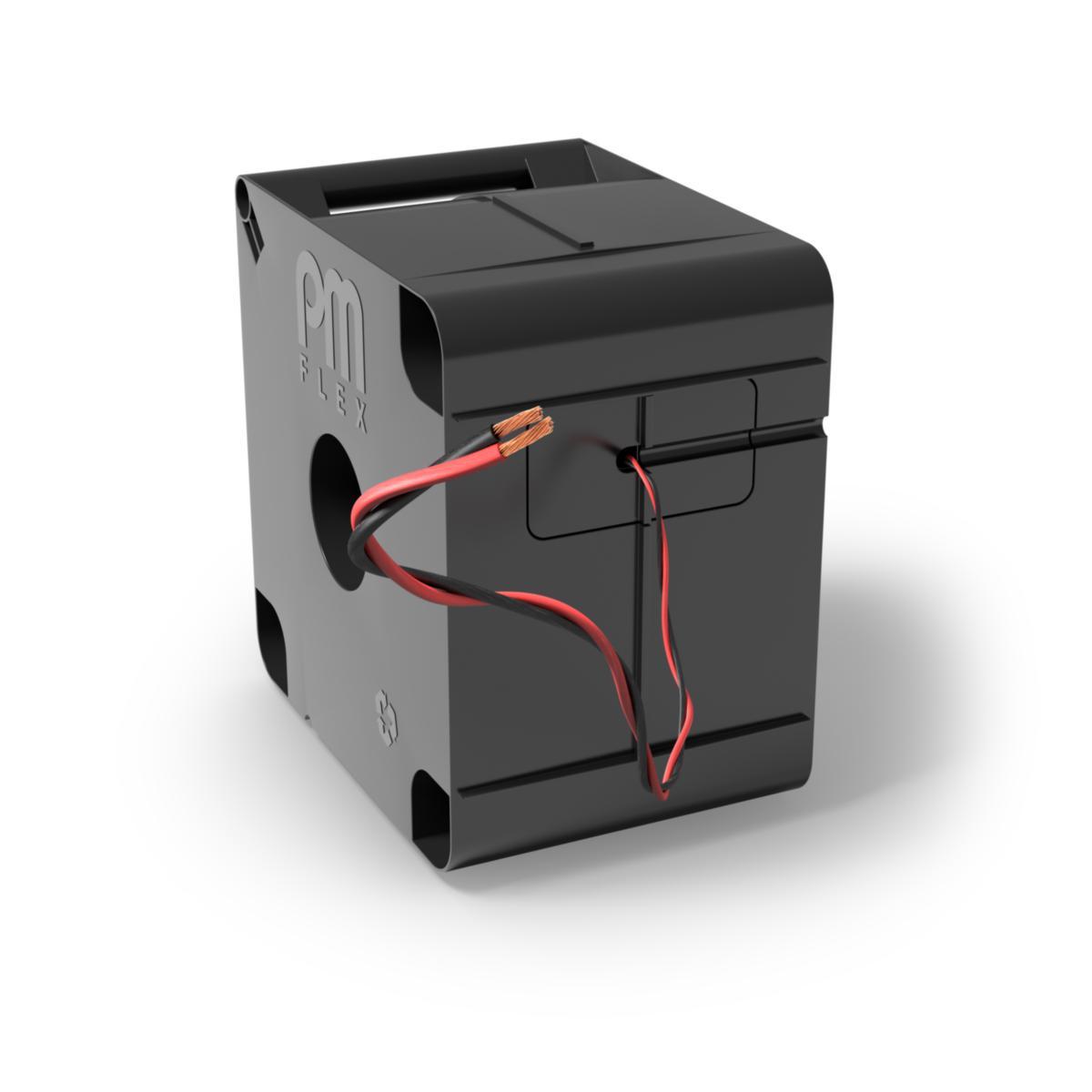

LED cable Twisted RQ- Quick n Easy, PM Flex
RQ 2X1 BK/RD TWINNED / X300
Article number:
4891493
to see price and stock
Braided RQ - round stranded copper conductors with two-colour halogen-free insulation. Pair-twisted conductors to minimise inducing voltages disturbing the LED lighting. The conductor insulation shall be protected against direct UV light such as light in luminaries, electric signs or the like. The area of application is primarily installation of LED lighting. The cable is metre-marked to facilitate installation and quantity calculation.
- Article number: 4891493
- Ean no: 7332367915936
- Material class QR1080
Technical data
- Packagin Size: 300 M
- Cable type: RQ TWIST
- Dimension conductor x area: 2x1 mm²
- Outer diameter approximate: 2.6 mm
- Nominal voltage U0: 300 V
- Nominal voltage U: 500 V
- Colour outer sheath: Other
- Conductor category: Class 2 = stranded
- Conductor material: Copper
- Diameter conductor: 2.1 mm
- Max. permitted conductor temperature: 70 °C
- Low smoke according to EN IEC 61034-2: Yes
- Armouring/reinforcement: None
- Halogen free according to EN IEC 60754-1: Yes
- Halogen free according to EN IEC 60754-2: Yes
- Screen: No
- Core identification: Colour
- Nominal cross section conductor: 1 mm²
- Number of cores: 2
- Permitted cable outer temperature after assembling without vibration: -10-70 °C
- Drain wire: No
- Packaging type (cable): Quick n Easy
- Flame retardant according to IEC 60332-1-2: Yes
- Permitted cable outer temperature during assembling/handling: -10-70 °C
- Protective barrier: None
- Material outer sheath: Polyolefin
- REACH Date: 2022-09-02
- REACH Information obligation: No
