LED cable RQUB Quick n Easy, PM Flex
RQUB 2X0,75 BK/RD / X300 P
Article number:
4891487
to see price and stock

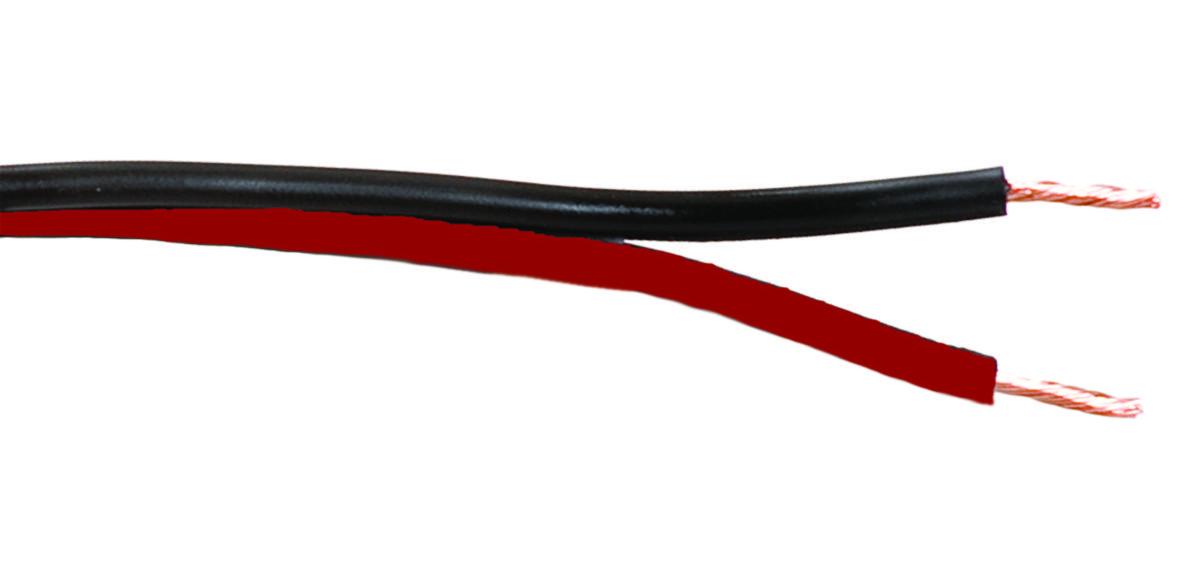

RQUB - flat cable with two parallel round multi-stranded copper conductors in
two-colour halogen-free insulation.
The conductor insulation shall be protected against direct UV light such as light in
luminaries, electric signs or the like.
The area of application is primarily installation of LED lighting.
two-colour halogen-free insulation.
The conductor insulation shall be protected against direct UV light such as light in
luminaries, electric signs or the like.
The area of application is primarily installation of LED lighting.
- Article number: 4891487
- Ean no: 7332367915875
- Material class QR1081
Technical data
- Packagin Size: 300 M
- Cable type: RQUB
- Dimension conductor x area: 2x0.75 mm²
- Diameter conductor: 2.2 mm
- Colour outer sheath: Multi-coloured
- Nominal voltage U: 300 V
- Nominal voltage U0: 300 V
- Armouring/reinforcement: None
- Screen: No
- Drain wire: No
- Permitted cable outer temperature after assembling without vibration: -15-70 °C
- Permitted cable outer temperature during assembling/handling: -15-70 °C
- Conductor category: Class 5 = flexible
- Conductor material: Copper
- Core identification: Colour
- Protective barrier: None
- Max. permitted conductor temperature: 70 °C
- Packaging type (cable): Quick n Easy
- Nominal cross section conductor: 0.75 mm²
- Number of cores: 2
- Low smoke according to EN IEC 61034-2: No
- Halogen free according to EN IEC 60754-1: Yes
- Flame retardant according to IEC 60332-1-2: Yes
- Halogen free according to EN IEC 60754-2: Yes
- REACH Date: 2022-09-02
- REACH Information obligation: No
