Televes

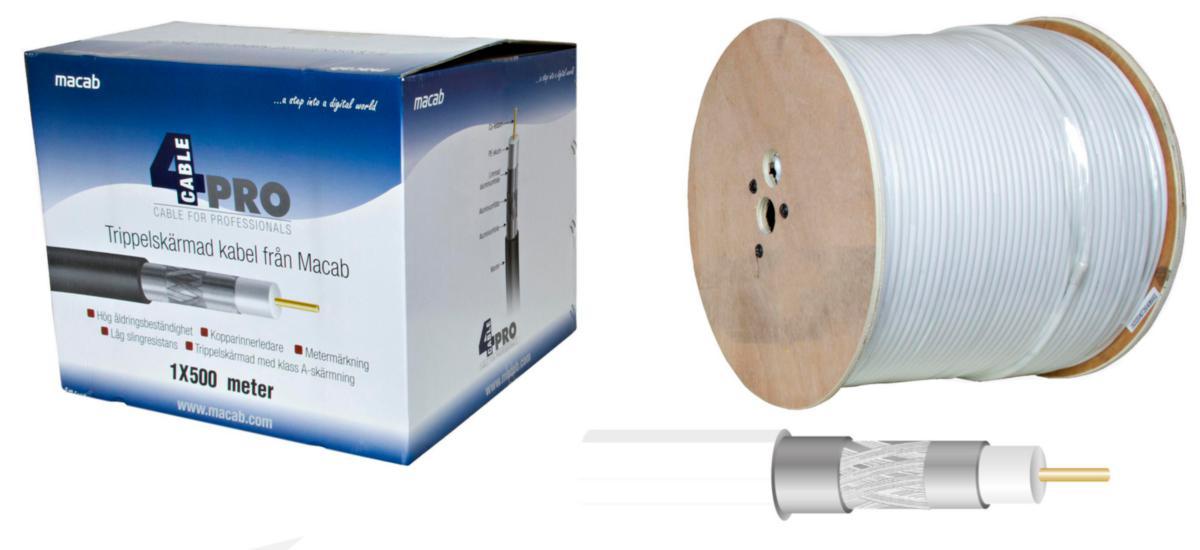

Coaxial cable RG-6T A/LSNH Dca (1.0/4.6) tr-shield white, Televes
RG6T/500M A+/LSNH DCA WHITE (0*) 415203
Article number: Suppl. article no:
4880605
4151245
to see price and stock
Solidstate relay 3-phase - switching at zero crossing
- Article number: 4880605
- Suppl. article no: 4151245
- Ean no: 8424450187715
- Material class QR2150
Technical data
- Packagin Size: 500 M
- Outer diameter approximate: 7.06 mm
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Colour outer sheath: White
- Characteristic impedance: 75 Ohm
- Diameter inner conductor: 1.02 mm
- Diameter outer conductor: 4.6 mm
- Specification material outer sheath: Other
- UV resistant: Yes
- Armouring/reinforcement: None
- Halogen free according to EN IEC 60754-1: Yes
- Halogen free according to EN IEC 60754-2: Yes
- Reaction-to-fire according to EN 13501-6: Acidity: a1
- Permitted cable outer temperature after assembling without vibration: -15-65 °C
- Suitable for underground installation: No
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d1
- Permitted cable outer temperature during assembling/handling: -5-60 °C
- Reaction-to-fire according to EN 13501-6: Smoke production: s1
- Inner conductor category: Class 1 = solid
- Inner conductor material: Copper
- Inner conductor surface: Bare
- Number of screen layers: 3
- Outer conductor material: Aluminium
- Outer conductor surface: Bare
- Type of outer conductor: Foil + braiding
- Material outer sheath: Polyvinyl chloride (PVC)
- Dielectric: Polyethylene, foamed (foam PE)
- REACH Date: 2021-06-17
- REACH Information obligation: No
