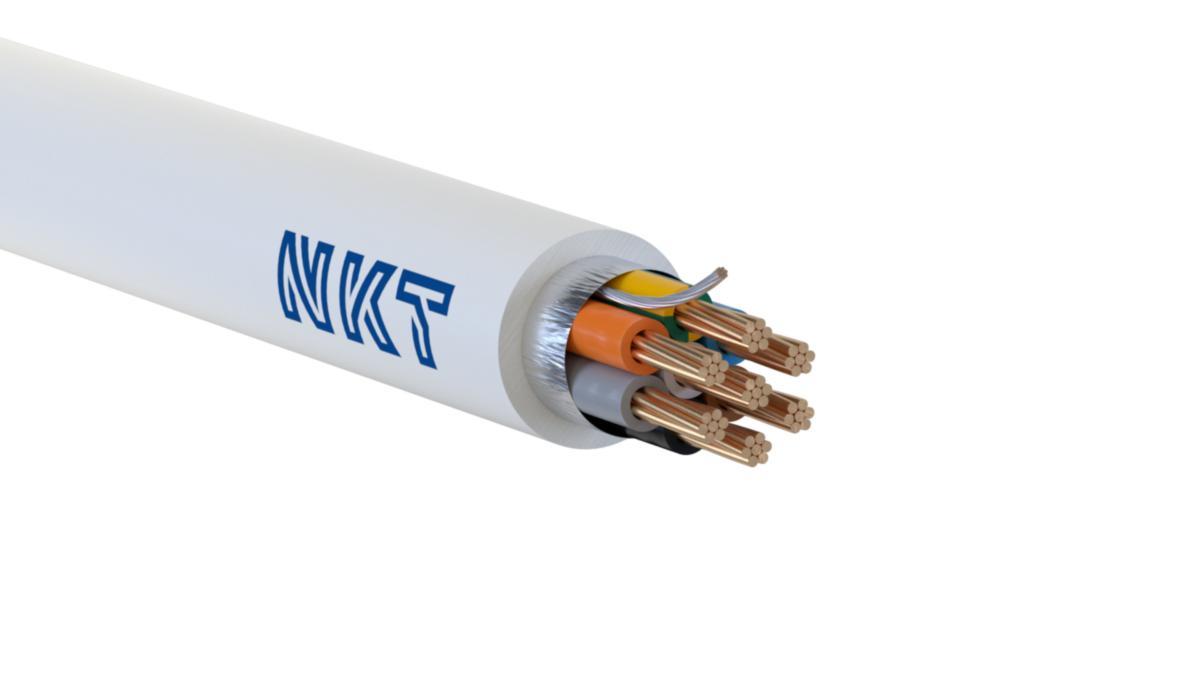

For fixed installation indoors and outdoors, in pipes or duct, in or under plaster. In ground if cable protection is used. The conductor insulation must be protected against direct UV light that can occur, for example, in lighting fixtures and light signs. FXLQ Xtra is a lightly scaled halogen-free cable that, in the event of fire, emits smoke that is free of corrosive gases and has a low smoke density. Shielding: Aluminum tape adhering to polyethylene inner sheath. Conductor: Twisted copper wire, 1 mm², which has contact with the aluminum strip. Mantle: Halogen free, white, flame retardant plastic, meter marked.
- Article number: 0468300
- Ean no: 5702950293543
- Replaces art.nbr: 0468160
- Material class QA7300
Technical data
- Cable type: FXLQ XTRA
- Dimension conductor x area: 7G1.5 mm²
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Colour outer sheath: White
- With protective conductor: Yes
- Outer diameter approximate: 10.9 mm
- Weight/100 m: 19.9 kg
- Nominal voltage U0: 450 V
- Shape of conductor: Round
- Nominal voltage U: 750 V
- Core colour: Several
- Diameter conductor: 1.6 mm
- Max. permitted conductor temperature: 70 °C
- Drain wire: Yes
- Protective barrier: Al/PE
- Armouring/reinforcement: None
- Conductor category: Class 2 = stranded
- Conductor material: Copper
- Material outer sheath: Polyolefin
- Core identification: Colour
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Material core insulation: Other
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Certified for shipboard application: No
- Certified as airport lighting cable: No
- Cable geometry: Round
- Specification core insulation: Polyethylene (PE)
- Conductor surface: Bare
- Suitable as installation cable: Yes
- Oil resistant according to EN IEC 60811-404: No
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- Twisted cores: Yes
- Lead sheath: No
- Number of cores: 7
- Nominal cross section conductor: 1.5 mm²
- Screen: Yes
- REACH Date: 2021-12-09
- REACH Information obligation: No
