NKT

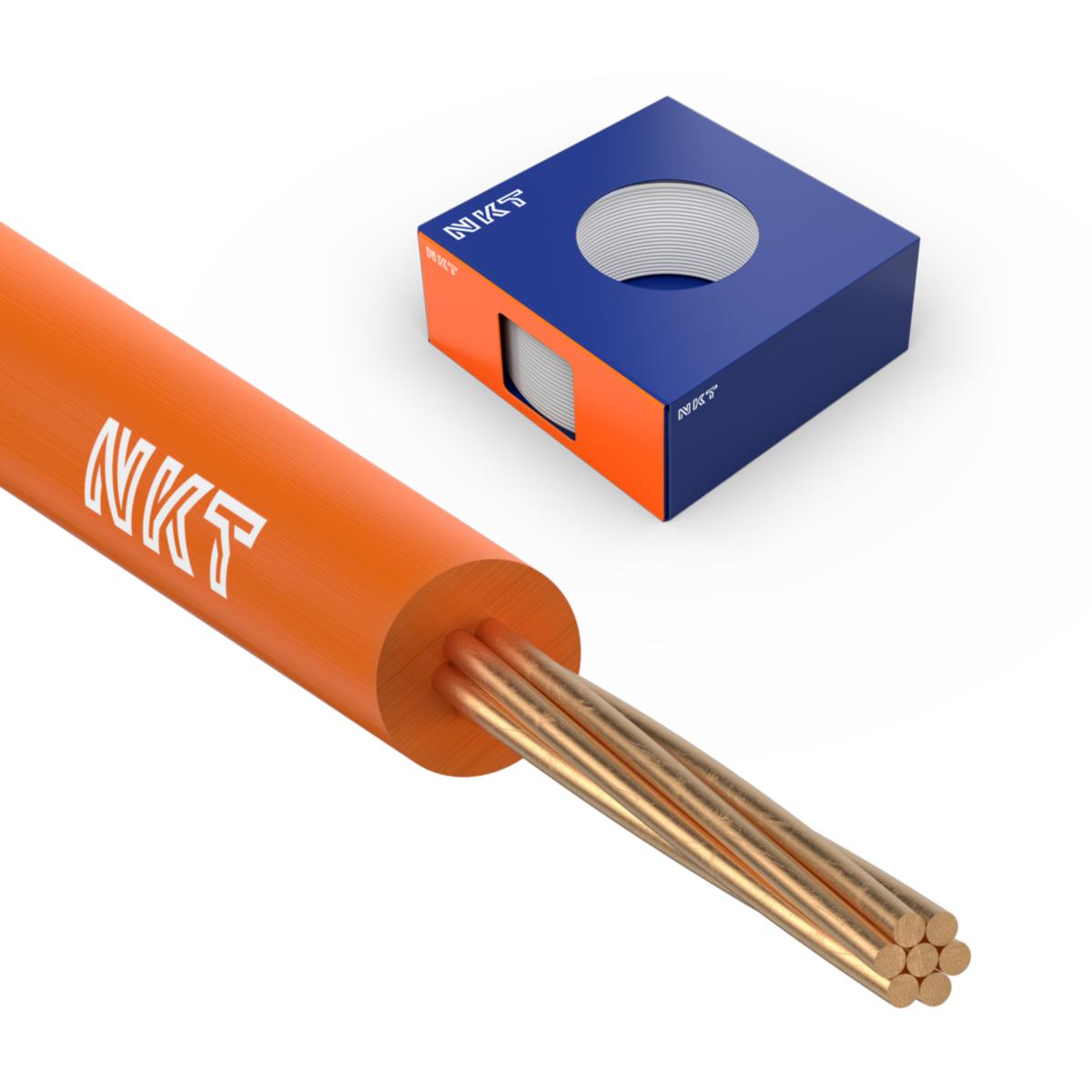

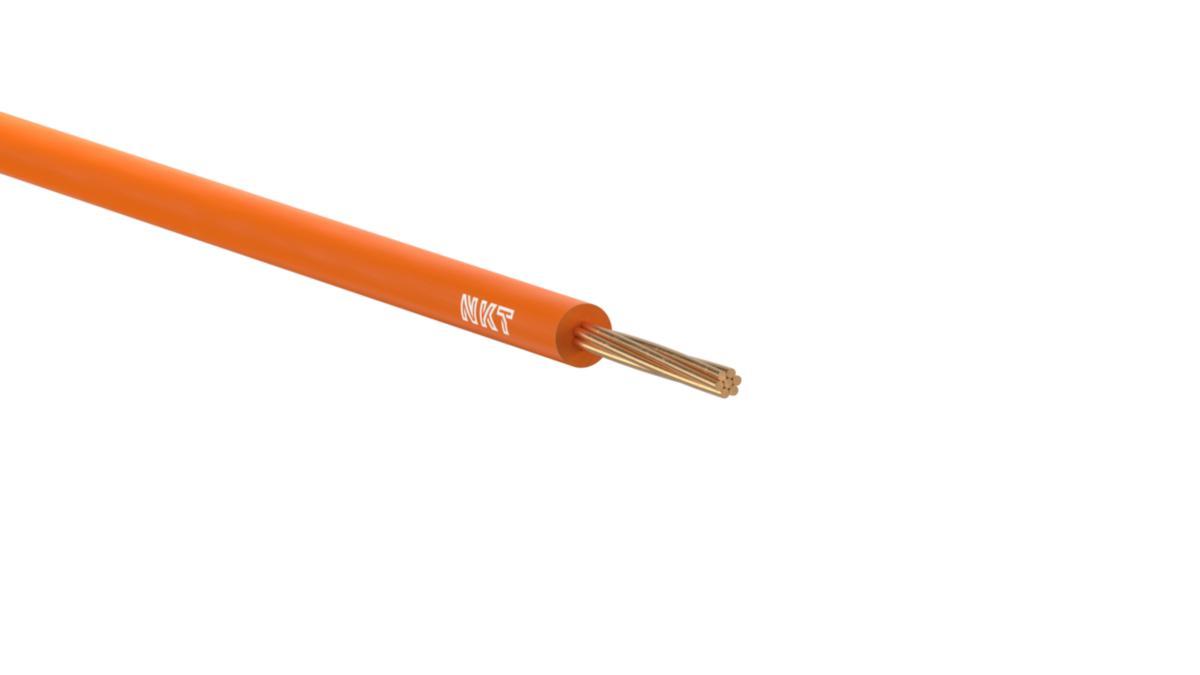

Installation cable FQ Dca, Nkt
FQ XTRA 1.5 ORANGE DCA R100
Article number:
0437302
to see price and stock
Halogen-free cable that emits smoke that is free of corrosive gases in the event of a fire and has a low smoke density. For routing in pipes and ducts, and as a connecting cable in control cabinets. Conductor insulation must be protected from direct UV light.
- Article number: 0437302
- Ean no: 5702950286224
- Material class QA6651
Technical data

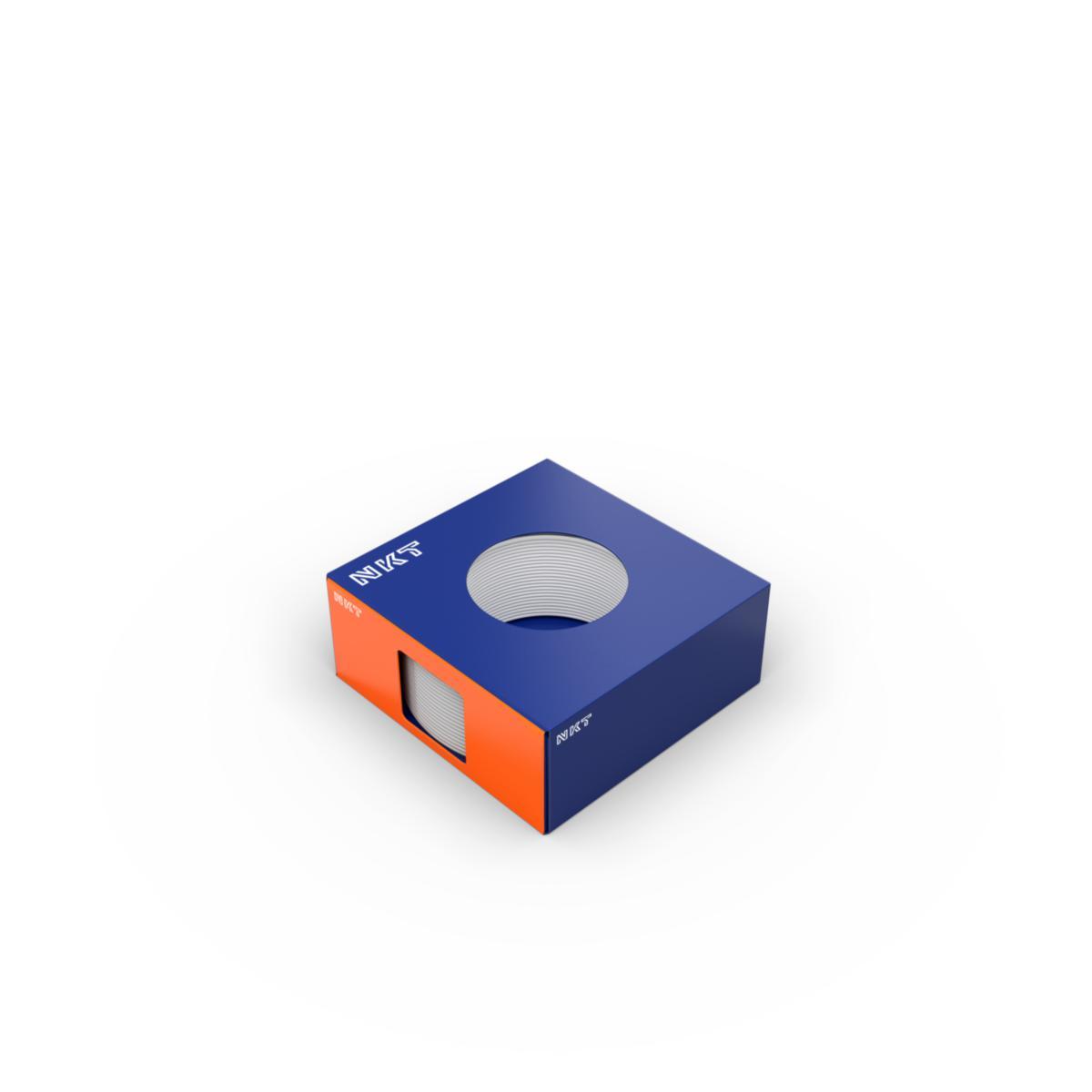

- Packagin Size: 100 M/6000 M/12000 M
- Cable type: H07Z1-R
- Dimension conductor x area: 1.5 mm²
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Colour outer sheath: Orange
- With protective conductor: No
- Outer diameter approximate: 3 mm
- Weight/100 m: 2.1 kg
- Nominal voltage U0: 450 V
- Shape of conductor: Round
- Nominal voltage U: 750 V
- Core colour: Orange
- Diameter conductor: 1.6 mm
- Max. permitted conductor temperature: 70 °C
- Drain wire: No
- Protective barrier: None
- Armouring/reinforcement: None
- Conductor category: Class 2 = stranded
- Conductor material: Copper
- Material outer sheath: Polyolefin
- Core identification: Colour
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Material core insulation: Polyolefin
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Certified for shipboard application: No
- Certified as airport lighting cable: No
- Specification core insulation: Other
- Low temperature resistant according to EN 60811-504+505+506: No
- Conductor surface: Bare
- Suitable as installation cable: Yes
- Oil resistant according to EN IEC 60811-404: No
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- Twisted cores: No
- Flame retardant according to IEC 60332-1-2: Yes
- Halogen free according to EN IEC 60754-1: Yes
- Halogen free according to EN IEC 60754-2: Yes
- Number of cores: 1
- Nominal cross section conductor: 1.5 mm²
- Screen: No
- REACH Date: 2021-12-09
- REACH Information obligation: No
