NKT
Installation cable EXQ-Xtra 300/500V Dca, Nkt

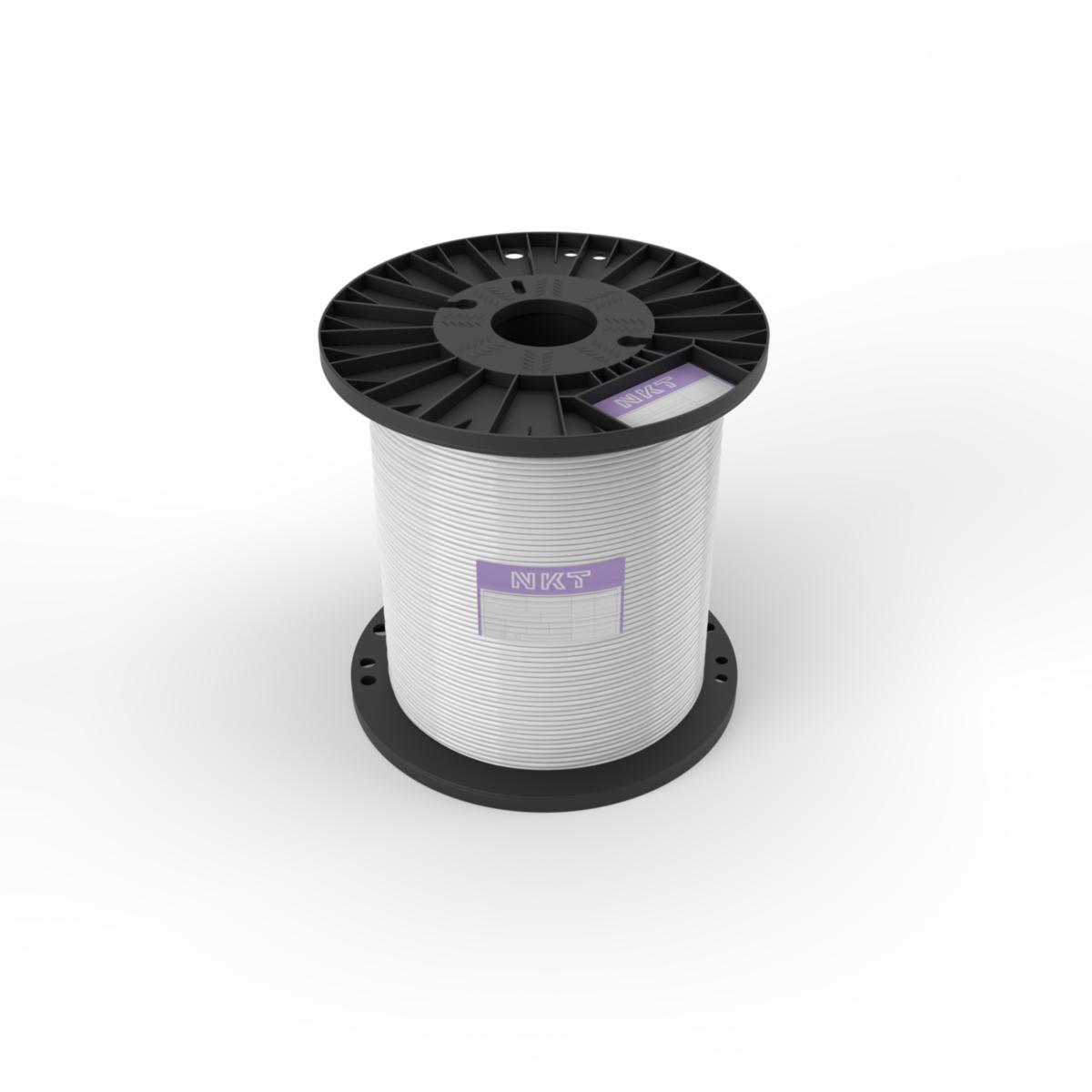

EXQ XTRA 5G1,5 B250
Article number:
0447024
to see price and stock
Halogen-free cable. Use for fixed installation as well as in pipes or duct. The cables must be placed indoors and outdoors. The conductor insulation must be protected against UV light.
Conductor temperature: Max. 70 ° C, Short circuit temperature: Max. 250 ° C, Laying temperature: Min. -15 ° C, bending radius: 5 x D.

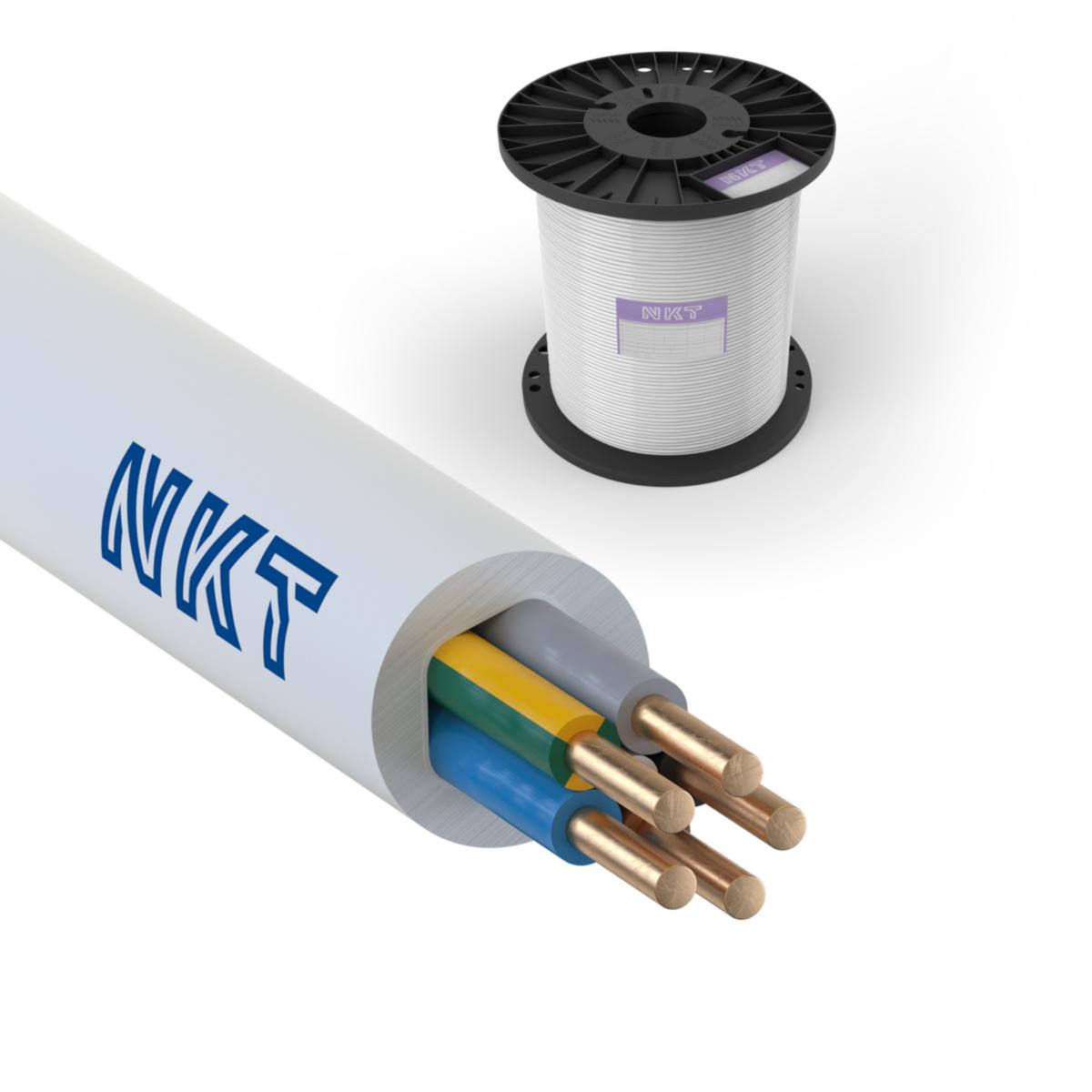

Leader: Indoor, annealed round copper, Insulation: PEX Part marking with protective conductor (G) 3-conductor: Green / yellow, blue, brown 4-conductor: Green / yellow, blue, brown, black 5-conductor: Green / yellow, blue , brown, black, gray, fill jacket EPDM, jacket: thermoplastic material, jacket color: white, certificate: SEMKO, standard: nkt cables factory standard 012, rated voltage: 300/500 V, test voltage: 2 kV AC, fire class: D, CE conformity : Low Voltage Directive.
Conductor temperature: Max. 70 ° C, Short circuit temperature: Max. 250 ° C, Laying temperature: Min. -15 ° C, bending radius: 5 x D.
Leader: Indoor, annealed round copper, Insulation: PEX Part marking with protective conductor (G) 3-conductor: Green / yellow, blue, brown 4-conductor: Green / yellow, blue, brown, black 5-conductor: Green / yellow, blue , brown, black, gray, fill jacket EPDM, jacket: thermoplastic material, jacket color: white, certificate: SEMKO, standard: nkt cables factory standard 012, rated voltage: 300/500 V, test voltage: 2 kV AC, fire class: D, CE conformity : Low Voltage Directive.
- Article number: 0447024
- Ean no: 5702950286132
- Replaces art.nbr: 0446324
- Material class QA7051
Technical data
- Packagin Size: 250 M
- Cable type: EXQ-Xtra
- Dimension conductor x area: 5G1.5 mm²
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Colour outer sheath: White
- With protective conductor: Yes
- Outer diameter approximate: 9.5 mm
- Weight/100 m: 14.0 kg
- Nominal voltage U0: 300 V
- Shape of conductor: Round
- Nominal voltage U: 500 V
- Permitted cable outer temperature during assembling/handling: -10-70 °C
- Core colour: Several
- Diameter conductor: 1.4 mm
- Max. permitted conductor temperature: 70 °C
- Drain wire: No
- Protective barrier: None
- Armouring/reinforcement: None
- Conductor category: Class 1 = solid
- Conductor material: Copper
- Material outer sheath: Polyolefin
- Core identification: Colour
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Material core insulation: Other
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Certified for shipboard application: No
- Certified as airport lighting cable: No
- Specification core insulation: Polyethylene (PE)
- Low temperature resistant according to EN 60811-504+505+506: No
- Conductor surface: Bare
- Suitable as installation cable: Yes
- Min. permitted bending radius, stationary application/permanent installation: 11.2 mm
- Oil resistant according to EN IEC 60811-404: No
- Specification material outer sheath: Other
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- Twisted cores: Yes
- Lead sheath: No
- Number of cores: 5
- Nominal cross section conductor: 1.5 mm²
- Screen: No
- REACH Date: 2021-12-09
- REACH Information obligation: No
