NKT

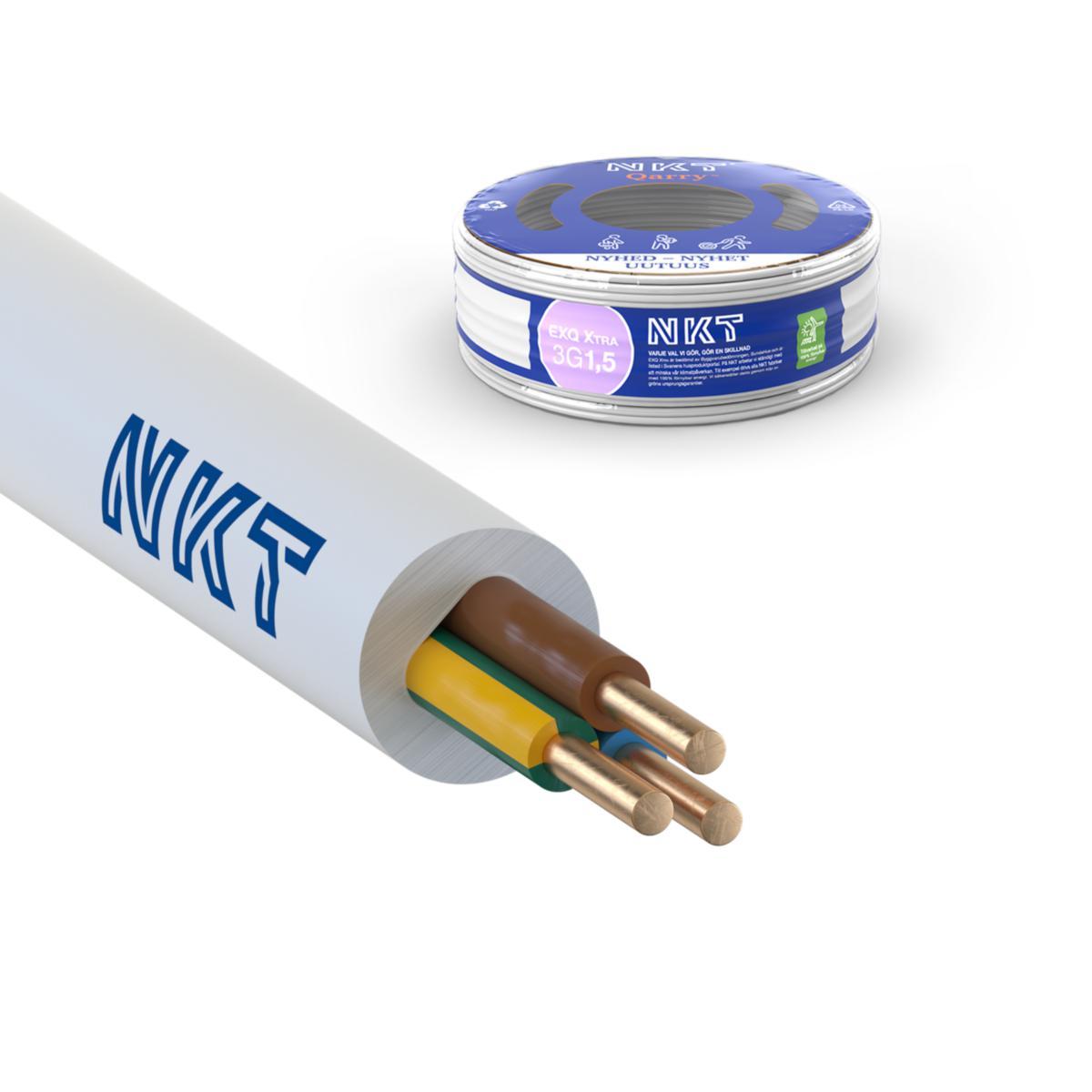

Installation cable EXQ-Xtra 300/500V Dca, Nkt
EXQ XTRA 3G1,5 DCA R50
Article number:
0447001
to see price and stock
Halogen-free cable. Use for fixed installation as well as in pipes or duct. The cables must be placed indoors and outdoors. The conductor insulation must be protected against UV light.
Conductor temperature: Max. 70 ° C, Short circuit temperature: Max. 250 ° C, Laying temperature: Min. -15 ° C, bending radius: 5 x D.
Leader: Indoor, annealed round copper, Insulation: PEX Part marking with protective conductor (G) 3-conductor: Green / yellow, blue, brown 4-conductor: Green / yellow, blue, brown, black 5-conductor: Green / yellow, blue , brown, black, gray, fill jacket EPDM, jacket: thermoplastic material, jacket color: white, certificate: SEMKO, standard: nkt cables factory standard 012, rated voltage: 300/500 V, test voltage: 2 kV AC, fire class: D, CE conformity : Low Voltage Directive.
Conductor temperature: Max. 70 ° C, Short circuit temperature: Max. 250 ° C, Laying temperature: Min. -15 ° C, bending radius: 5 x D.
Leader: Indoor, annealed round copper, Insulation: PEX Part marking with protective conductor (G) 3-conductor: Green / yellow, blue, brown 4-conductor: Green / yellow, blue, brown, black 5-conductor: Green / yellow, blue , brown, black, gray, fill jacket EPDM, jacket: thermoplastic material, jacket color: white, certificate: SEMKO, standard: nkt cables factory standard 012, rated voltage: 300/500 V, test voltage: 2 kV AC, fire class: D, CE conformity : Low Voltage Directive.
- Article number: 0447001
- Ean no: 5702950293154
- Material class QA7051
Technical data
- Packagin Size: 50 M/2100 M
- Cable type: EXQ-Xtra
- Dimension conductor x area: 3G1,5 mm²
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Outer diameter approximate: 8.1 mm
- Nominal voltage U0: 300 V
- Nominal voltage U: 500 V
- With protective conductor: Yes
- Colour outer sheath: White
- Conductor category: Class 1 = solid
- Conductor material: Copper
- Diameter conductor: 1.4 mm
- Shape of conductor: Round
- Max. permitted conductor temperature: 70 °C
- Core colour: Several
- Armouring/reinforcement: None
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- Screen: No
- Material core insulation: Other
- Core identification: Colour
- Specification core insulation: Polyethylene (PE)
- Nominal cross section conductor: 1.5 mm²
- Conductor surface: Bare
- Number of cores: 3
- Twisted cores: Yes
- Drain wire: No
- Weight/100 m: 10.0 kg
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Certified for shipboard application: No
- Certified as airport lighting cable: No
- Suitable as installation cable: Yes
- Protective barrier: None
- Material outer sheath: Polyolefin
- Oil resistant according to EN IEC 60811-404: No
- REACH Date: 2021-12-09
- REACH Information obligation: No
