Pmflex
Connection cable RQ Quick n Easy Dca, PM Flex
RQ 10 mm² Brown / X150
Article number: Suppl. article no:
0361237
0361237
to see price and stock

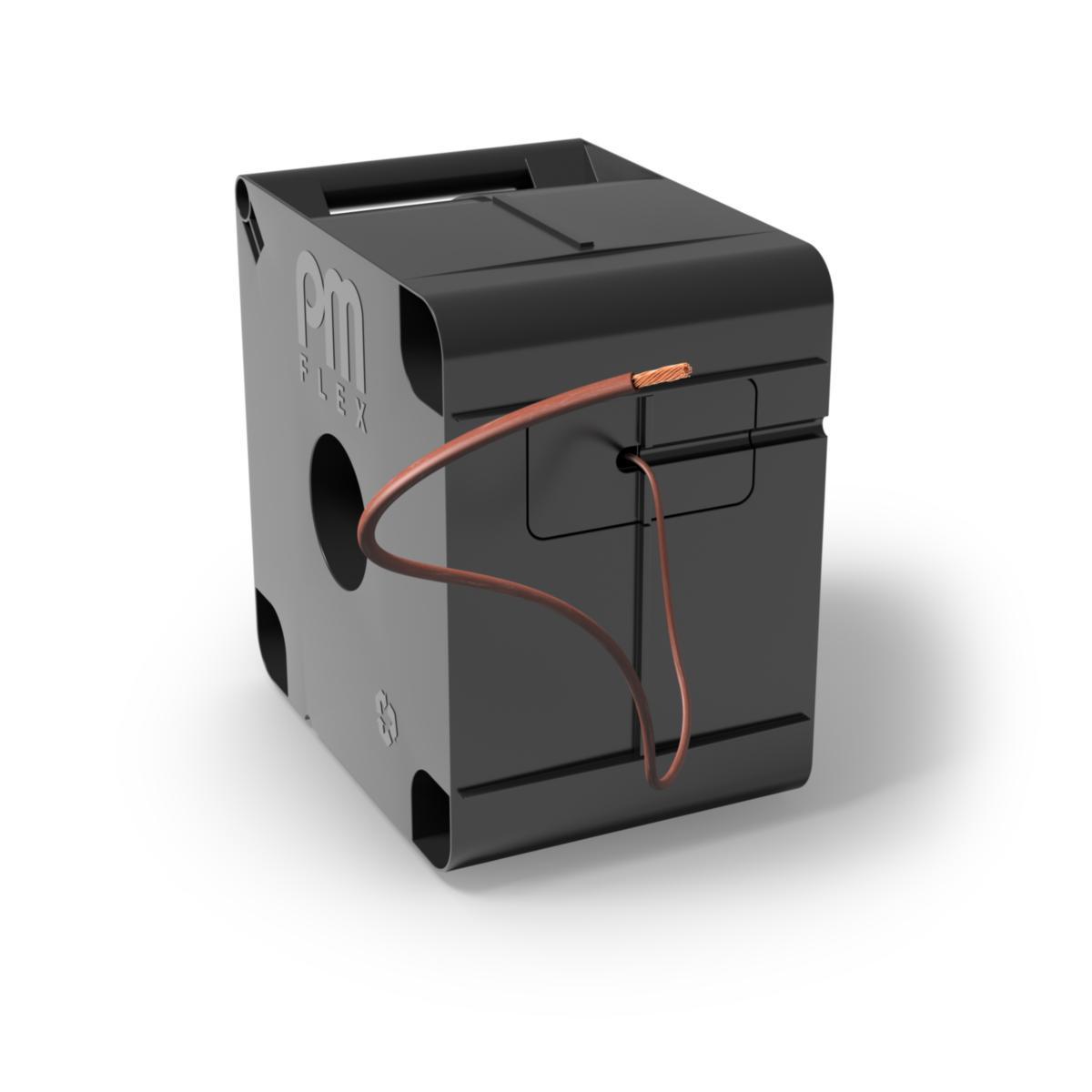

The box is made of 100% recycled material and has a high user-friendliness with a stable handle and cable fastening device.
RQ - round multi-stranded copper conductors with colored halogen-free insulation. The insulation of the conductors must be protected against direct UV light, which can occur, for example, in lighting fixtures, light signs or the like. The cable meets fire spread class D.
RQ - round multi-stranded copper conductors with colored halogen-free insulation. The insulation of the conductors must be protected against direct UV light, which can occur, for example, in lighting fixtures, light signs or the like. The cable meets fire spread class D.
- Article number: 0361237
- Suppl. article no: 0361237
- Ean no: 7332367700143
- Replaces art.nbr: 0358637
- Material class QA5051
Technical data
- Packagin Size: 150 M
- Cable type: RQ
- Dimension conductor x area: 10 mm²
- Colour outer sheath: Brown
- Outer diameter approximate: 5.5 mm
- Weight/100 m: 11.9 kg
- Nominal voltage U0: 450 V
- Nominal voltage U: 750 V
- Permitted cable outer temperature during assembling/handling: -10-90 °C
- Permitted cable outer temperature after assembling without vibration: -10-90 °C
- Diameter conductor: 4 mm
- Max. permitted conductor temperature: 250 °C
- Drain wire: No
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Protective barrier: None
- Armouring/reinforcement: None
- Conductor category: Class 5 = flexible
- Conductor material: Copper
- Material outer sheath: Polyolefin
- Core identification: Colour
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Material core insulation: Other
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Specification core insulation: Polyethylene (PE)
- Conductor surface: Bare
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- Flame retardant according to IEC 60332-1-2: Yes
- Halogen free according to EN IEC 60754-1: Yes
- Halogen free according to EN IEC 60754-2: Yes
- Low smoke according to EN IEC 61034-2: Yes
- Number of cores: 1
- Nominal cross section conductor: 10 mm²
- Screen: No
- REACH Date: 2022-09-02
- REACH Information obligation: No
- Insulation integrity according to IEC 60331: No
