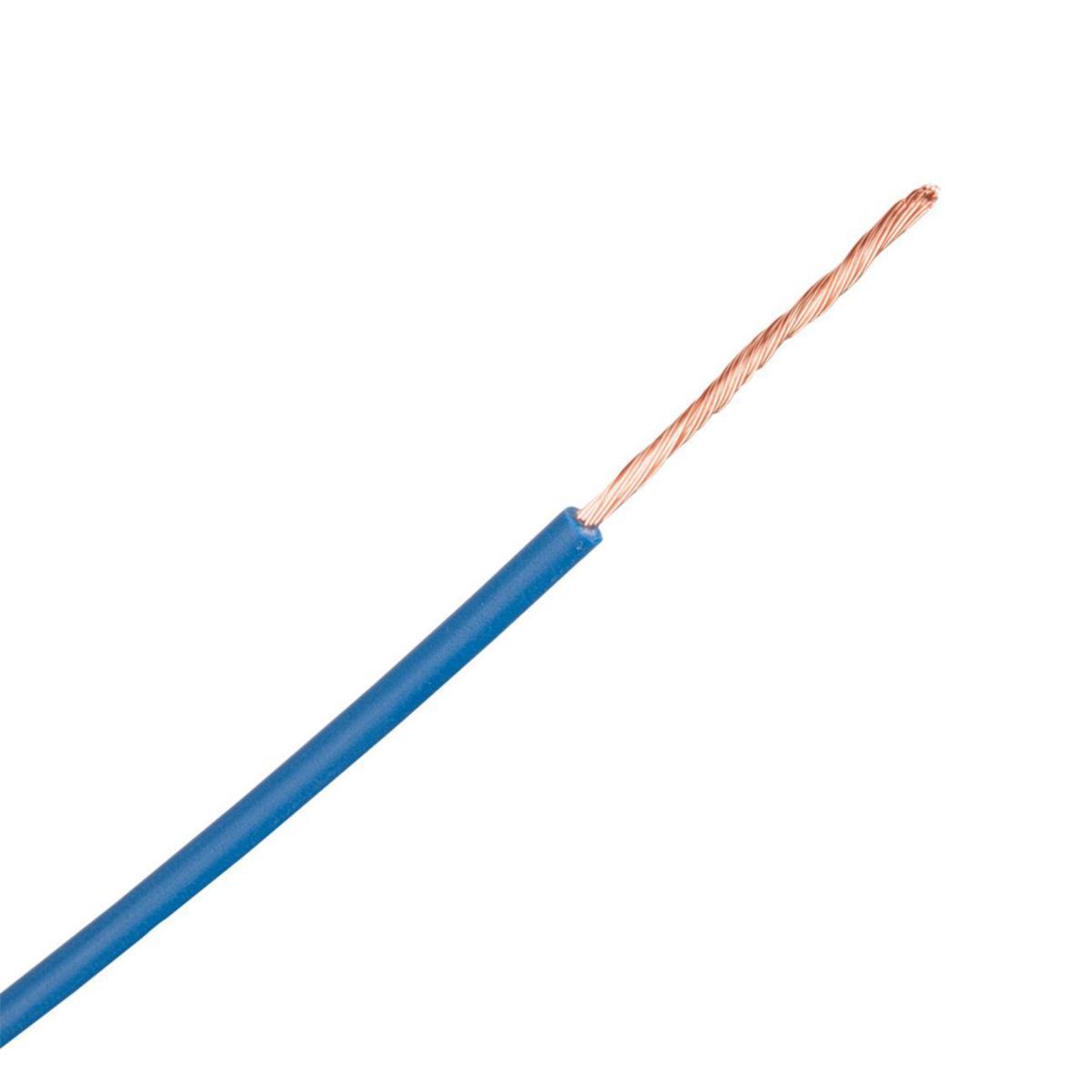

Connection cable RQ (H07Z1-K) 450/750V ≥4.0mm² Dca
RQ 4 450/750V BLUE (*3)
Article number: Suppl. article no:
0345090
11195341-804-00
to see price and stock
The cable is primarily intended to be used for internal connections in junction cabinets or the like. RQ is a halogen-free, HFFR-insulated, coupling line with a round multi-stranded copper conductor. The cable is constructed according to SS 424 02 31-3 in applicable parts. The conductor has resistance according to IEC 60228 class 5. The insulation is marked "NEXANS GS Z1 SEMKO AREA mm2" or "NEXANS GS SEMKO area mm² HALOGEN FREE". RQ meets fire spread class D. The cable is approved by SEMKO.
- Article number: 0345090
- Suppl. article no: 11195341-804-00
- Ean no: 7330000168565
- Replaces art.nbr: 0351870
- Material class QA4700
Technical data
- Cable type: RQ
- Dimension conductor x area: 4 mm²
- Core colour: Blue
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Outer diameter approximate: 4.1 mm
- Nominal voltage U0: 450 V
- Nominal voltage U: 750 V
- Conductor category: Class 5 = flexible
- Conductor material: Copper
- Diameter conductor: 4 mm
- Max. permitted conductor temperature: 70 °C
- Armouring/reinforcement: None
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- Screen: No
- Material core insulation: Polyolefin
- Core identification: Colour
- Nominal cross section conductor: 4 mm²
- Conductor surface: Bare
- Number of cores: 1
- Cable geometry: Round
- Permitted cable outer temperature after assembling without vibration: -40-70 °C
- Drain wire: No
- Low temperature resistant according to EN 60811-504+505+506: Yes
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Permitted cable outer temperature during assembling/handling: -10-50 °C
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Protective barrier: None
- REACH Date: 2022-04-20
- REACH Information obligation: No
