Connection cable for solar panels H1Z2Z2-K
Solar cable H1Z2Z2-K 1x4 Red
Article number: Suppl. article no:
0516575
7333123856517
to see price and stock

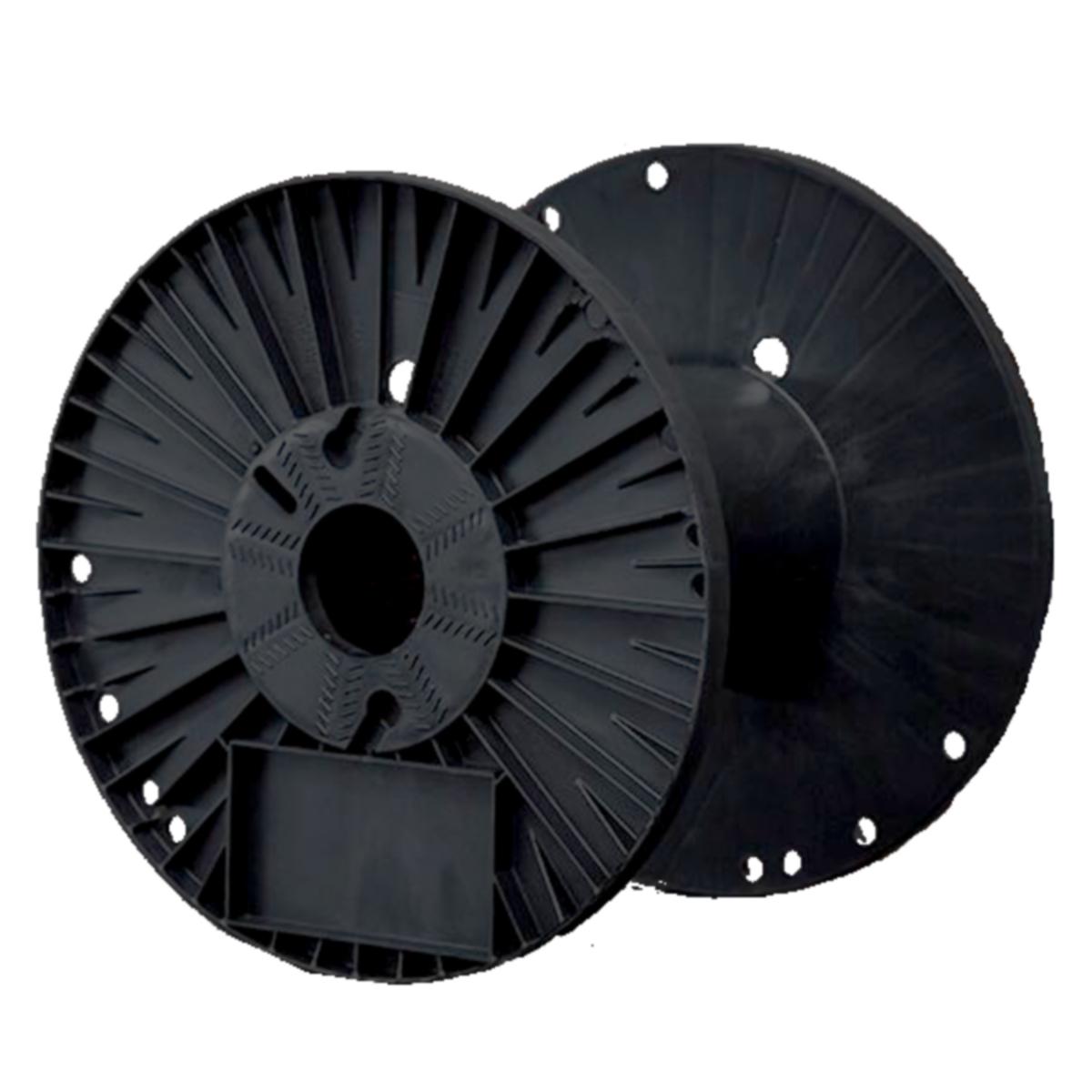

Cable intended for solar panels. For connecting the modules and connecting the modules to the inverter. Durable, double insulated, halogen-free and UV resistant. Designed and tested according to European standard: EN 50618.CPR class: ECA. Water resistant according to AD8. Full lengths are delivered on the plastic reel.
- Article number: 0516575
- Suppl. article no: 7333123856517
- Ean no: 7333123856517
- Material class QA5560
Technical data
- Packagin Size: 500 M/6000 M
- Cable type: H1Z2Z2-K
- Dimension conductor x area: 1x4 mm²
- Nominal cross section conductor: 4 mm²
- With protective conductor: FALSE
- Number of cores: 1
- Colour outer sheath: Red
- Outer diameter approximate: 6.5 mm
- Reaction-to-fire according to EN 13501-6: Class: Eca
- Low temperature resistant according to EN 60811-504+505+506: TRUE
- Permitted cable outer temperature after assembling without vibration: -40-90
- Conductor category: Class 5 = flexible
- Oil resistant according to EN IEC 60811-404: TRUE
- Conductor material: Copper
- Conductor surface: Tinned
- Max. permitted conductor temperature: 90 °C
- Min. permitted bending radius, stationary application/permanent installation: 26 mm
- Cable geometry: Round
- Shape of conductor: Round
- Conductor resistance at 20 °C: 5.09 Ohm/km
- Halogen free according to EN IEC 60754-1: TRUE
