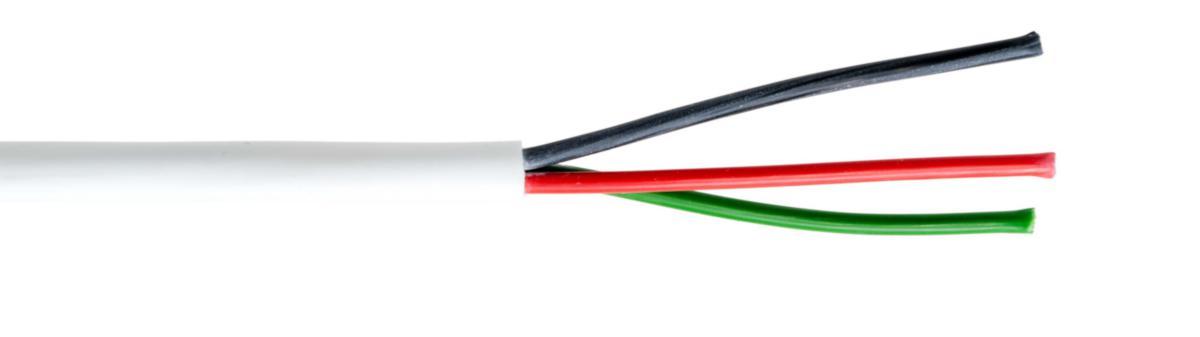

Control and communication cable halogen-free Flex-H-OB Siox, Rutab - FLEX-H 3x1,5
Rutab

Control and communication cable halogen-free Flex-H-OB Siox, Rutab

FLEX-H 3x1,5
Article number:
0254700
Suppl. article no:
0254700
The selected article has been replaced.
Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.
Halogen-free flexible guide and communication cable adapted for SIOX. The fine-wire structure provides a cable with a small bending radius. The special conductor marking facilitates connection. Can be used in dry and wet areas. The cable is especially suitable in installations where high security is required. The cable is difficult to ignite, flame retardant and self-extinguishing. In the event of a fire, it does not reproduce flames, emits no corrosive gases and produces little smoke. The cable is construction product assessed and CPR classified, Cca.
  • Article number:
    0254700
  • Suppl. article no:
    0254700
  • Material class
    QR1010
Technical data
  • Packagin Size: 1 M/500 M
  • Dimension conductor x area: 3x1,5 mm²
  • Conductor category: Class 5 = flexible
  • Colour outer sheath: White
  • Outer diameter approximate: 7 mm
  • Material core insulation: Other
  • Core identification: Colour
  • With protective conductor: No
  • Material outer sheath: Other
  • Reaction-to-fire according to EN 13501-6: Class: Cca
  • Reaction-to-fire according to EN 13501-6: Smoke production: s1a
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d1
  • Reaction-to-fire according to EN 13501-6: Acidity: a1
  • Min. permitted bending radius, moving application/free movement: 70 mm
  • Min. permitted bending radius, stationary application/permanent installation: 35 mm
  • Permitted cable outer temperature during assembling/handling: -15-70 °C
  • Permitted cable outer temperature after assembling without vibration: -40-80 °C
  • Nominal voltage U0: 300 V
  • Nominal voltage U: 500 V
  • Cable geometry: Round
  • Shape of conductor: Round
  • Conductor material: Copper
  • Conductor resistance at 20 °C: 13.3 Ohm/km
  • Conductor surface: Bare
  • Core identification according to HD 308 S2: No
  • Max. permitted conductor temperature: 80 °C
  • Weight: 86 kg/km
  • Nominal cross section conductor: 1.5 mm²
  • Number of cores: 3
  • REACH Date: 2021-11-02
  • REACH Information obligation: No
