AhlsellProductsElectricCable 00-05, 48-4901 Control cable, single core and strandedControl cable halogen-free
NKT

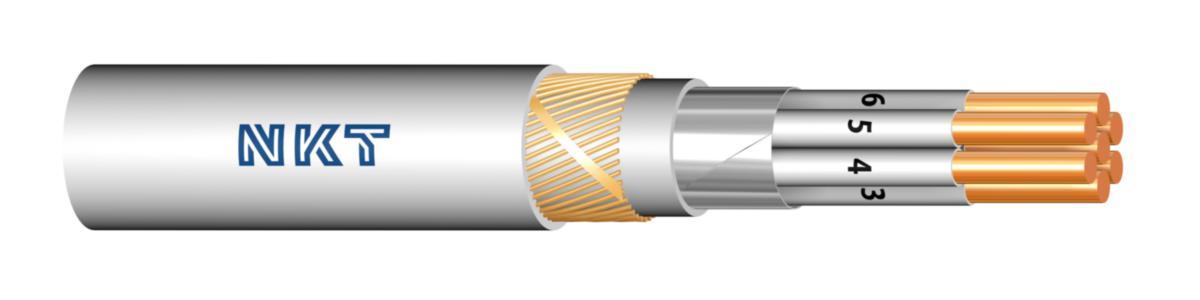

Control cable EQFR 300/500V Dca, Nkt
EQFR 10X1.5 DCA (*5)
Article number:
0157770
to see price and stock
Halogen-free cable, which in case of fire emits smoke free from corrosive gases and with low smoke density. For fixed placement indoors and outdoors. The cable is well suited for installations where external electrical interference is feared.
- Article number: 0157770
- Ean no: 7394479011975
- Material class QA3200
Technical data
- Cable type: EQFR
- Dimension conductor x area: 10x1.5 mm²
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Outer diameter approximate: 18 mm
- Nominal voltage U: 500 V
- Screen over stranding element: None
- Screen over stranding: Other
- Colour outer sheath: Grey
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- Material core insulation: Polyolefin
- Conductor category: Class 1 = solid
- Conductor material: Copper
- Core identification: Numbers
- Nominal cross section conductor: 1.5 mm²
- Conductor surface: Bare
- Number of cores: 10
- Cable geometry: Round
- Weight/100 m: 34 kg
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Stranding element: No
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Material outer sheath: Polyolefin
- Oil resistant according to EN IEC 60811-404: No
- REACH Date: 2021-12-09
- REACH Information obligation: No
