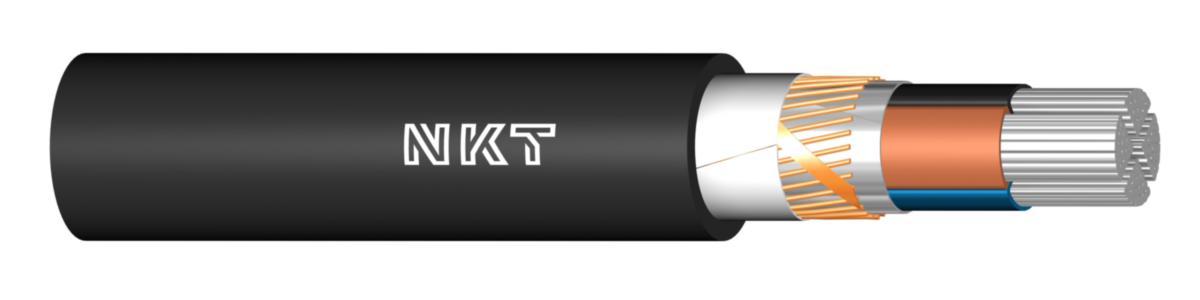

Ground cable AXQJ Full screen 1kV Dca, NKT
AXQJ 4X240/146 T500 ALUMINIUM 1 KV LSZH
Article number:
0017985
to see price and stock
Halogen-free cable that in case of fire emits smoke with low smoke density and free from corrosive gases. The 4-conductors with full screen area for use in 5-conductor systems. Fixed installation, indoors and outdoors, in pipes and in soil/water.
- Article number: 0017985
- Ean no: 7394479008289
- Material class QA195A
Technical data
- Packagin Size: 500 M
- Cable type: AXQJ
- Dimension conductor x area: 4x240/146 mm²
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Outer diameter approximate: 57 mm
- Nominal voltage U0: 0.6 kV
- Nominal voltage U: 1 kV
- With protective conductor: No
- Colour outer sheath: Black
- Conductor category: Class 2 = stranded
- Conductor material: Aluminium
- Shape of conductor: Sector-shaped
- Max. permitted conductor temperature: 90 °C
- Low smoke according to EN IEC 61034-2: Yes
- Halogen free according to EN IEC 60754-2: Yes
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- Screen: Yes
- Material core insulation: Other
- Core identification: Colour
- Specification core insulation: Crosslinked polyethylene (XLPE)
- Nominal cross section conductor: 240 mm²
- Conductor surface: Bare
- Number of cores: 4
- Cable geometry: Round
- Lead sheath: No
- Drain wire: No
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Certified for shipboard application: No
- Certified as airport lighting cable: No
- Suitable as installation cable: No
- Suitable as medium-voltage cable: No
- Material outer sheath: Polyolefin
- REACH Date: 2021-12-09
- REACH Information obligation: No
