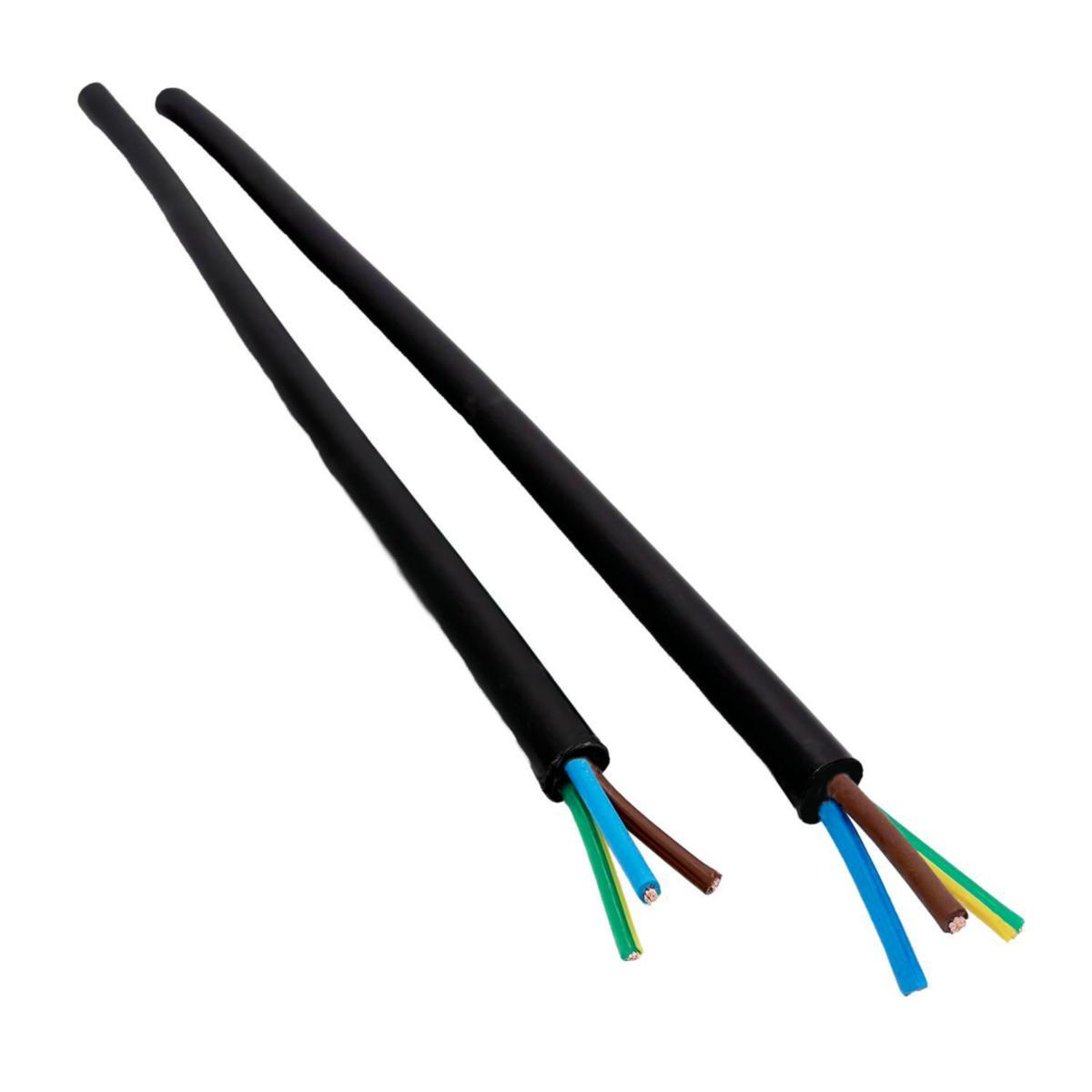

Ground cable FXQ 1kV Dca
FXQ 3G1,5
Article number: Suppl. article no:
0012890
7333123864338
to see price and stock
The cable is intended for fixed installation indoors and outdoors in air, ground and water. The FXQ cable is Halogen-free according to EN 60754-2. Installation cable with stranded copper conductor, the conductor has a wire count and resistance according to IEC 60228 class 2. The cable meets fire spread class D and is UV-protected according to HD605S3.
- Article number: 0012890
- Suppl. article no: 7333123864338
- Ean no: 7333123864338
- Material class QA0910
Technical data
- Cable type: FXQ
- Dimension conductor x area: 3G1.5 mm²
- Outer diameter approximate: 11.5 mm
- Screen: No
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Permitted cable outer temperature during assembling/handling: -20-90 °C
- Permitted cable outer temperature after assembling without vibration: -20-90 °C
- Conductor category: Class 2 = stranded
- Material core insulation: Other
- Armouring/reinforcement: None
- Drain wire: No
- Conductor material: Copper
- Conductor surface: Bare
- Max. permitted conductor temperature: 90 °C
- Core identification: Colour
- Protective barrier: None
- Specification core insulation: Crosslinked polyethylene (XLPE)
- Specification material outer sheath: Other
- Shape of conductor: Round
- Suitable as installation cable: Yes
- Core identification according to HD 308 S2: Yes
- Weight: 195 kg/km
- Lead sheath: No
- Flame retardant according to IEC 60332-1-2: Yes
- Halogen free according to EN IEC 60754-2: Yes
- Low smoke according to EN IEC 61034-2: Yes
- Nominal cross section conductor: 1.5 mm²
- Number of cores: 3
- REACH Date: 2024-12-09
- REACH Information obligation: No
