Schneider Electric

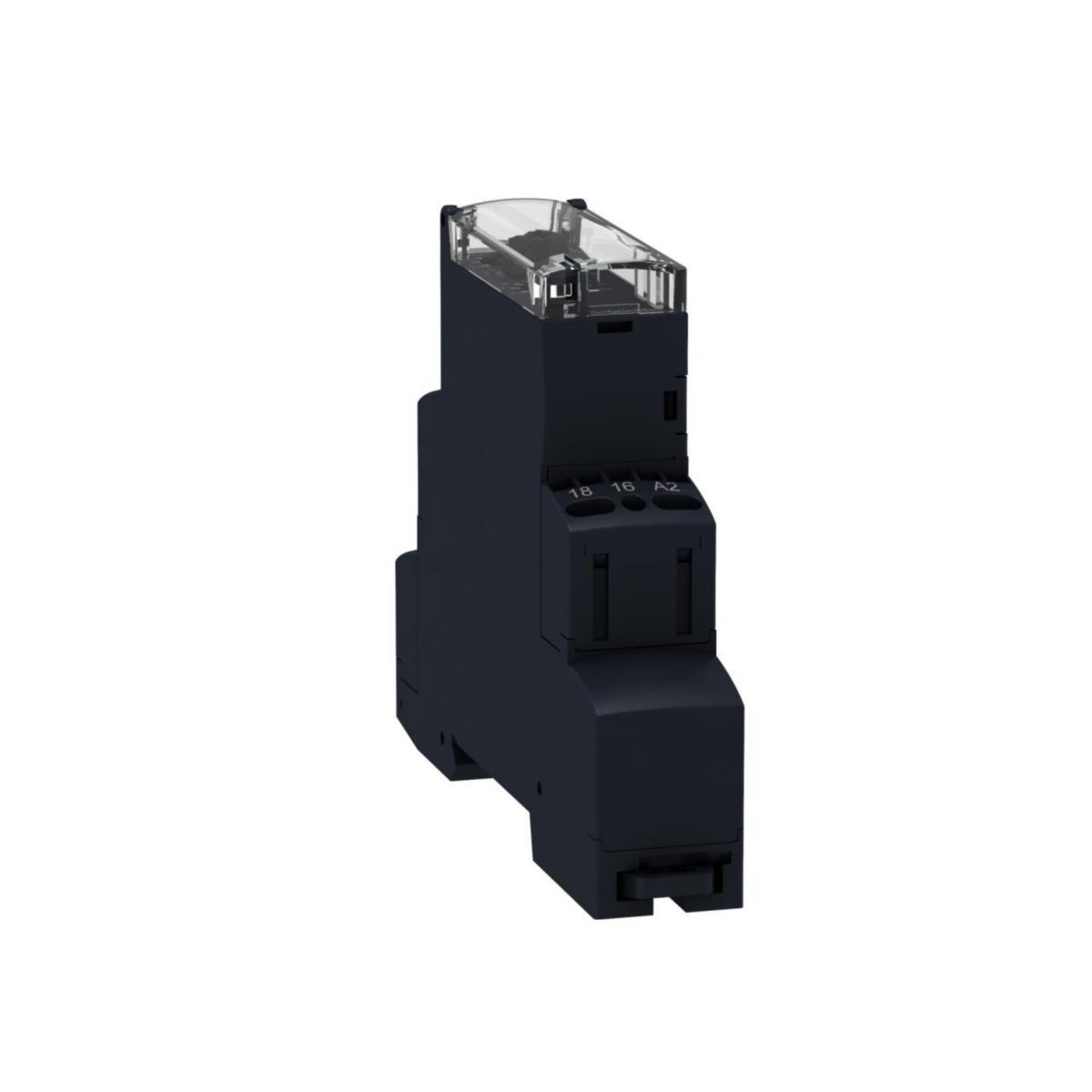

Timer relay standard RE17
MULTIFUNC TIMER 1C O 12 240VAC RE17RMMW
Article number: Suppl. article no:
4030024
RE17RMMW
to see price and stock
Time range 0, 1s-100 h, unless otherwise stated.
- Article number: 4030024
- Suppl. article no: RE17RMMW
- Ean no: 3606480552762
- Material class QP550B
Technical data
- Packagin Size: 1 ST/40 ST/320 ST
- Type: RE17RMMW
- Design: Multifunction 10 functions
- Rated control supply voltage AC 50 Hz: 12-240 V
- Type of electric connection: Screw connection
- Voltage type for actuating: AC/DC
- Time range: 0.1-360000 s
- Rated control supply voltage AC 60 Hz: 12-240 V
- Nominal current: 8 A
- Function delay-on energization: Yes
- Function delay on de-energization: Yes
- Function floating contact on energization: Yes
- Function floating contact on de-energization: Yes
- Function star-delta: Yes
- Function pulse shaping: Yes
- Function flashing, starting with pause, fixed time: Yes
- Function flashing, starting with pulse, fixed time: Yes
- Clock function, starting with pause, variable: Yes
- Clock function, starting with pulse, variable: Yes
- Remote operation possible: No
- Suitable as remote control: No
- Pluggable on auxiliary contact block: No
- Number of outputs, undelayed, normally closed contact: 0
- Number of outputs, undelayed, normally open contact: 0
- Number of outputs, undelayed, change-over contact: 1
- Number of outputs, delayed, normally closed contact: 0
- Number of outputs, delayed, normally open contact: 0
- Number of outputs, delayed, change-over contact: 1
- Outputs, reversible delayed/undelayed: No
- With semiconductor output: No
- Width: 17.5 mm
- Height: 90 mm
- Depth: 72 mm
- Complete with socket: No
- Suitable for DIN rail (top hat rail) mounting: Yes
- Output: 1 Alternating
- REACH Date: 2025-07-18
- REACH contains candidate substances: Bly | Boroxid, Diboron trioxide | Lead oxide, Blyoxid, Blymonoxid, C.I. Pigment Yellow 46 , C.I. 77577, Litharge, Lead(II) oxide
- REACH Information obligation: Yes
- With plug-in socket: No
