Telemecanique

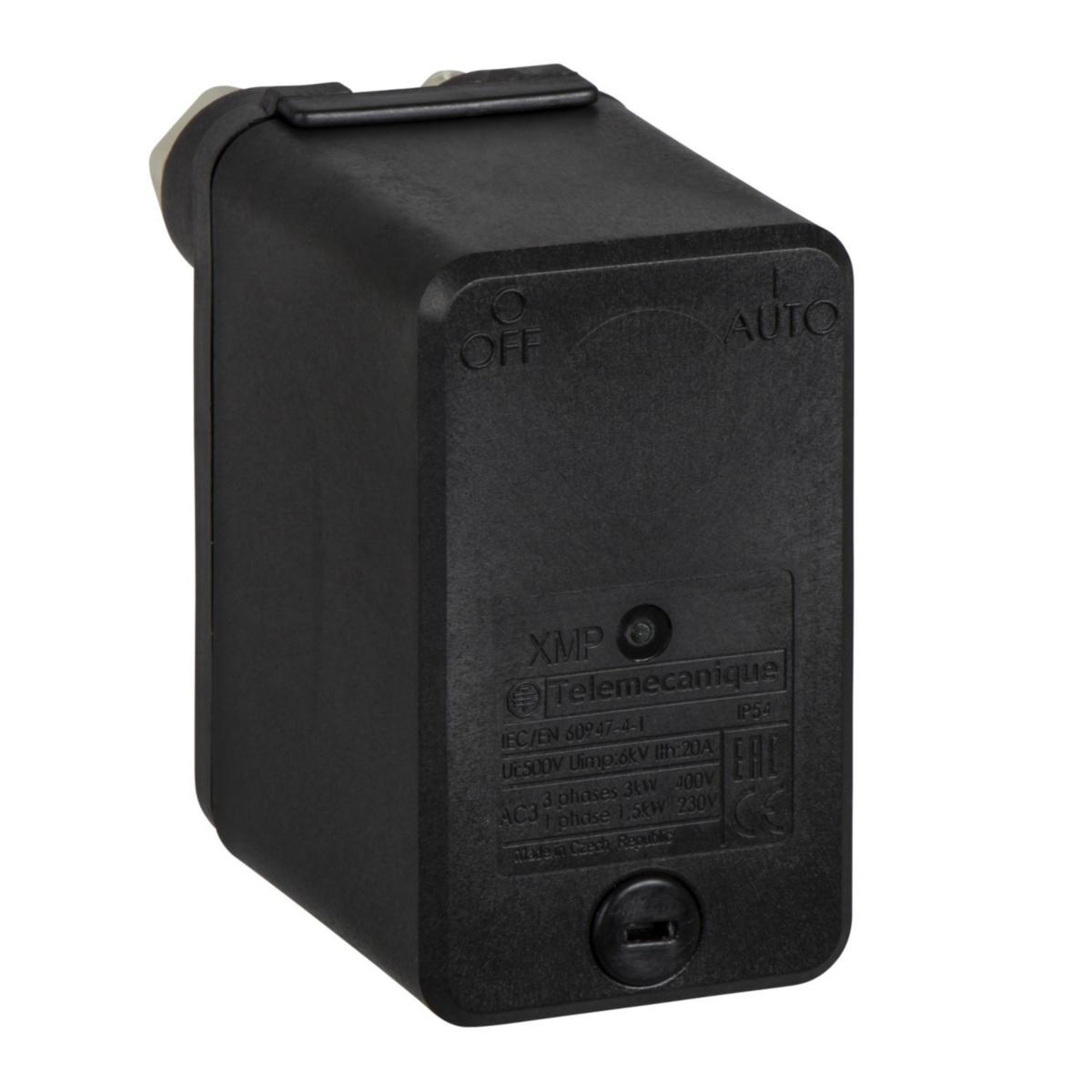

Pressure switch XMP without venting valve
PRESSURE QUARD XMPA06C2374N
Article number: Suppl. article no:
3877110
XMPA06C2374N
to see price and stock
3 pole, 20 A 500 v. Secure execution IP 65.
For pressure regulation between two pressure levels. Copes with hydraulic fluid, air, freshwater and salt water.
* = setting wheel to be ordered separately.
For pressure regulation between two pressure levels. Copes with hydraulic fluid, air, freshwater and salt water.
* = setting wheel to be ordered separately.
- Article number: 3877110
- Suppl. article no: XMPA06C2374N
- Ean no: 3389118307766
- Material class QP309B
Technical data
- Packagin Size: 1 ST/9 ST
- Type: XMPA06C2374N
- Suitable as guard: No
- Suitable as 2-point controller: Yes
- Suitable as limiter: Yes
- Type of electric connection: Screw connection
- Engaging pressure: 1-6 bar
- Initial setting: 1000-6000 hPa
- Switch off pressure: 0.2-4.8 bar
- End setting: 200-4800 hPa
- Pressure-switching differential: 4.2 bar
- Max. test pressure: 0
- Bursting pressure: 30 bar
- Medium temperature: 0-70 °C
- Rated voltage Ue at AC 50 Hz: 230-400 V
- Rated voltage Ue at AC 60 Hz: 230-400 V
- Number of normally open contacts as main contact: 0
- Number of normally closed contacts as main contact: 3
- Number of auxiliary contacts as normally open contact: 0
- Number of auxiliary contacts as normally closed contact: 0
- Number of auxiliary contacts as change-over contact: 0
- Switching capacity at AC-3, 240 V: 0 kA
- Thread size: Other
- Max. operating pressure: 6000 hPa
- Rated operation current Ie at AC-3, 400 V: 0 A
- Width: 57 mm
- Rated operation power at AC-3, 400 V: 0 kW
- Height: 106 mm
- Depth: 98 mm
- End value measuring range pressure: 600000 Pa
- REACH Date: 2022-07-20
- Rated operation current Ie at AC-1, 400 V: 0 A
- Max. operation pressure: 6000
- REACH contains candidate substances: Bly | 1,2-dimetoxietan, Dimethyl Glycol, 1,2-dimethoxyethane
- Initial value measuring range pressure: 100000 Pa
- Degree of protection (IP): IP65/IP67
- Electronic version: No
- REACH Information obligation: Yes
- With manual on/off switch: No
- With hand operation: No
- Explosion-proof: No
- With display: No
- Degree of protection (NEMA): Other
