Schneider Electric

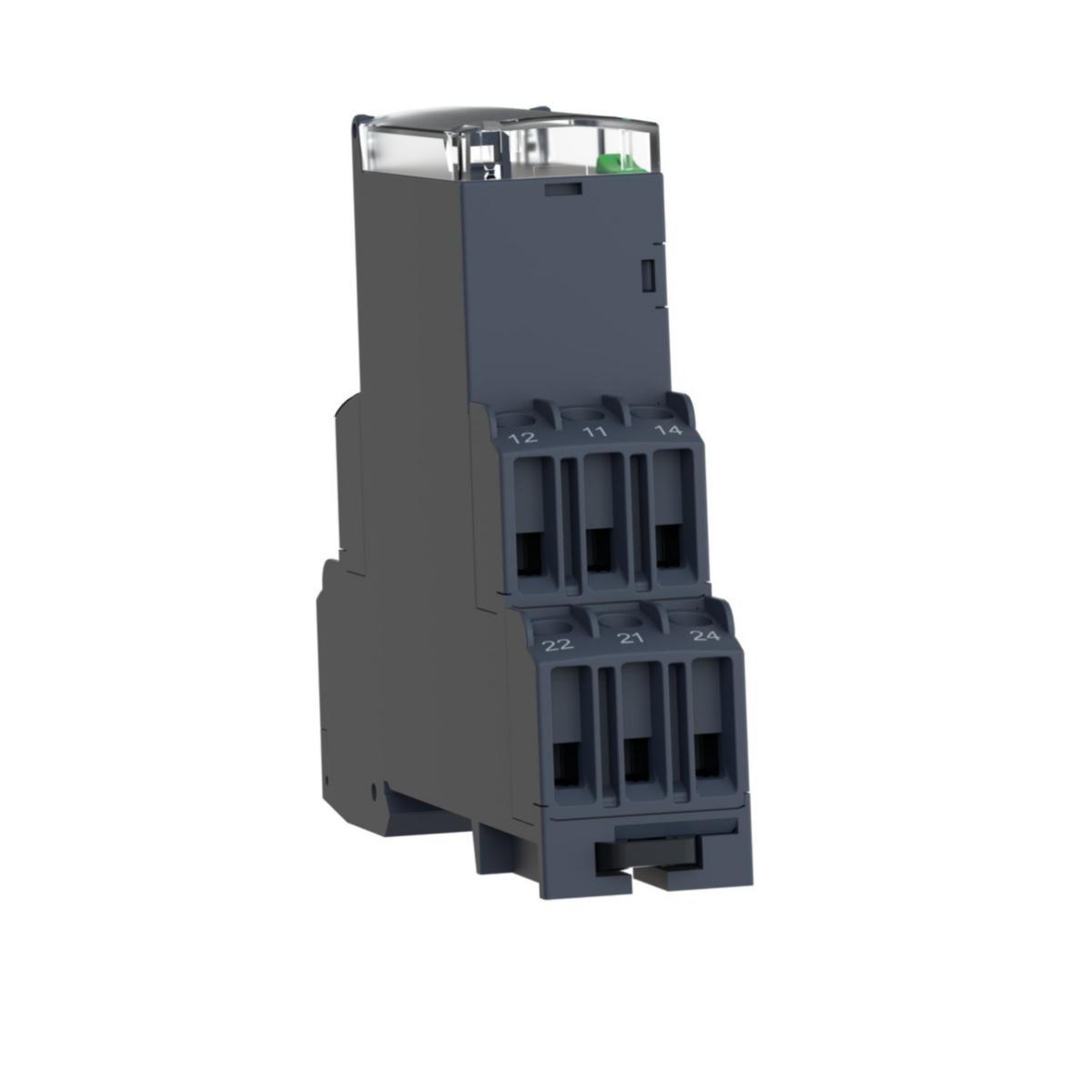

Control relay RM22T
3 PHASE CONTROL RELAY RM22-TG RM22TG20
Article number: Suppl. article no:
3860779
RM22TG20
to see price and stock
Control relay RM22T
- Article number: 3860779
- Suppl. article no: RM22TG20
- Ean no: 3606480792137
- Material class QP550B
Technical data
- Packagin Size: 1 ST/40 ST
- Type: RM22TG20
- Type of electric connection: Screw connection
- With detachable clamps: FALSE
- Phase sequence monitoring: TRUE
- Voltage type for actuating: AC
- Phase failure detection: TRUE
- Function under voltage detection: FALSE
- Function overvoltage detection: FALSE
- Phase imbalance monitoring: FALSE
- Voltage measuring range: 183-528 V
- Min. adjustable delay-on energization time: 0 s
- Max. permitted delay-on energization time: 0 s
- Min. adjustable off-delay time: 0 s
- Max. permitted off-delay time: 0 s
- Number of contacts as normally closed contact: 0
- Number of contacts as normally open contact: 0
- Number of contacts as change-over contact: 2
- Width: 22.5 mm
- Height: 90 mm
- Depth: 73 mm
- Rated control supply voltage AC 60 Hz: 208-480 V
- REACH Date: 2023-12-31
- REACH contains candidate substances: Lead oxide, Blyoxid, Blymonoxid, C.I. Pigment Yellow 46 , C.I. 77577, Litharge, Lead(II) oxide
- Rated control supply voltage AC 50 Hz: 208-480 V
- REACH Information obligation: Yes
