Security module XPSUAF
XPSUAF13AP XPSUAF13AP
Article number: Suppl. article no:
4509150
XPSUAF13AP
to see price and stock

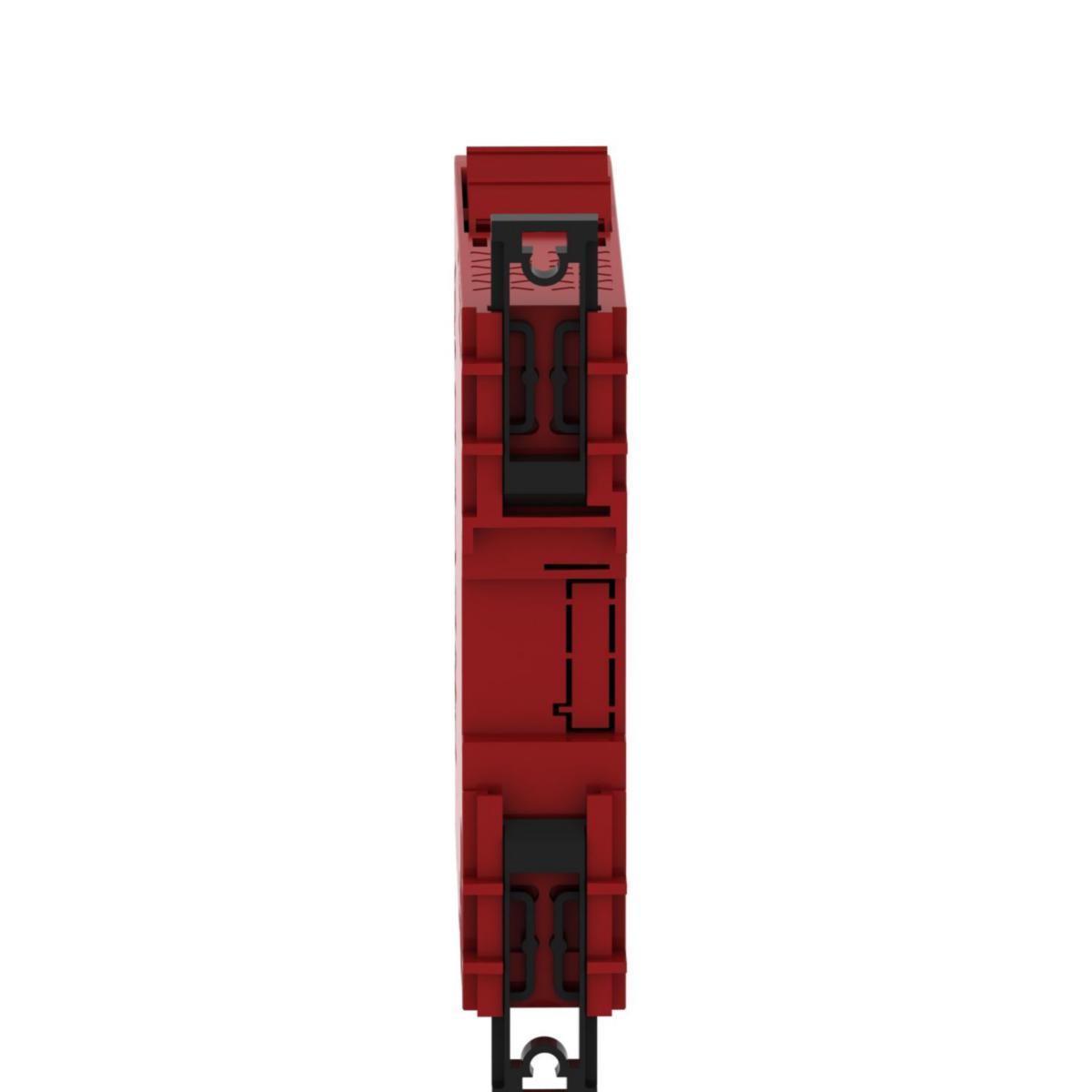

Security module, Modicon, XPS Universal, UAF Cat.4
- Article number: 4509150
- Suppl. article no: XPSUAF13AP
- Ean no: 3606489601614
- Material class QP720B
Technical data
- Packagin Size: 1 ST/16 ST
- Model: Basic device
- Rated control supply voltage DC: 24 V
- With detachable clamps: Yes
- Number of outputs, safety related, undelayed, with contact: 3
- Number of outputs, safety related, delayed, with contact: 0
- Number of outputs, signalling function, undelayed, with contact: 0
- Number of outputs, signalling function, delayed, with contact: 0
- Number of outputs, signalling function, undelayed, semiconductors: 0
- Number of outputs, signalling function, delayed, semiconductors: 0
- Number of outputs, safety related, delayed, semiconductors: 0
- Number of outputs, safety related, undelayed, semiconductors: 0
- Type of electric connection: Screw connection
- Suitable for rail mounting: Yes
- Performance level according to EN ISO 13849-1: Level e
- Evaluation inputs: 2-channel
- With start input: Yes
- With muting function: No
- With feedback circuit: Yes
- Suitable for monitoring of position switches: Yes
- Suitable for monitoring of magnetic switches: Yes
- Suitable for monitoring of proximity switches: Yes
- Suitable for monitoring of emergency-stop circuits: Yes
- Suitable for monitoring of optoelectronic protection equipment: Yes
- Suitable for monitoring of tactile sensors: No
- Suitable for monitoring of valves: No
- Width: 22.5 mm
- Depth: 120 mm
- Height: 100 mm
- With approval according to UL: Yes
- Stop category according to IEC 60204: 0
- With approval for BG BIA: No
- Voltage type for actuating: AC/DC
- Release-delay: 0 s
- With approval for TÜV: Yes
- Type of safety according to IEC 61496-1: 4
- Operating voltage DC: 24 V
- Power consumption: 1.1 W
- Control voltage 1: 24 V
- Control voltage 2: 24 V
- Supply voltage DC: 24 V
- Rated control supply voltage AC 60 Hz: 24 V
- Rated switch current: 1.1 A
- SIL according to IEC 61508: 3
- Voltage type (supply voltage): DC
- Type of control voltage 1: DC
- Type of control voltage 2: DC
- Voltage type (operating voltage): DC
- REACH Date: 2025-07-18
- REACH contains candidate substances: Bly | 1,3,5-Tris(oxiran-2-ylmethyl)-1,3,5-triazinane-2,4,6-trione (TGIC) | Lead oxide, Blyoxid, Blymonoxid, C.I. Pigment Yellow 46 , C.I. 77577, Litharge, Lead(II) oxide
- Rated control supply voltage AC 50 Hz: 24 V
- REACH Information obligation: Yes
