ABB

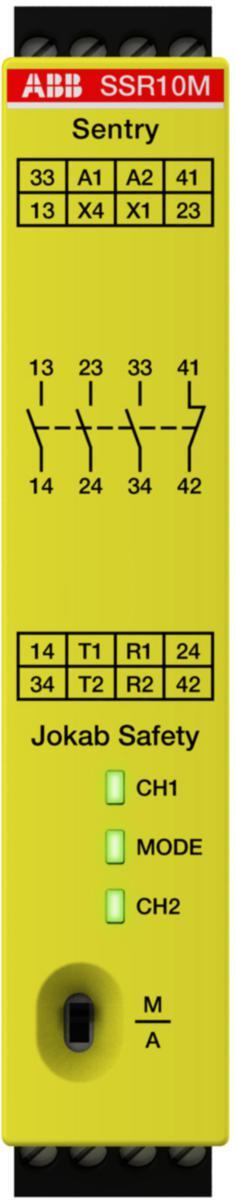

Safety relay Sentry
SAFETYRELAY SSR10M 85-265 VAC SSR10M
Article number: Suppl. article no:
3860820
2TLA010050R0100
to see price and stock
Circuit breaker in standard design
- Article number: 3860820
- Suppl. article no: 2TLA010050R0100
- Ean no: 7350024483291
- Material class QP200B
Technical data
- Model: Other
- Rated control supply voltage DC: 120-375 V
- With detachable clamps: Yes
- Number of outputs, safety related, undelayed, with contact: 4
- Number of outputs, safety related, delayed, with contact: 0
- Number of outputs, signalling function, undelayed, with contact: 1
- Number of outputs, signalling function, delayed, with contact: 0
- Number of outputs, signalling function, undelayed, semiconductors: 0
- Number of outputs, signalling function, delayed, semiconductors: 0
- Number of outputs, safety related, delayed, semiconductors: 0
- Number of outputs, safety related, undelayed, semiconductors: 0
- Type of electric connection: Screw connection
- Suitable for rail mounting: Yes
- Performance level according to EN ISO 13849-1: Level e
- Evaluation inputs: 2-channel
- With start input: Yes
- With muting function: No
- With feedback circuit: Yes
- Suitable for monitoring of position switches: No
- Suitable for monitoring of magnetic switches: No
- Suitable for monitoring of proximity switches: No
- Suitable for monitoring of emergency-stop circuits: Yes
- Suitable for monitoring of optoelectronic protection equipment: No
- Suitable for monitoring of tactile sensors: No
- Suitable for monitoring of valves: No
- Width: 22.5 mm
- Depth: 120 mm
- Height: 120 mm
- With approval according to UL: Yes
- Stop category according to IEC 60204: 0
- With approval for BG BIA: No
- Voltage type for actuating: AC/DC
- Release-delay: 20 s
- With approval for TÜV: Yes
- Type of safety according to IEC 61496-1: None
- Rated control supply voltage AC 60 Hz: 85-265 V
- SIL according to IEC 61508: 3
- REACH Date: 2023-01-18
- Rated control supply voltage AC 50 Hz: 85-265 V
- REACH Information obligation: No
