Telemecanique

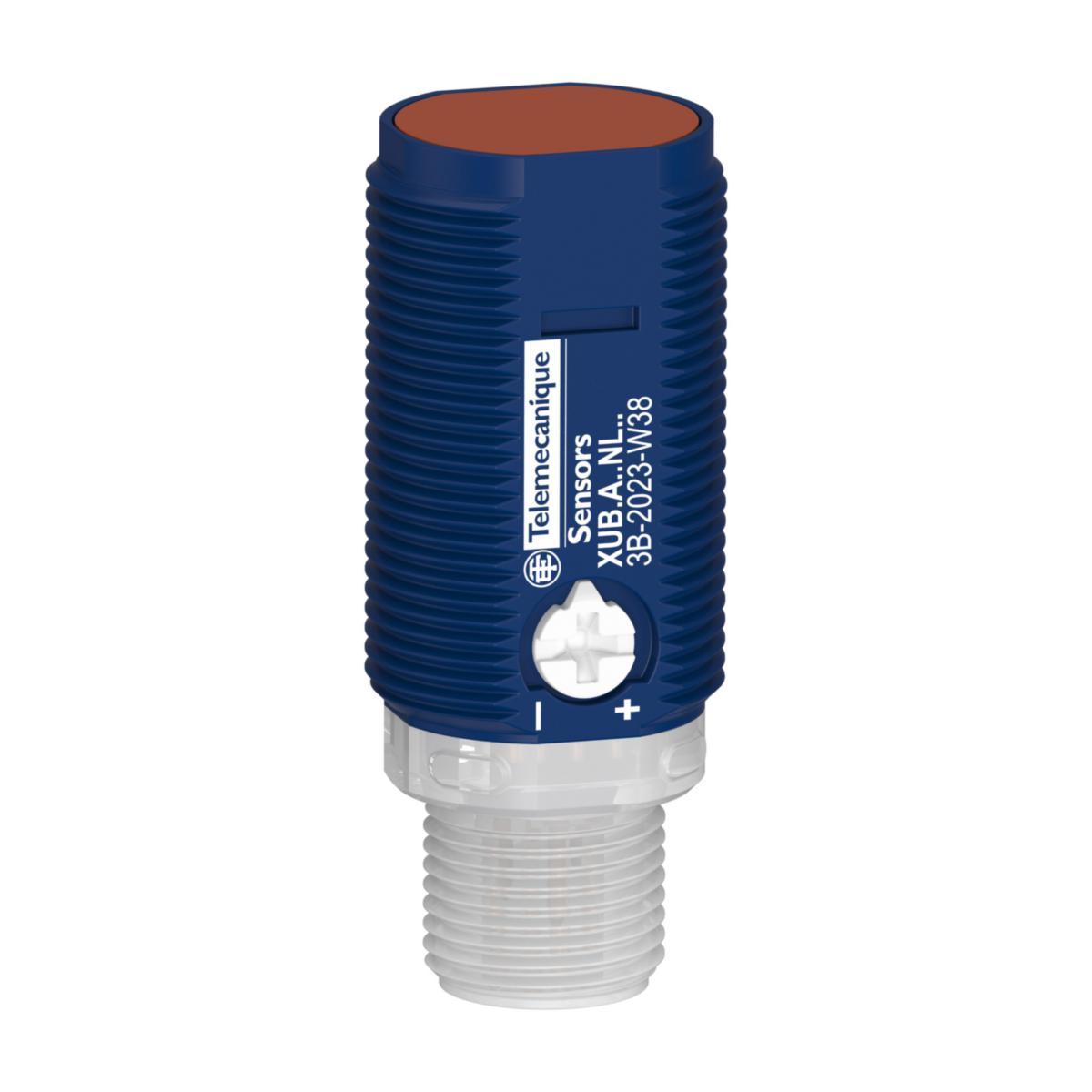

Photoelectric sensor XUB5
FOTOEL PLAS PROX L PNP M12
Article number: Suppl. article no:
3835415
XUB5APXNM12
to see price and stock
This product is part of the XUB range, an offering of cylindrical photoelectric sensors, Operating in diffuse mode, this cylindrical sensor uses a direct reflection system to detect objects,
- Article number: 3835415
- Suppl. article no: XUB5APXNM12
- Material class QP3020
- This is an alternative to item 3847145
Technical data
- Type: XUB5APXNM12
- Pre failure notice: No
- With time function: No
- Max. switching distance: 1000 mm
- Analogue output 4 mA ... 20 mA: No
- Analogue output -10 V ... +10 V: No
- With other analogue output: No
- Operating distance: 700 mm
- Analogue output 0 V ... 10 V: No
- Analogue output 0 mA ... 20 mA: No
- Number of semiconductor outputs with signalling function: 0
- Number of contact energized outputs with signalling function: 0
- Number of protected semiconductor outputs: 1
- Number of protected contact energized outputs: 0
- Diameter sensor: 18 mm
- Suitable for safety functions: No
- Max. output current: 100 mA
- Max. output current at protected output: 100 mA
- With communication interface AS-Interface: No
- With communication interface analogue: No
- With communication interface CANOpen: No
- With communication interface DeviceNet: No
- With communication interface Ethernet: No
- With communication interface INTERBUS: No
- With communication interface PROFIBUS: No
- With communication interface RS-232: No
- With communication interface RS-422: No
- With communication interface RS-485: No
- With communication interface SSD: No
- With communication interface SSI: No
- With restart blockage: No
- With monitoring function downstream switching devices: No
- Rated control supply voltage DC: 12-24 V
- Ambient temperature: -30-55 °C
- Switching frequency: 1000 Hz
- Response time: 0.5 ms
- Length of sensor: 44 mm
- Transmission range of the safety field: 700 m
- REACH Date: 2024-09-01
- REACH contains candidate substances: Bly | Decamethylcyclopentasiloxane (D5) | Octamethylcyclotetrasiloxane (D4)
- REACH Information obligation: Yes
