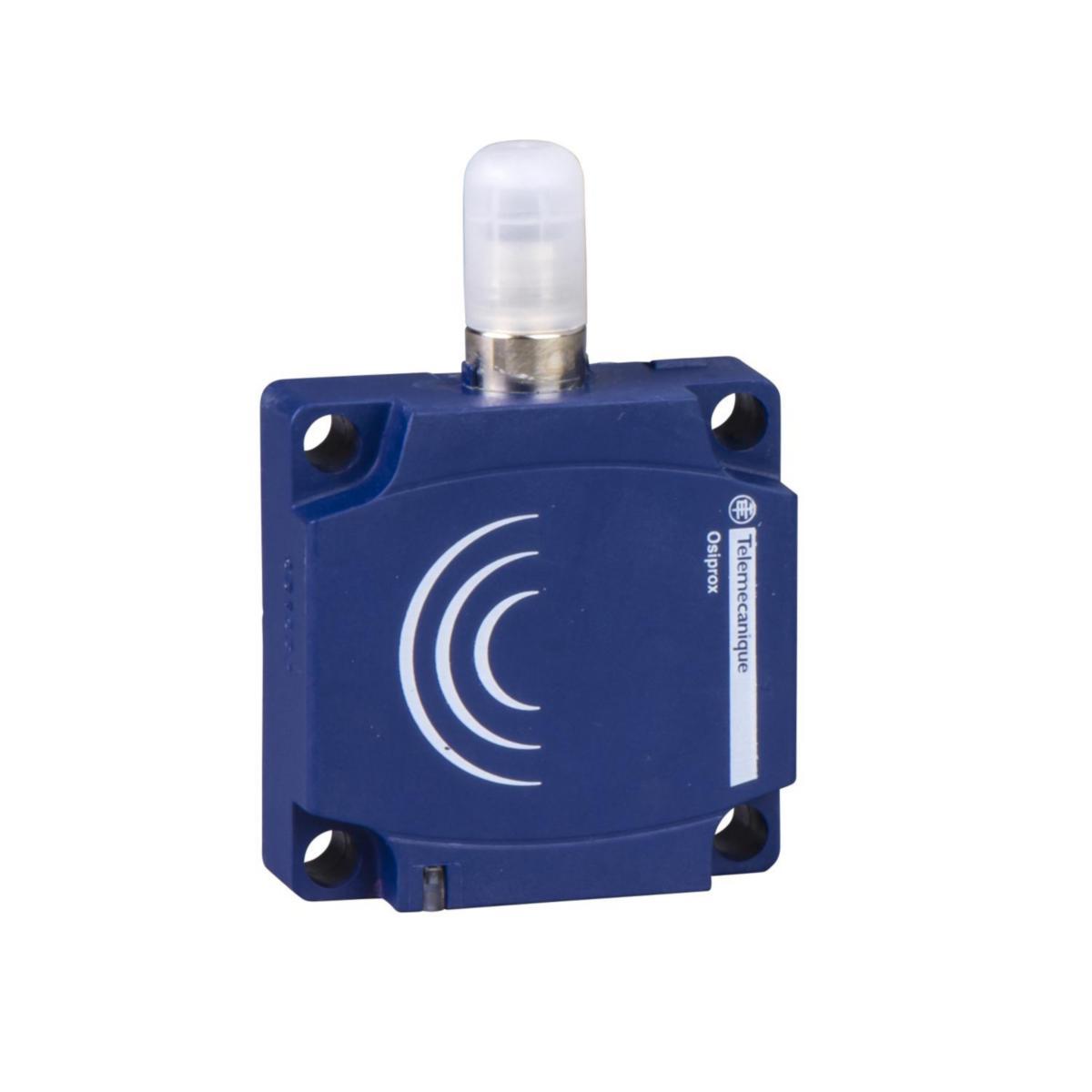

Inductive sensor Shape C XSC 3-wire

IND.SEN.FORMC SN=15MM NO PNP XS7C1A1PAM8

Article number:

3849592

Suppl. article no:

XS7C1A1PAM8

‌
‌
‌

‌
‌

to see price and stock

For general applications, can be installed flat recessed in metal.

Technical data

Packagin Size: 1 ST/44 ST
Type: XS7C1A1PAM8
Supply voltage: 12-24 V
Switching distance: 15 mm
Type of switching output: PNP/PNP
Type of switch function: Normally open contact
Diameter sensor: 0 mm
Length of sensor: 15 mm
Width sensor: 40 mm
Height of sensor: 40 mm
Housing material: Plastic
Type of electric connection: Connector M8
Coating housing: Other
Max. output current at protected output: 100 mA
Switching frequency: 1000 Hz
Construction type housing: Cuboid
Explosion safety category for dust: None
Explosion safety category for gas: None
Interference resistance to magnetic fields: Immune against magnetic DC-field
Type of interface: None
Type of interface for safety communication: None
Type of actuation: Metallic target
Rated control supply voltage DC: 12-24 V
Number of semiconductor outputs with signalling function: 1
SIL according to IEC 61508: None
Number of contact energized outputs with signalling function: 0
Number of protected semiconductor outputs: 1
Number of protected contact energized outputs: 0
Voltage type: AC/DC
With monitoring function downstream switching devices: No
Compression-resistant: No
Cascadable: No
Suitable for safety functions: No
Mechanical mounting condition for sensor: Concise
Performance level according to EN ISO 13849-1: None
REACH Date: 2022-07-20
REACH contains candidate substances: Bly | 1,2-dimetoxietan, Dimethyl Glycol, 1,2-dimethoxyethane
Dimensions: Form C
Information: Connection: M8 contact
REACH Information obligation: Yes
