Omron
Inductive sensor E2E NEXT
INDGIVARE M12 K SKÄ 4MM M12 4P E2E-X4B1T12-M1
Article number: Suppl. article no:
3833821
E2E-X4B1T12-M1
to see price and stock

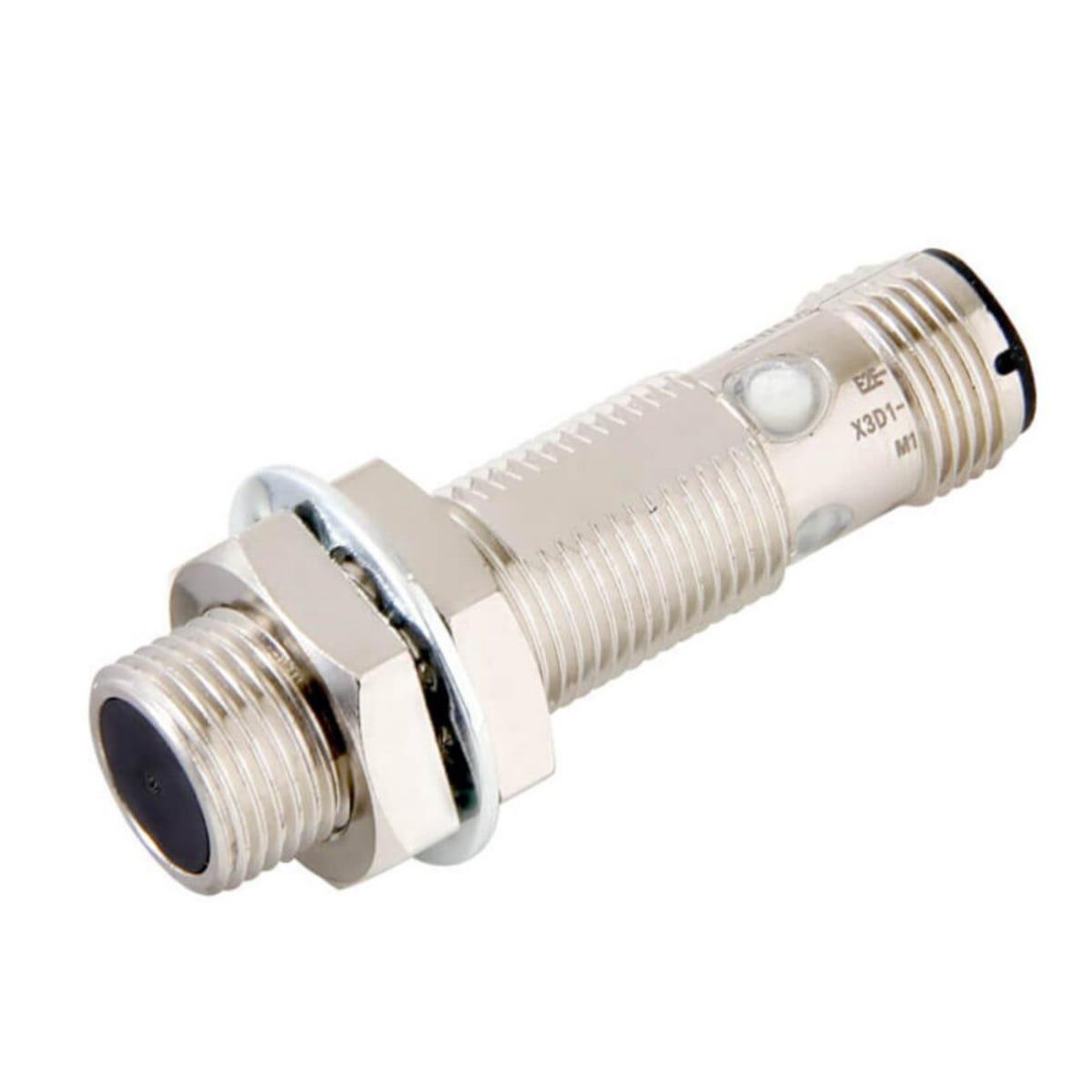

Cylindrical inductive sensor with nickel-plated brass housing. The E2E-X series has standard or extended sensing distances. All models are PNP and have IO link. Protection class IP67, IP69K and IP67G
- Article number: 3833821
- Suppl. article no: E2E-X4B1T12-M1
- Ean no: 4549734469036
- Material class QP070B
- This is an alternative to item 3859807
Technical data
- Type: E2E-X4B1T12-M1
- Supply voltage: 10-30 V
- Switching distance: 4 mm
- Type of switching output: PNP
- Type of switch function: Normally open contact
- Diameter sensor: 12 mm
- Length of sensor: 48 mm
- Housing material: Metal
- Type of electric connection: Connector M12
- Coating housing: Nickel-plated
- Switching frequency: 1 Hz
- Construction type housing: Cylinder, screw-thread
- Explosion safety category for dust: None
- Explosion safety category for gas: None
- Type of interface: Other
- Type of interface for safety communication: None
- Type of actuation: Metallic target
- Rated control supply voltage DC: 10-30 V
- Number of semiconductor outputs with signalling function: 1
- SIL according to IEC 61508: None
- Number of contact energized outputs with signalling function: 0
- Number of protected semiconductor outputs: 0
- Number of protected contact energized outputs: 0
- Voltage type: DC
- With monitoring function downstream switching devices: No
- Compression-resistant: No
- Cascadable: Yes
- Degree of protection (NEMA): Other
- Suitable for safety functions: No
- Mechanical mounting condition for sensor: Quasi-flat
- Performance level according to EN ISO 13849-1: None
- REACH Date: 2023-08-23
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
