Schneider Electric

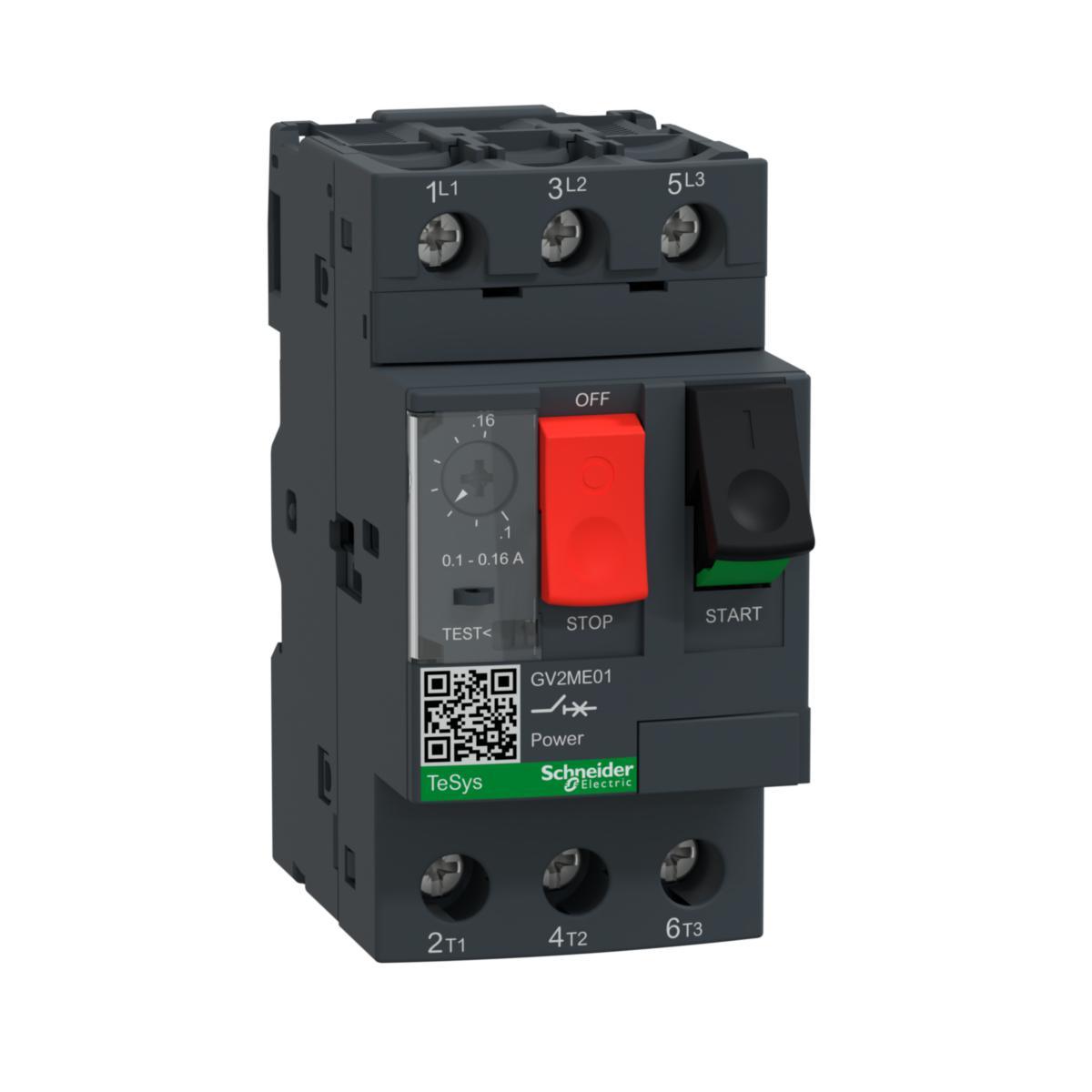

Motor starter protector switch GV2ME
MOTOR CIRCUIT BREAKER GV2ME01
Article number: Suppl. article no:
3116500
GV2ME01
to see price and stock
With thermo-magnetic release. Fitted with phase-error protection.
If the short-circuit current does not exceed the switching capacity, a fuse is not required.
Quick fixing for mounting on a DIN-rail or in cladding.
Placement independent.
If the short-circuit current does not exceed the switching capacity, a fuse is not required.
Quick fixing for mounting on a DIN-rail or in cladding.
Placement independent.
- Article number: 3116500
- Suppl. article no: GV2ME01
- Ean no: 3389110342925
- Material class QO021B
Technical data
- Packagin Size: 1 ST/24 ST/384 ST
- Type: GV2ME01
- Overload release current setting: 0.1-0.16 A
- Adjustment range undelayed short-circuit release: 1.5 A
- Rated short-circuit breaking capacity Icu at 400 V, AC: 100 kA
- Switch off technique: Thermomagnetic
- Rated operating voltage: 690 V
- Rated operation power at AC-3, 400 V: 0.037 kW
- Rated permanent current Iu: 0.16 A
- Phase failure sensitive: Yes
- Number of poles: 3
- Device construction: Complete device in housing
- With integrated auxiliary switch: No
- With integrated under voltage release: No
- Rated operation power at AC-3, 230 V: 0.018 kW
- Power loss: 2.5 W
- Degree of protection (IP): IP20
- Type of electrical connection of main circuit: Screw connection
- With thermal overload protection: Yes
- Type of control element: Push button
- Width: 44.5 mm
- Depth: 78.2 mm
- Height: 89 mm
- REACH Date: 2025-07-18
- REACH contains candidate substances: Bly
- Information: Motor power 400V: ~ kW
- Tripping current magnetic: 1,5 A
- Max preliminary fuse 400/415 V: * A
- REACH Information obligation: Yes
