Schneider Electric
Motor starter protector switch GV2L

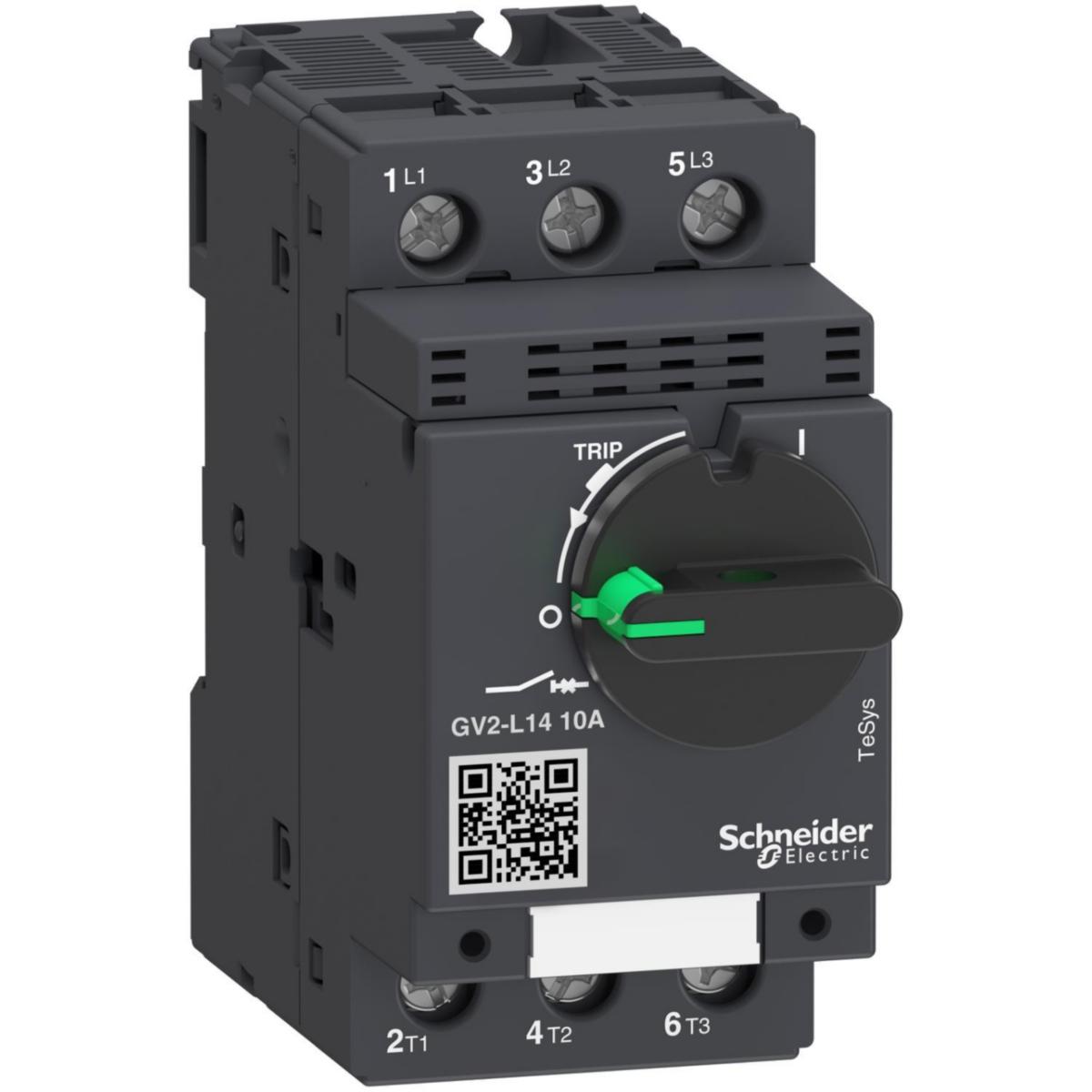

MAGNETIC CIRCUIT BREAKER 10A GV2L14
Article number: Suppl. article no:
3116084
GV2L14
to see price and stock
Motor protection switch with only magnetic protection. With the control knob.
- Article number: 3116084
- Suppl. article no: GV2L14
- Ean no: 3389110213270
- Material class QO211B
Technical data
- Type: GV2L14
- Design: Magnetic
- Overload release current setting: 0 A
- Adjustment range undelayed short-circuit release: 10 A
- Rated short-circuit breaking capacity Icu at 400 V, AC: 100 kA
- Switch off technique: Magnetic
- Rated operating voltage: 690 V
- Rated operation power at AC-3, 400 V: 4 kW
- Rated permanent current Iu: 10 A
- Phase failure sensitive: Yes
- Number of poles: 3
- Device construction: Complete device in housing
- With integrated auxiliary switch: No
- With integrated under voltage release: No
- Rated operation power at AC-3, 230 V: 2.2 kW
- Power loss: 1.8 W
- Degree of protection (IP): IP20
- Type of electrical connection of main circuit: Screw connection
- With thermal overload protection: No
- Type of control element: Turn button
- Width: 45 mm
- Depth: 97 mm
- Height: 89 mm
- REACH Date: 2025-07-18
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
