Schneider Electric

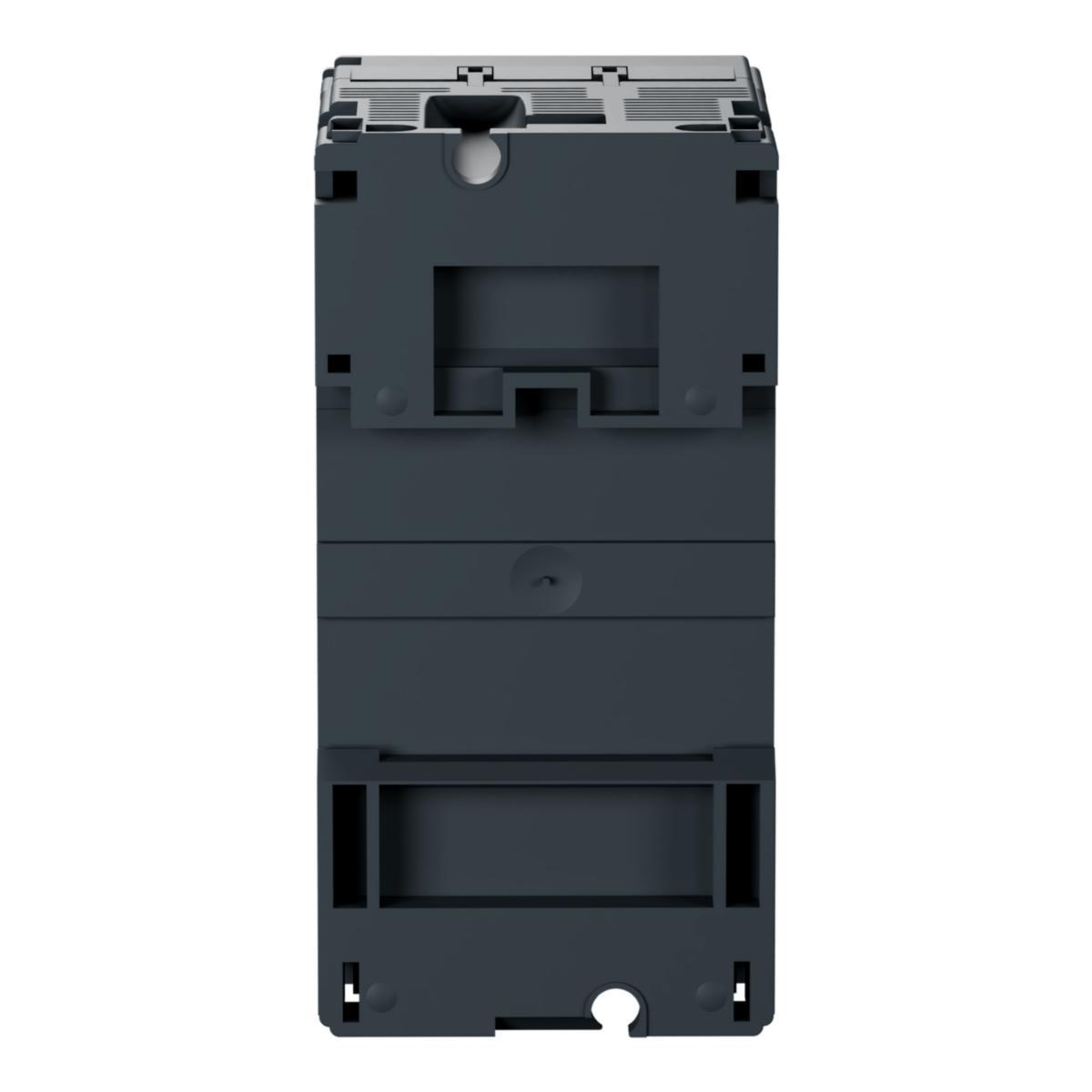

Motor starter protector switch GV2P
MOTOR CIRCUIT BREAKER GV2P07
Article number: Suppl. article no:
3116052
GV2P07
to see price and stock
With thermo-magnetic release. Fitted with phase-error protection.
If the short-circuit current does not exceed the switching capacity, a fuse is not required.
Quick fixing for mounting on a DIN-rail or in cladding. Placement independent.
If the short-circuit current does not exceed the switching capacity, a fuse is not required.
Quick fixing for mounting on a DIN-rail or in cladding. Placement independent.
- Article number: 3116052
- Suppl. article no: GV2P07
- Ean no: 3389110213461
- Material class QO021B
Technical data
- Packagin Size: 1 ST/20 ST/320 ST
- Type: GV2P07
- Overload release current setting: 1.6-2.5 A
- Adjustment range undelayed short-circuit release: 33.5 A
- Rated short-circuit breaking capacity Icu at 400 V, AC: 100 kA
- Switch off technique: Thermomagnetic
- Rated operating voltage: 690 V
- Rated operation power at AC-3, 400 V: 0.75 kW
- Rated permanent current Iu: 2.5 A
- Phase failure sensitive: Yes
- Number of poles: 3
- Device construction: Complete device in housing
- With integrated auxiliary switch: No
- With integrated under voltage release: No
- Rated operation power at AC-3, 230 V: 0.37 kW
- Power loss: 2.5 W
- Degree of protection (IP): IP20
- Type of electrical connection of main circuit: Screw connection
- With thermal overload protection: Yes
- Type of control element: Turn button
- Width: 44.5 mm
- Depth: 97 mm
- Height: 89 mm
- REACH Date: 2024-07-31
- REACH Information obligation: No
