ABB

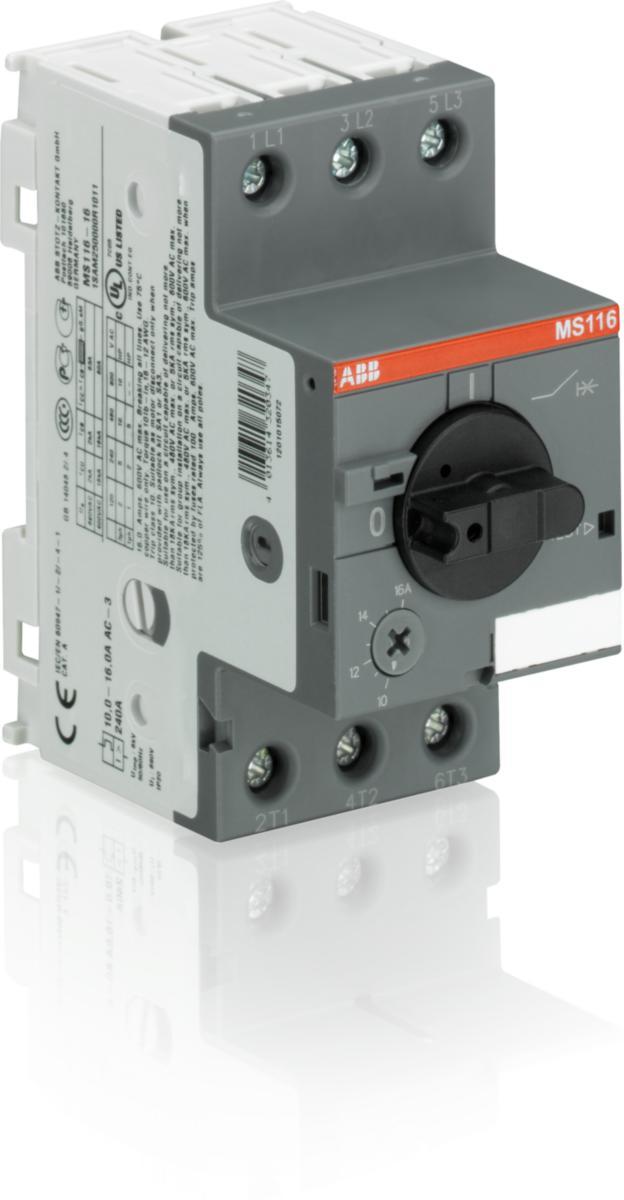

Motor starter protector switch MS 116
MANUAL MOTORSTARTER MS116 1SAM250000R1009
Article number: Suppl. article no:
3111946
1SAM250000R1009
to see price and stock
* = For current area 10-16A applies for 16kA
- Article number: 3111946
- Suppl. article no: 1SAM250000R1009
- Ean no: 4013614320323
- Material class QO020B
Technical data
- Type: MS 116-6.3
- Overload release current setting: 4-6.3 A
- Adjustment range undelayed short-circuit release: 78.8 A
- Rated short-circuit breaking capacity Icu at 400 V, AC: 75 kA
- Switch off technique: Thermomagnetic
- Rated operating voltage: 690 V
- Rated operation power at AC-3, 400 V: 2.2 kW
- Rated permanent current Iu: 6.3 A
- Phase failure sensitive: Yes
- Number of poles: 3
- Device construction: Complete device in housing
- With integrated auxiliary switch: No
- With integrated under voltage release: No
- Rated operation power at AC-3, 230 V: 2.2 kW
- Degree of protection (IP): IP20
- Type of electrical connection of main circuit: Screw connection
- With thermal overload protection: Yes
- Type of control element: Turn button
- Width: 45 mm
- Depth: 85.6 mm
- Height: 90 mm
- REACH Date: 2023-01-18
- Information: Motor power 400V: 0.1-16A A
Protection: 4.0-6.3 A - REACH Information obligation: No
