Eaton
Motor protection switch PKZM0-PI
Motorskydd 6,3-10A PI
Article number: Suppl. article no:
3110697
Y7-199157
to see price and stock

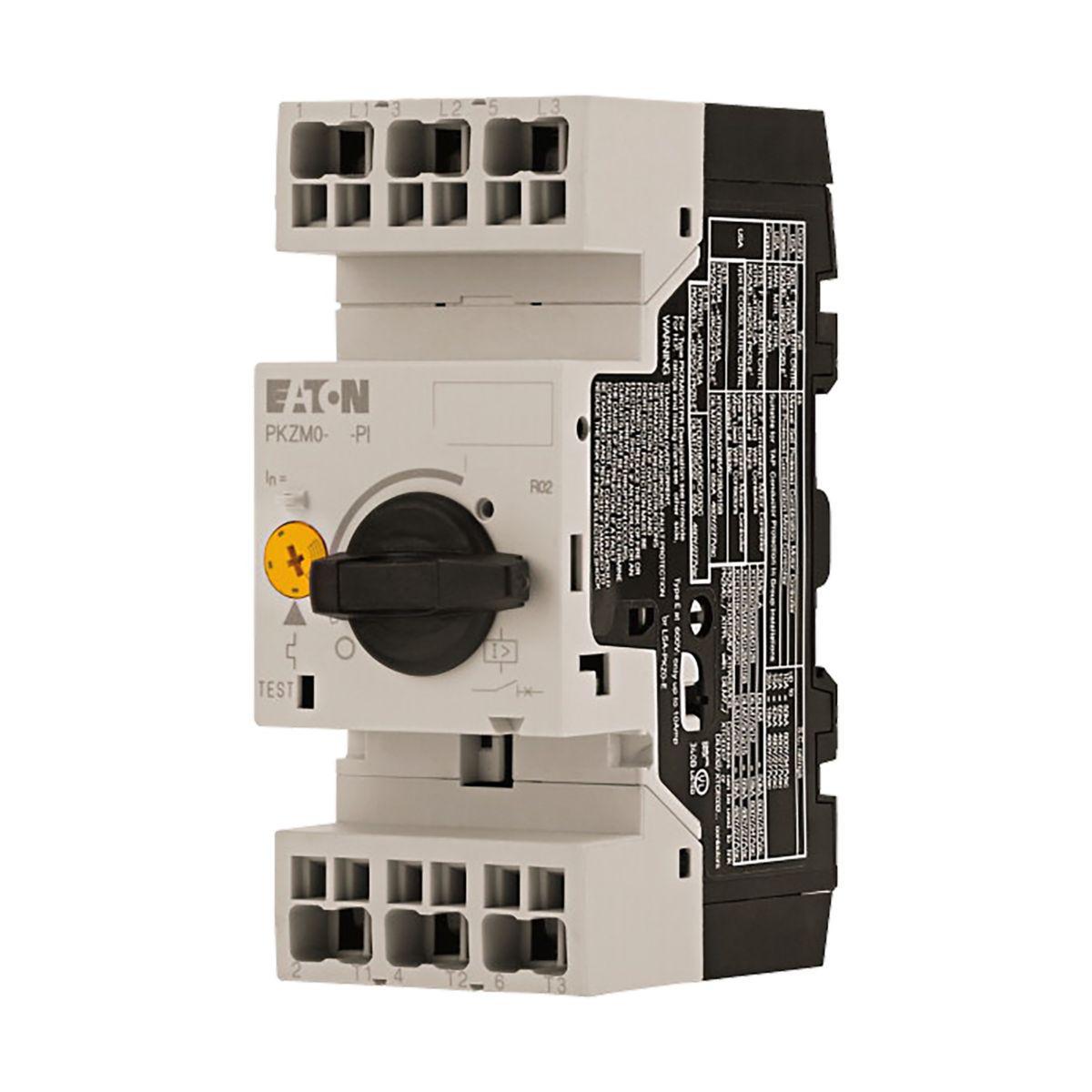

Motor protection switch PKZM0-PI
- Article number: 3110697
- Suppl. article no: Y7-199157
- Ean no: 4015081972418
- Material class QO0240
Technical data
- Packagin Size: 1 PCS/60 PCS
- Type: PKZM0-10-PI
- Overload release current setting: 10 A
- Adjustment range undelayed short-circuit release: 155 A
- Rated short-circuit breaking capacity Icu at 400 V, AC: 150 kA
- Switch off technique: Thermomagnetic
- Rated operating voltage: 690 V
- Rated operation power at AC-3, 400 V: 4 kW
- Rated permanent current Iu: 10 A
- Phase failure sensitive: Yes
- Number of poles: 3
- Device construction: Built-in device fixed built-in technique
- With integrated auxiliary switch: No
- With integrated under voltage release: No
- Rated operation power at AC-3, 230 V: 2.2 kW
- Degree of protection (IP): IP20
- Type of electrical connection of main circuit: Spring clamp connection
- With thermal overload protection: No
- Type of control element: Turn button
- Width: 45 mm
- Depth: 75 mm
- Height: 109 mm
- REACH Date: 2023-08-31
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
