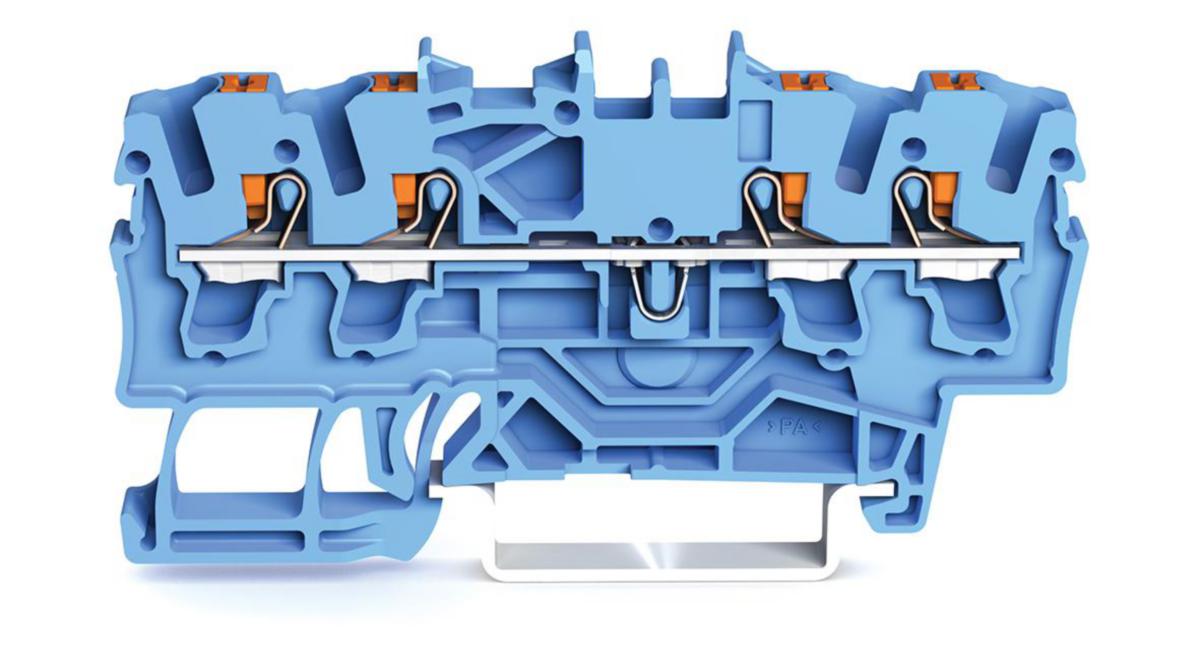

Connection terminal TopJob S 2202
4-pol through terminal block
Article number: Suppl. article no:
2928273
2202-1404
to see price and stock
Terminal block with push button, 2.5 mm²
- Article number: 2928273
- Suppl. article no: 2202-1404
- Ean no: 4055143713894
- Material class QN0820
Technical data
- Packagin Size: 1 PCS/100 PCS
- Type: 2202-1404
- Connectable conductor cross section fine-strand without cable end sleeve: 0.25-4 mm²
- Colour: Blue
- Rated current In: 24 A
- Rated voltage: 800 V
- Type of electrical connection 2: Spring clamp connection
- Number of levels: 1
- Number of clamp positions per level: 4
- Mounting method: DIN rail (top hat rail) 35 mm
- Operating temperature: 105 °C
- Inflammability class of insulation material according to UL 94: V0
- Width: 5.2 mm
- Depth: 32.9 mm
- Height: 69.9 mm
- Explosion-tested version 'Ex e': Yes
- Closing plate required: Yes
- Internally connected stages: No
- Connectable conductor cross section fine-strand with cable end sleeve: 0.75-2.5 mm²
- Connectable conductor cross section solid-core: 0.75-4 mm²
- Connectable conductor cross section multi-wired: 0.25-2.5 mm²
- Material insulation body: Thermoplastic
- Type of electrical connection 1: Spring clamp connection
- REACH Date: 2023-02-10
- REACH Information obligation: No
