Weidmüller

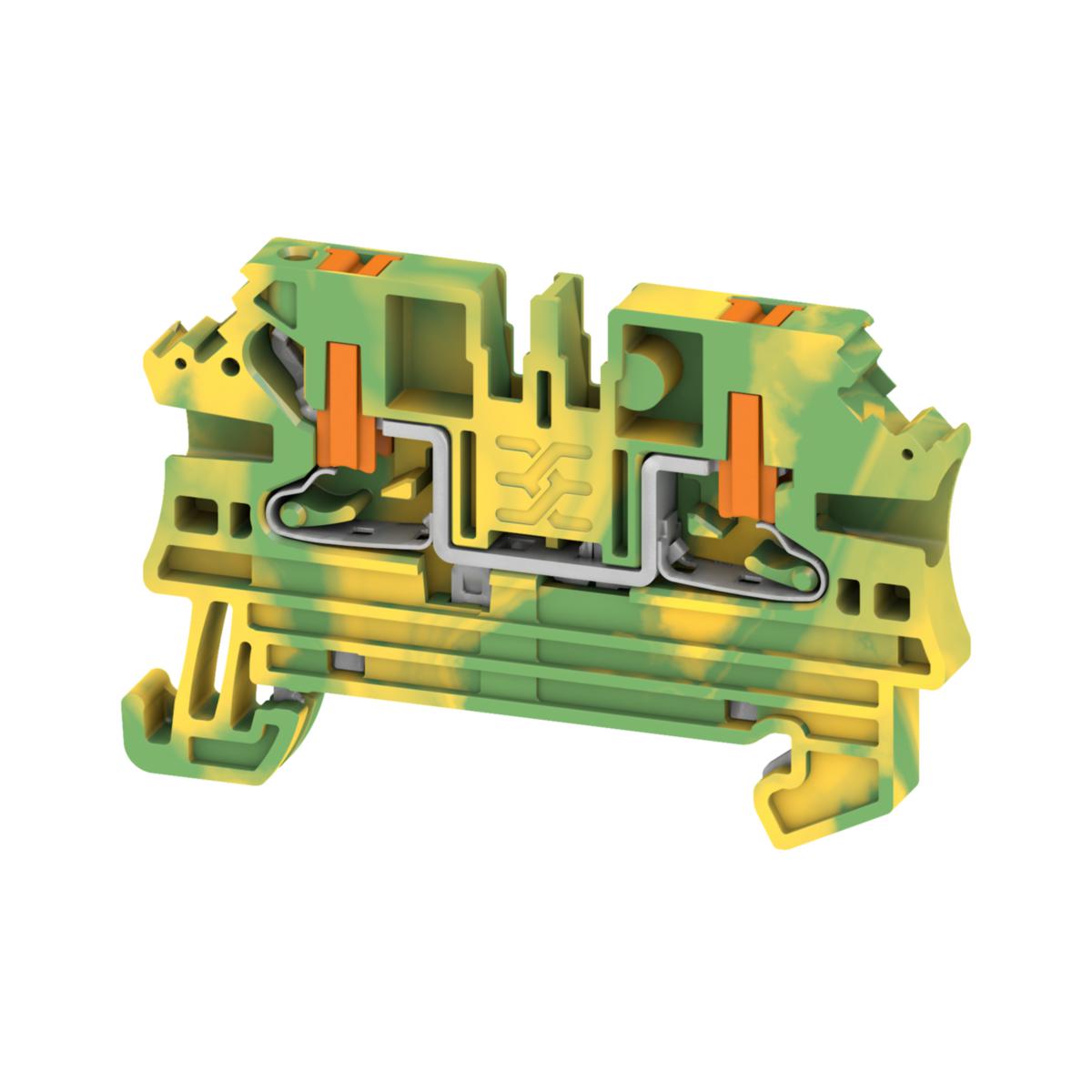

Protective conductor terminal block AL2C
TERMINAL AL2C 2.5 PE
Article number: Suppl. article no:
2920280
2847590000
to see price and stock
Terminal block for connecting the protective earth conductor to the base plate (earth). Hardened steel withstands mechanical forces, tin-plated copper provides the best conductivity.
- Article number: 2920280
- Suppl. article no: 2847590000
- Ean no: 4064675457138
- Material class QN0200
Technical data
- Packagin Size: 100 PCS
- Type: AL2C 2.5 PE
- Connectable conductor cross section multi-wired: 0.5-2.5 mm²
- Colour: Green/yellow
- Type of electrical connection 1: Spring clamp connection
- Number of levels: 1
- Number of clamp positions per level: 2
- Mounting method: DIN rail (top hat rail) 35 mm
- Material insulation body: Thermoplastic
- Operating temperature: -60-130 °C
- Inflammability class of insulation material according to UL 94: V0
- Connectable conductor cross section fine-strand without cable end sleeve: 0.5-2.5 mm²
- Connectable conductor cross section fine-strand with cable end sleeve: 0.5-2.5 mm²
- Connectable conductor cross section solid-core: 0.5-2.5 mm²
- Closing plate required: Yes
- Width: 5.1 mm
- Depth: 36.5 mm
- Height: 57 mm
- REACH Date: 2025-11-06
- REACH Information obligation: No
