Weidmüller

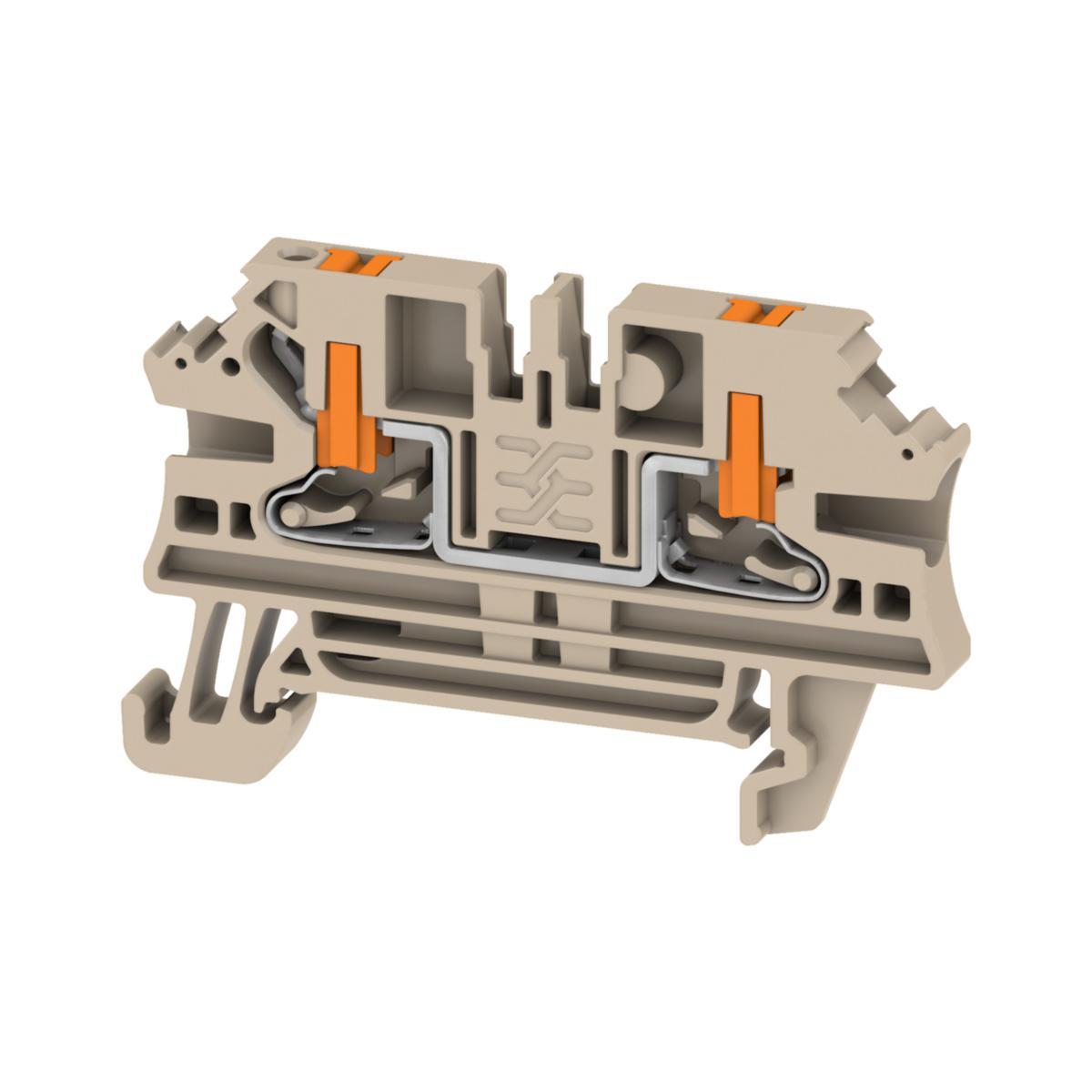

Feed-through terminal block AL2C
TERMINAL AL2C 2.5
Article number: Suppl. article no:
2920278
2847200000
to see price and stock
Terminal block for connecting cable conductors with permanent and secure contact. Hardened steel resists mechanical forces, tin-plated copper provides the best conductivity.
- Article number: 2920278
- Suppl. article no: 2847200000
- Ean no: 4064675456643
- Material class QN0200
Technical data
- Packagin Size: 100 PCS
- Type: AL2C 2.5
- Connectable conductor cross section fine-strand without cable end sleeve: 0.5-2.5 mm²
- Colour: Beige
- Rated current In: 24 A
- Rated voltage: 800 V
- Number of levels: 1
- Number of clamp positions per level: 2
- Mounting method: DIN rail (top hat rail) 35 mm
- Operating temperature: -60-130 °C
- Inflammability class of insulation material according to UL 94: V0
- Width: 5.1 mm
- Depth: 36.5 mm
- Height: 57 mm
- Closing plate required: Yes
- Connectable conductor cross section fine-strand with cable end sleeve: 0.5-2.5 mm²
- Connectable conductor cross section solid-core: 0.5-2.5 mm²
- Connectable conductor cross section multi-wired: 0.5-2.5 mm²
- Material insulation body: Thermoplastic
- REACH Date: 2025-11-06
- REACH Information obligation: No
