Weidmüller
Indicator board AIO

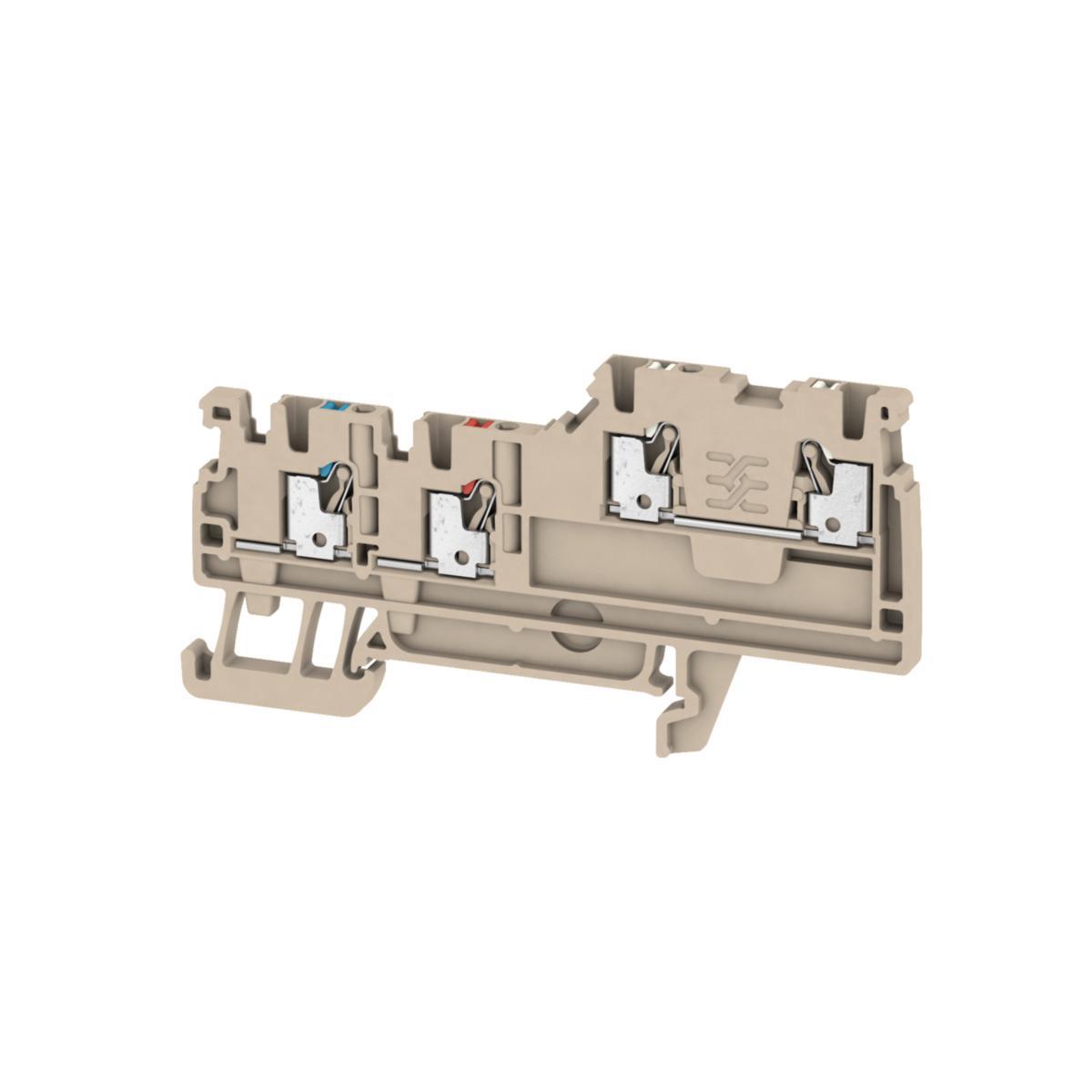

INDICATOR BOARD AIO21 1.5 SI
Article number: Suppl. article no:
2919164
1992260000
to see price and stock
The innovative PUSH IN technology reduces the time you need for wiring to a minimum. Direct connection technology guarantees high pull-out forces for conductors and easy handling for all types of conductors.
- Article number: 2919164
- Suppl. article no: 1992260000
- Ean no: 4050118377446
- Material class QN0200
Technical data
- Packagin Size: 1 PCS/100 PCS
- Type: AIO21 1.5 SI
- Connectable conductor cross section solid-core: 0.5-1.5 mm²
- Connectable conductor cross section fine-strand without cable end sleeve: 0.5-1.5 mm²
- Connectable conductor cross section fine-strand with cable end sleeve: 0.5-1.5 mm²
- Connectable conductor cross section multi-wired: 0.5-1.5 mm²
- Connection position: Top
- Number of clamp positions per level: 2
- Number of levels: 2
- Colour: Beige
- Closing plate required: Yes
- Width/grid dimension: 3.5 mm
- Operating temperature: -60-130 °C
- Inflammability class of insulation material according to UL94: V0
- Internally connected stages: No
- Length: 42
- Material insulation body: Thermoplastic
- With PE connection: No
- Mounting method: DIN rail (top hat rail) 35 mm
- Rated voltage: 250 V
- Rated current In: 13.5 A
- Type of electrical connection 1: Plug-in connection
- Width: 3.5 mm
- Depth: 42 mm
- Height: 80 mm
- REACH Date: 2022-10-28
- REACH Information obligation: No
