Weidmüller
Earth and protective conductor terminals type WPE

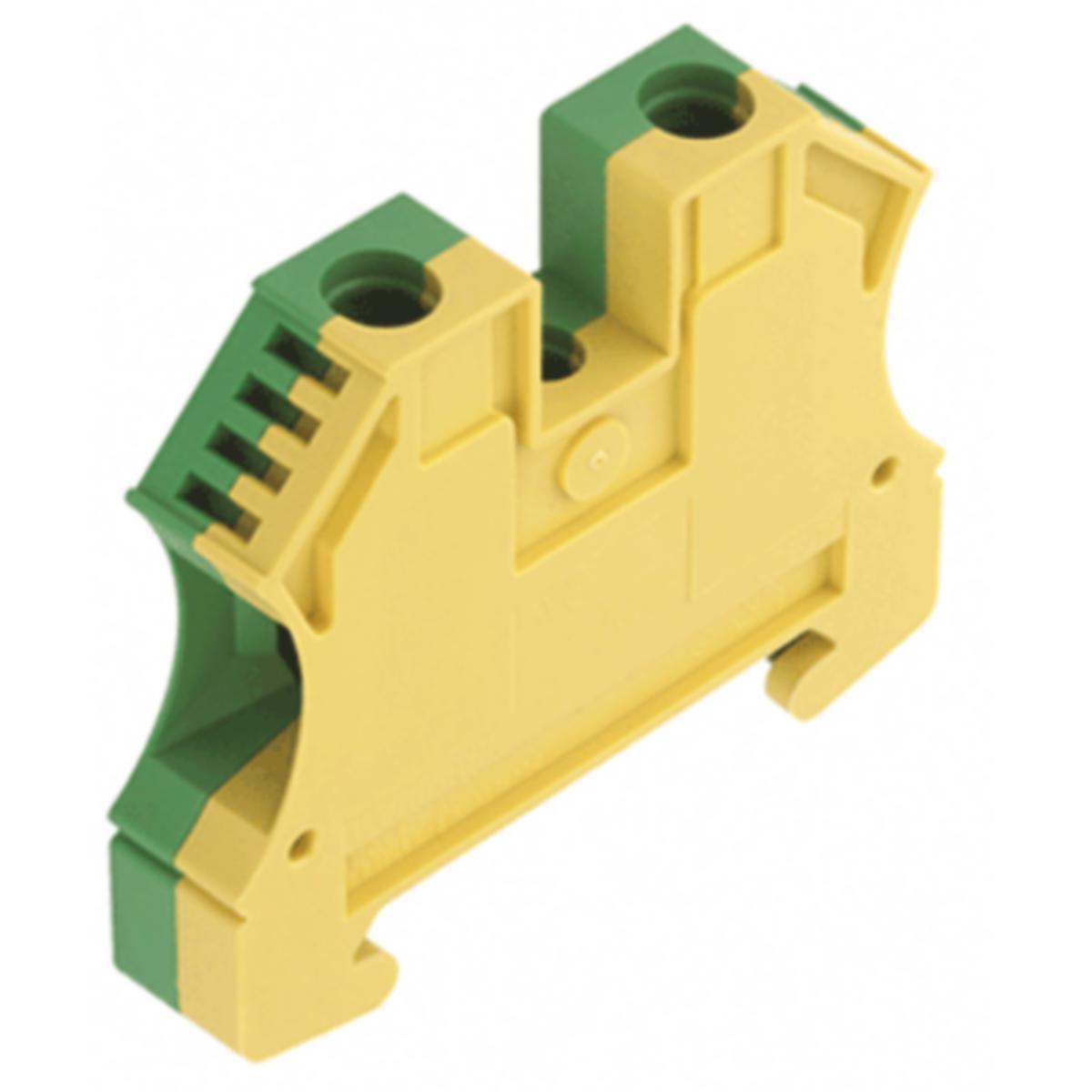

TERMINAL WPE 10 GREEN/YW 1010300000
Article number: Suppl. article no:
2919685
1010300000
to see price and stock
Earth and protection line terminals. Semko-approved.
- Article number: 2919685
- Suppl. article no: 1010300000
- Ean no: 4008190031251
- Material class QN0200
Technical data
- Packagin Size: 1 PCS/50 PCS/200 PCS
- Type: WPE 10
- PEN function possible: No
- Connectable conductor cross section fine-strand without cable end sleeve: 1.5-16 mm²
- Width/grid dimension: 9.9 mm
- Type of electrical connection 1: Screw connection
- Length: 56 mm
- Connection position: Sideways
- Number of levels: 1
- Connectable conductor cross section fine-strand with cable end sleeve: 1.5-16 mm²
- Connectable conductor cross section solid-core: 1.5-16 mm²
- Connectable conductor cross section multi-wired: 1.5-16 mm²
- Number of clamp positions per level: 2
- Mounting method: DIN rail (top hat rail) 35 mm
- Material insulation body: Thermoplastic
- Operating temperature: -60-130 °C
- Inflammability class of insulation material according to UL94: V0
- Closing plate required: No
- Colour: Green/yellow
- Width: 9.9 mm
- Depth: 46.5 mm
- Height: 56 mm
- REACH Date: 2022-10-28
- REACH Information obligation: No
